VG4 Modular Camera Series Installing Roof Parapet and Pipe Mounts | en 61
Bosch Security Systems, Inc. Installation Manual F.01U.162.025 | 6.0 | 2010.03
3. Remove the Camera Module from its packing box, and remove the protective plastic bag.
4. Align the yellow locking tab on the Camera Module base to the (yellow) label on the CPU
board, and gently seat the camera onto its connector.

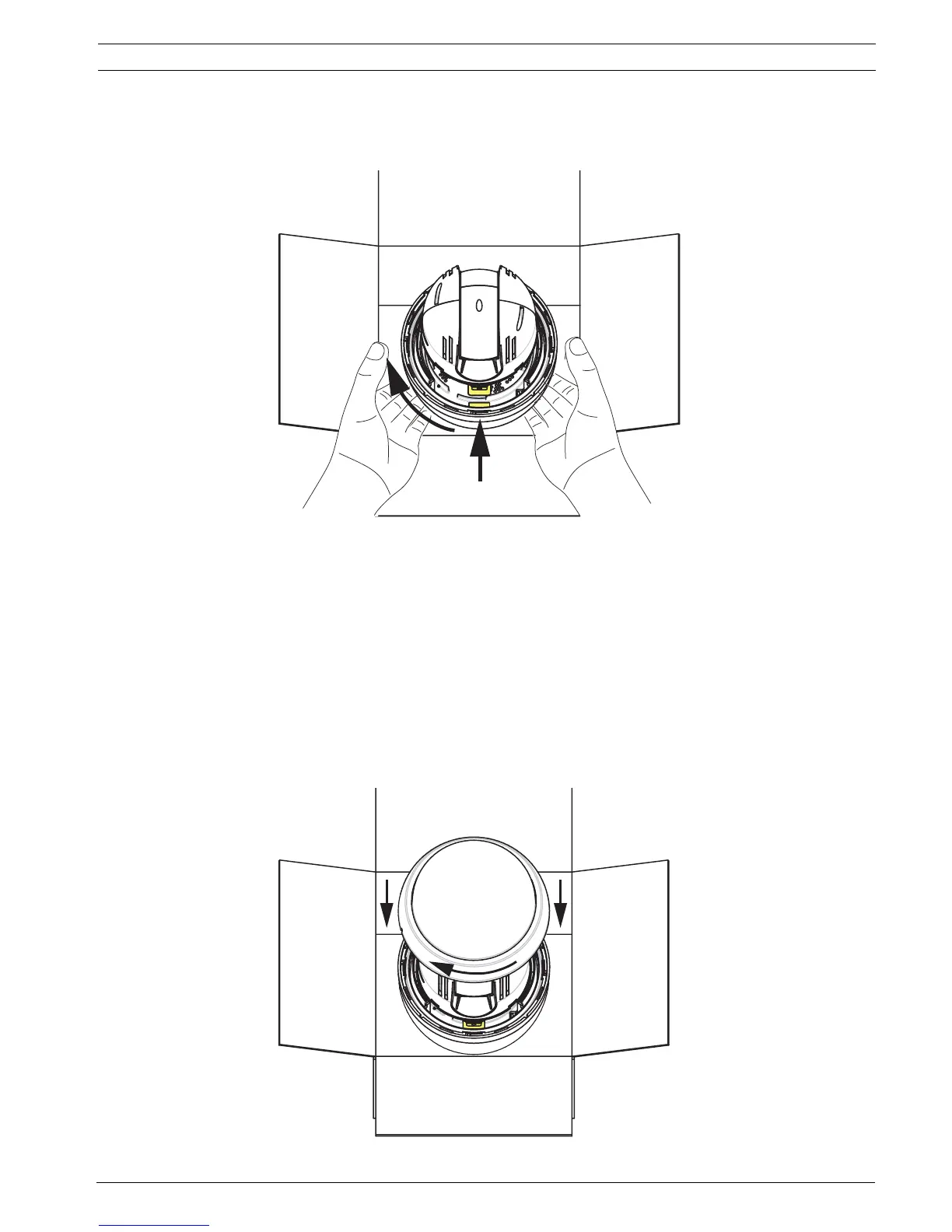

Figure 3.13 Align Lock Tab and Install Camera Module
5. Rotate the base of the Camera Module clockwise (approximately 60 degrees) until the
yellow tab locks in place.
Note: The Camera Module must be able to rotate freely when installed in the housing.
6. If you are installing a VG4 Pressurized Environmental Housing, skip to
Section 3.11 Installing the Pressurized Environmental Housing, page 65. You will attach the
bubble to the housing in a later step.
If you are installing a normal VG4 AutoDome, continue with step 7.
7. Remove the bubble from its packing box, and then remove the protective plastic bag.
8. Place the Bubble Assembly over the Camera Module. Using both hands firmly rotate the
Bubble Assembly clockwise (approximately 1/8 turn) until it locks in place. (An audible
click can be heard when it locks.)
Figure 3.14 Attach the Pendant Bubble Assembly
To Next Page
