50 en | Installing Roof Parapet and Pipe Mounts VG4 Modular Camera Series
F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.

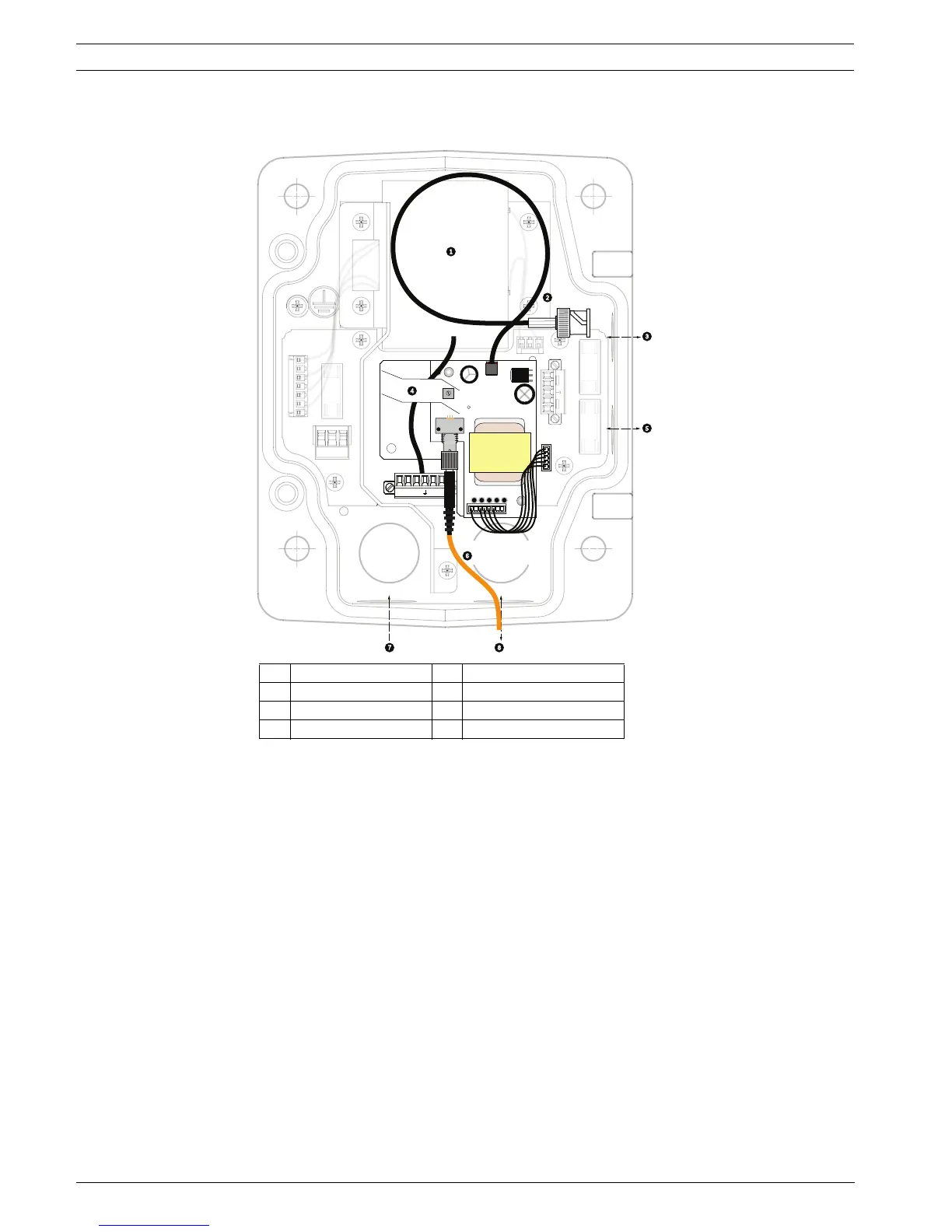

3. Route the control wires from the Power Supply to the Pipe Interface Board. Then attach
the supplied six (6) pin control data connector to the wires in the Power Supply Box.
1Transformer 5In/Out
2 BNC to Dome 6 ST Connector (Fiber)
3In/Out 7Power In
4 From Arm Harness 8 Data In/Out
(GND)
GND TXD
RXD 
C+
C-
(
FUSE)
(
FUSE)
(
FUSE
)
24V N
C
24V
HTR DOME
