64 en | Installing Roof Parapet and Pipe Mounts VG4 Modular Camera Series
F.01U.162.025 | 6.0 | 2010.03 Installation Manual Bosch Security Systems, Inc.
Removing the Pendant Bubble
To service the AutoDome Pendant, use the following procedure to remove the Bubble:
1. Using both hands, apply a firm counterclockwise (looking up at the dome) rotational
force on the Pendant Bubble Assembly to set the bubble latch.

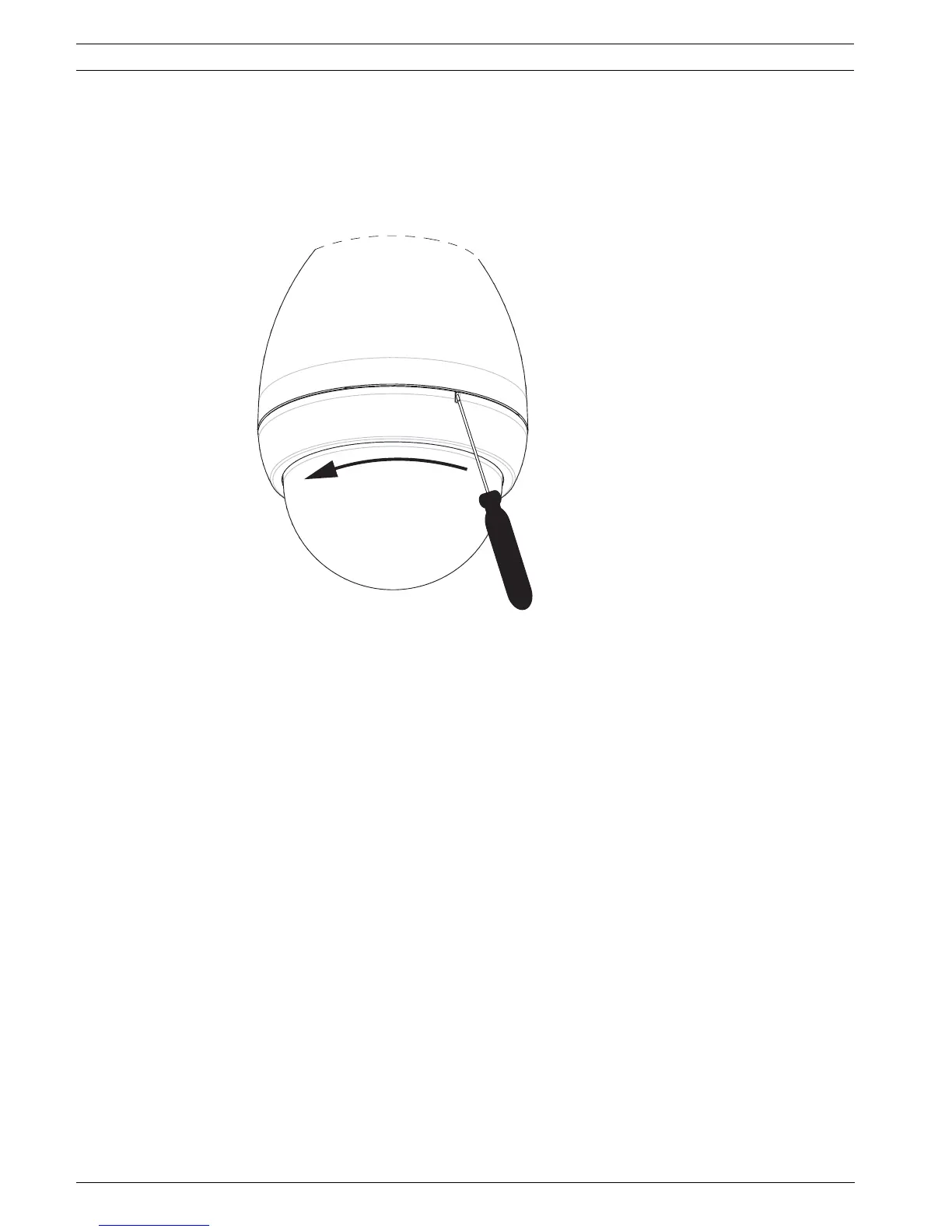

2. Insert a small (2 mm) straight blade screw driver into the release opening in the bubble
trim-ring to release the lock, and then remove the screwdriver.
Figure 3.16 Pendant Bubble Release Opening
3. Firmly rotate the bubble counterclockwise approximately 20 degrees until the bubble
assembly releases from the Pendant Housing.
