3 Math channels are required to calculate one RH.
Td = AI1, analog input for dry bulb temperature (PT100)
Tw =AI2, analog input for wet bulb temperature (PT100)

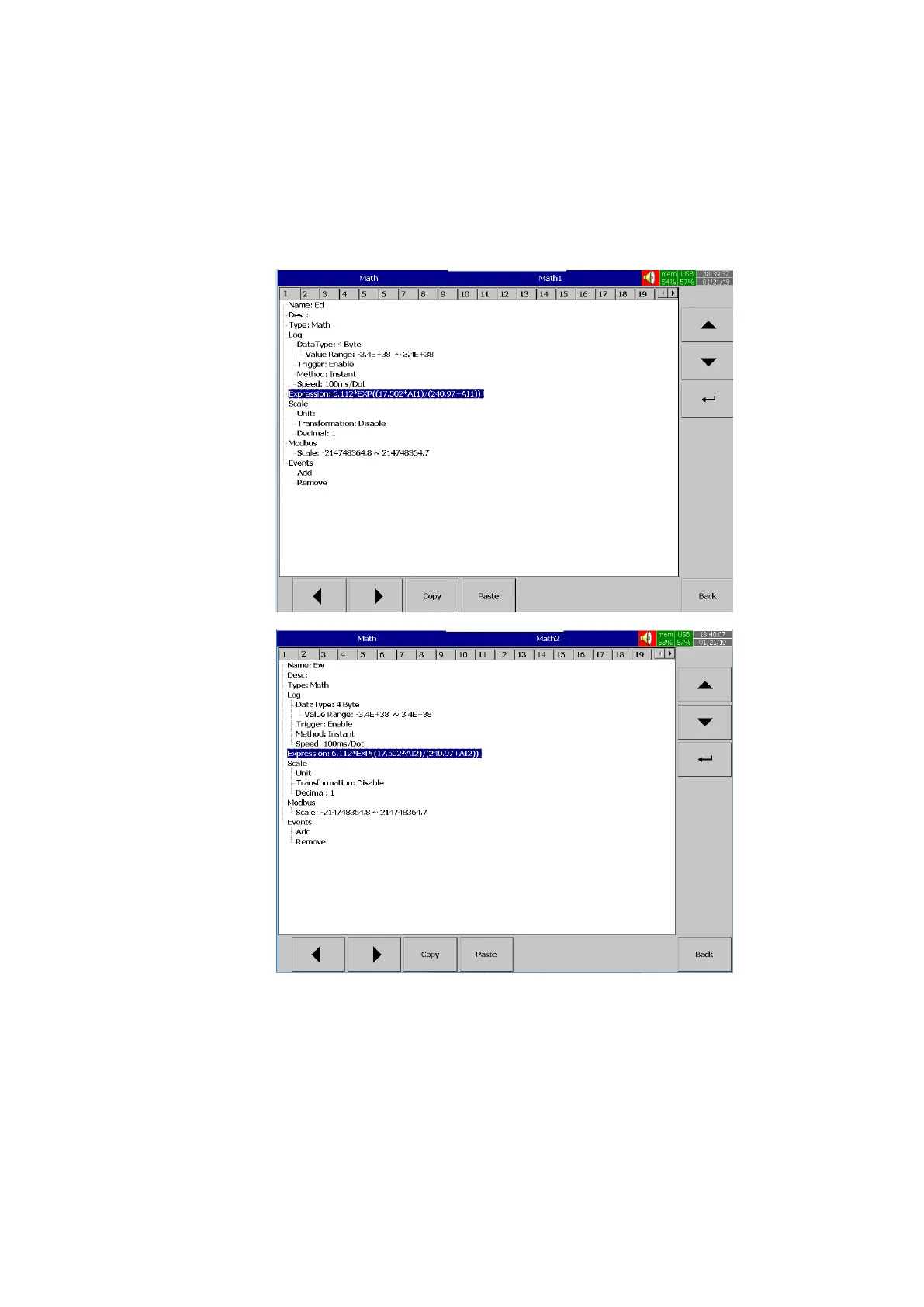

Math1 = Ed = 6.112*EXP((17.502*AI1)/(240.97+AI1))
Math2 = Ew= 6.112*EXP((17.502*AI2)/(240.97+AI2))
Math3=RH= (Math2-(0.66875*(1+0.00115*AI2)*(AI1-AI2))/Math1)*100
