2.3.2 Relay Output card (RO206)

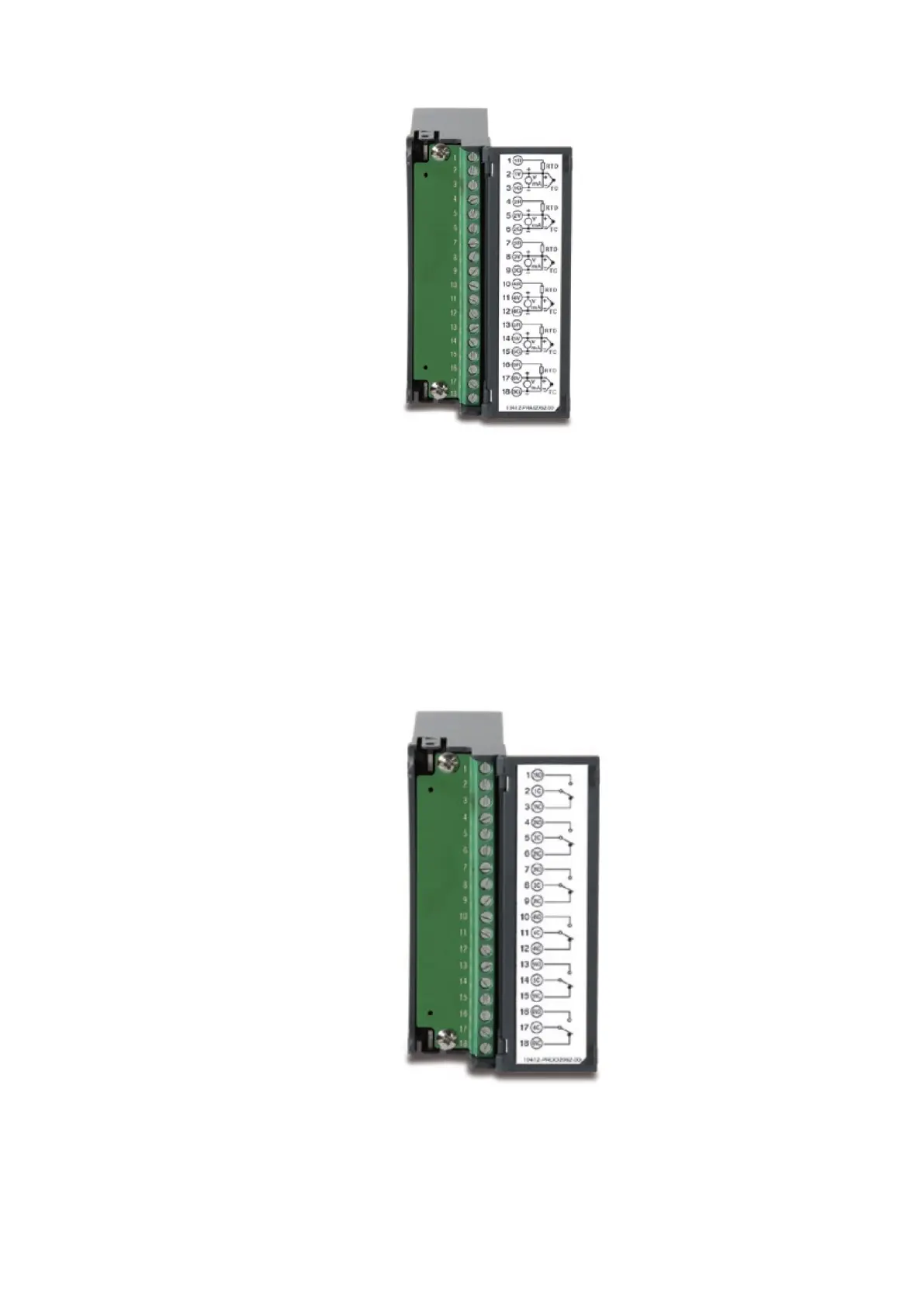

The relay output card RO206 includes 6 relays rated 5 Amp/240 VAC each. Plug the card into a

rear slot and power on the recorder. The recorder will automatically detect the card and display the output

type and its location in a specific slot in System Info mode while doing the configuration.

The configuration Menu can be reached by pressing Menu and then pressing more and then

pressing Config key. It will display a tree type configuration layout for easy user configuration. By using

Up/Down Key and Enter Key, DO configuration window can be reached. In this window the user can

configure the DO parameters. The user can select the desired output type and other parameters for Relay

output in this window. The item "Reverse" is to reverse the output status.
