Page 204 of 479
.

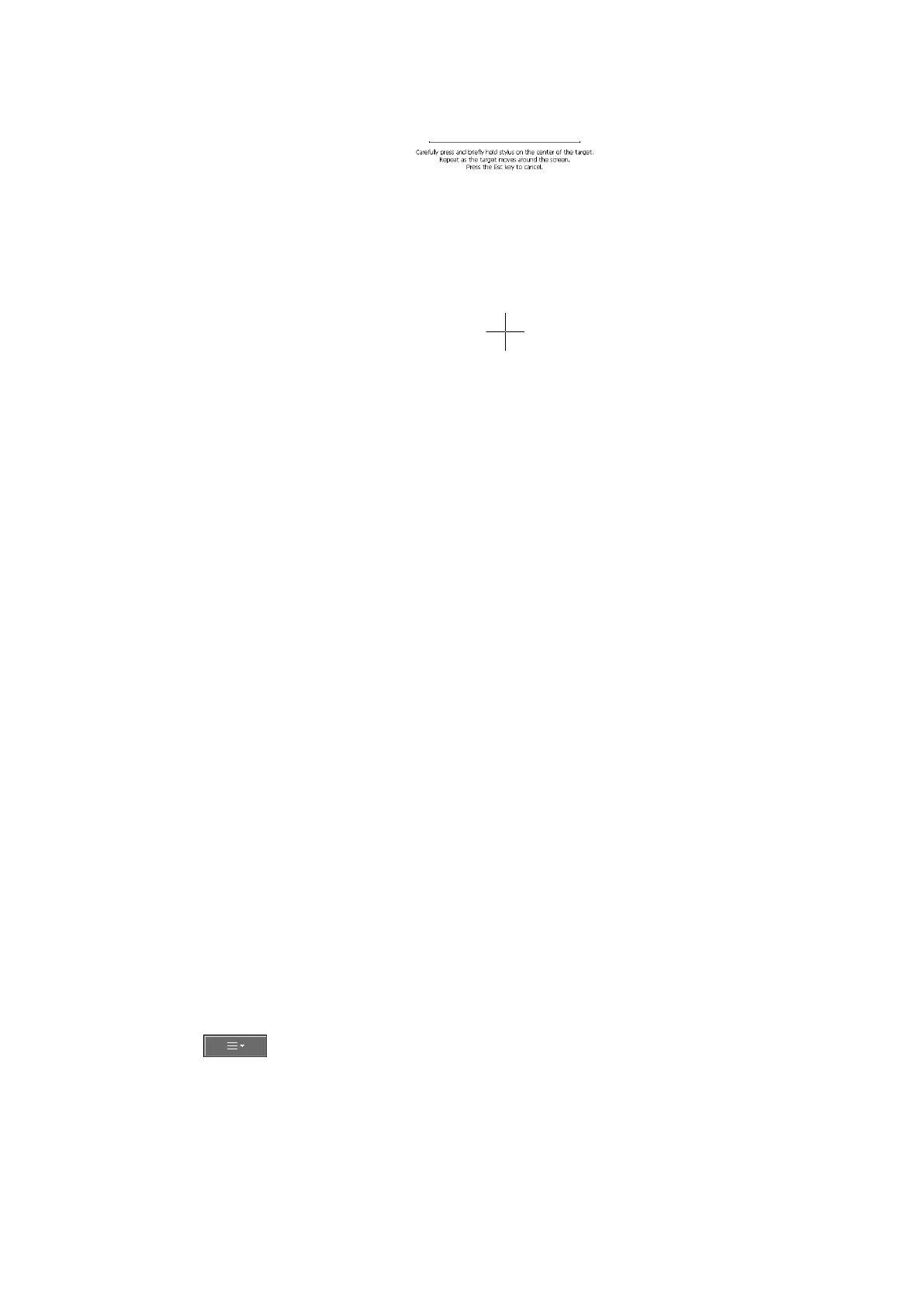

2. A “+” symbol appears in the center of the LCD screen. Carefully press using a stylus or
finger on the center of the target.
3. Repeat this procedure as the target moves around the screen. Once the ‘+’symbol
disappears, touch the screen to complete the screen calibration.
By pressing the ESC key from the USB key board connected to the recorder can exit the screen
calibration screen. The screen calibration is necessary to achieve proper operation on the screen.
5.14.2.1 Batch Example-1
The operator wants to start a batch every day at 8.00am and stop the batch at 12.00am.
Configuration
Timer1
Type: Daily Action: Enable
Time – Hour: 8 Min: 0 Sec: 1
Job1: Start
Job2: No Action
Timer2
Type: Daily Action: Enable
Time – Hour: 12 Min: 0 Sec: 1
Job1: Pause
Job2: No Action
5.14.2.1.1 How to view batch data in Recorder
Press on (Menu)-History-Page1
Press “Search”, select required Batch and press “Ok”
Batch details including lot number can be archived by pressing soft key “Batch”
