The new generation PR series paperless recorder has many outstanding features to meet the
industry requirements.
1.2 Features
1.2.1 Hardware
The PR series hardware has the following unique features.

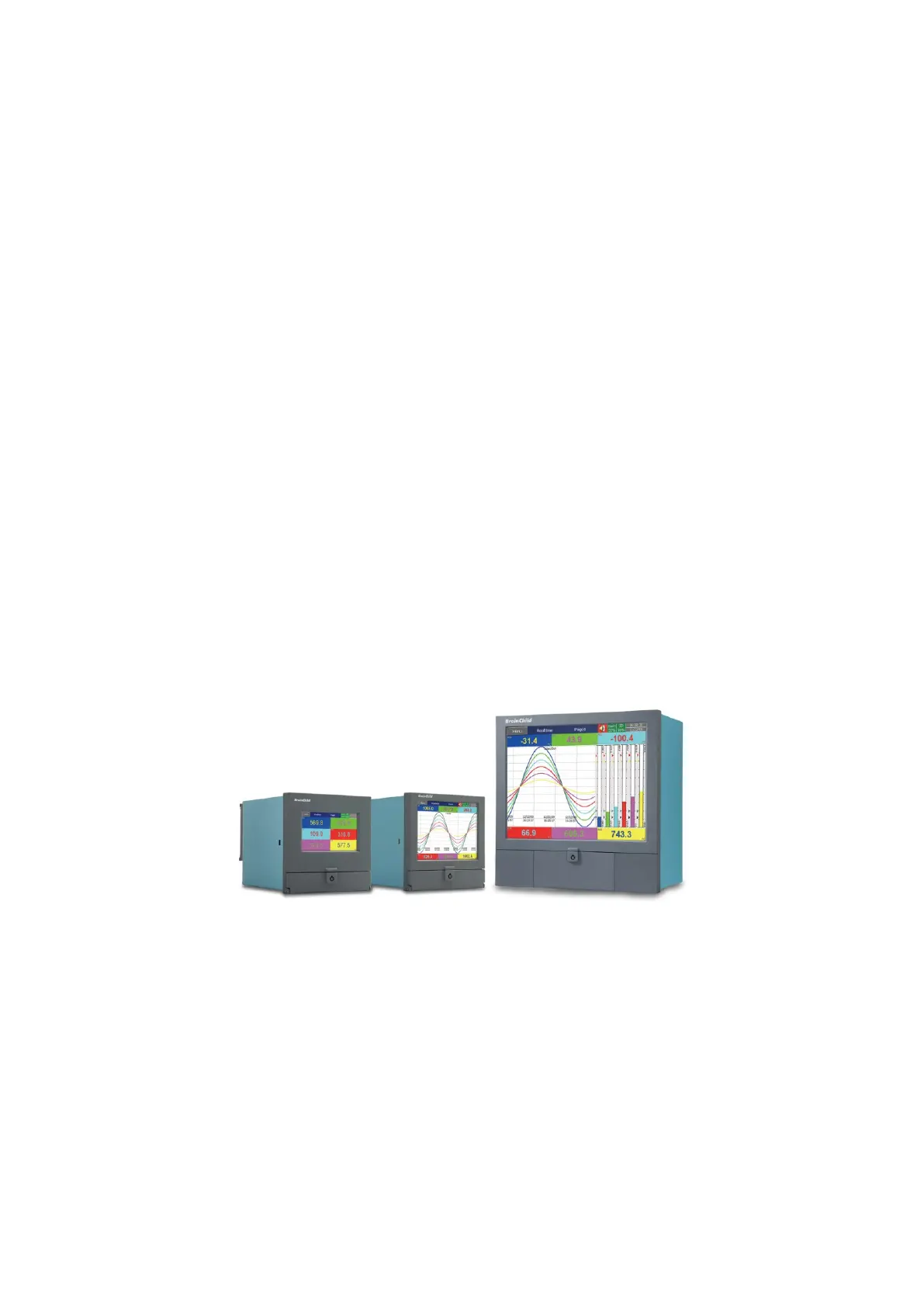

❖ Available in three display sizes 4.3”, 5.6〞and 12.1”
❖ PR10, with a 4.3” display, with 3 or 6 universal analog inputs and 24 Optional External Channels
❖ PR20, with a 5.6” display, with 6, 12, 18 or 24 universal analog inputs and 48 Optional External
Channels
❖ PR30, with a 12.1” display, with 6, 12, 18, 24, 30, 36, 42 or 48 universal analog inputs and 96
Optional External Channels
❖ High resolution TFT Colour LCD display with Touch screen
❖ 100 millisecond sampling rate and data logging
❖ PID Process Control card (PC201) to control the process.
❖ High accuracy 24-bit A-D Analog Input
❖ 16-bit D-A Analog Output
❖ Pulse input through Digital input, maximum 100 Hz.
❖ Plug & play I/O cards (AI, AO, DI, and DO) for easy expansion.
❖ On-board SD card slot for external storage.
❖ Two USB Host Ports for external storage and printer connectivity
❖ Ethernet as standard with optional RS-232 or RS422/RS485 communication
❖ IP65 water-resistant
1.2.2 Firmware
The PR series recorder has 4 different versions of firmware for the user to select as per the
application requirement.
1. Standard Firmware
2. Plus 1 Firmware
3. Plus 2 Firmware
4. Plus 3 Firmware
