8.4.8 External Channel Conversion for AO channel
Configure the channel as 2 Byte.

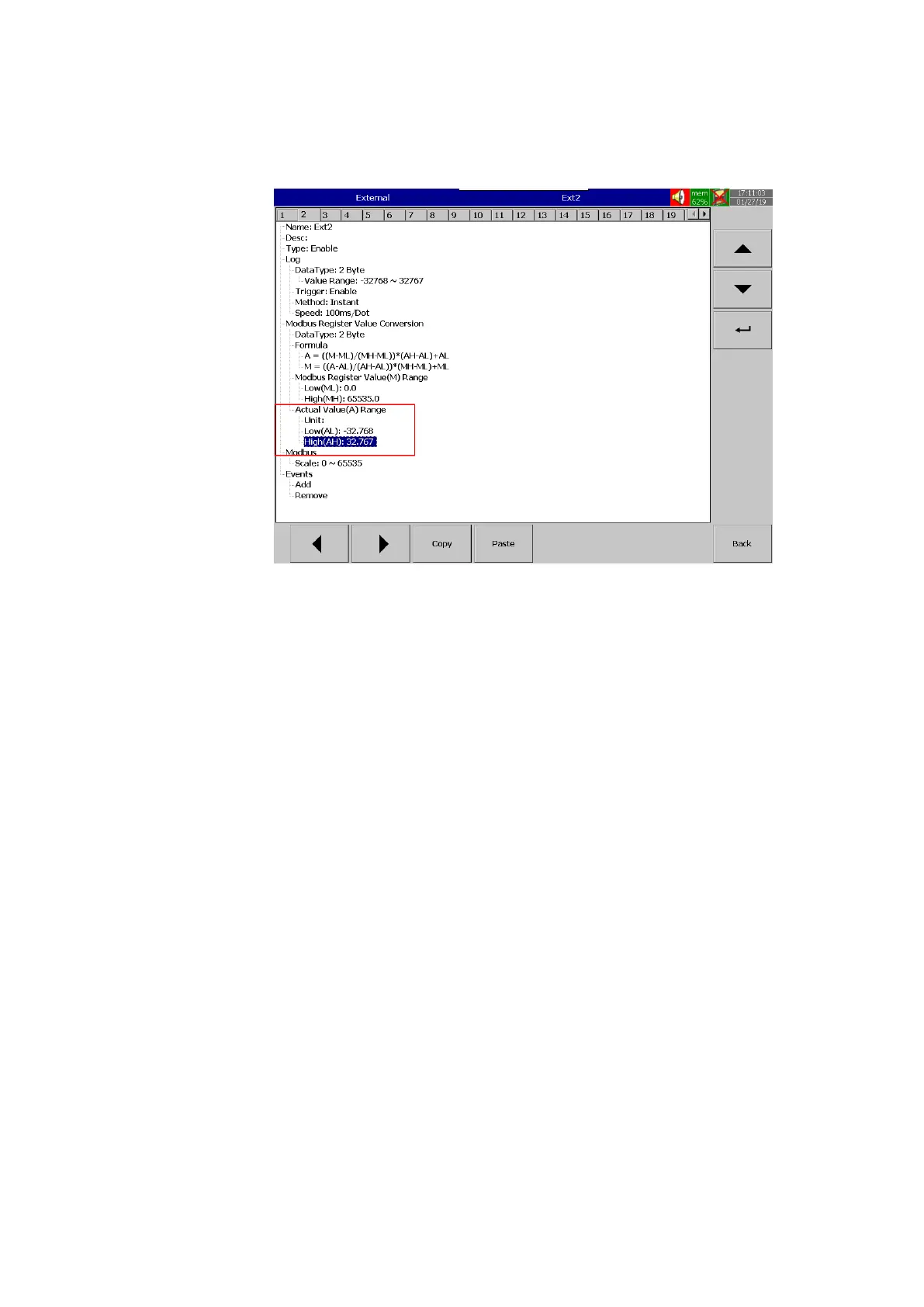

Configure the external channel Actual Value Low as -32.768 and Actual Value High as 32.767.
8.4.9 External Channel Conversion for Math channel
Configure the channel as 4 Byte.
Configure the Actual Value Low and high as below depends on decimal value of Math channel
configuration.
If the decimal is 0, Actual Value Low as -2147483648.0 and Actual value High as 2147483647.0.
If the decimal is 1, Actual Value Low as -214748364.8 and Actual value High as 214748364.7.
If the decimal is 2, Actual Value Low as -21474836.48 and Actual value High as 21474836.47.
If the decimal is 3, Actual Value Low as -2147483.648 and Actual value High as 2147483.647.
If the decimal is 4, Actual Value Low as -214748.3648 and Actual value High as 214748.3647.
If the decimal is 5, Actual Value Low as -21474.83648 and Actual value High as 21474.83647.
