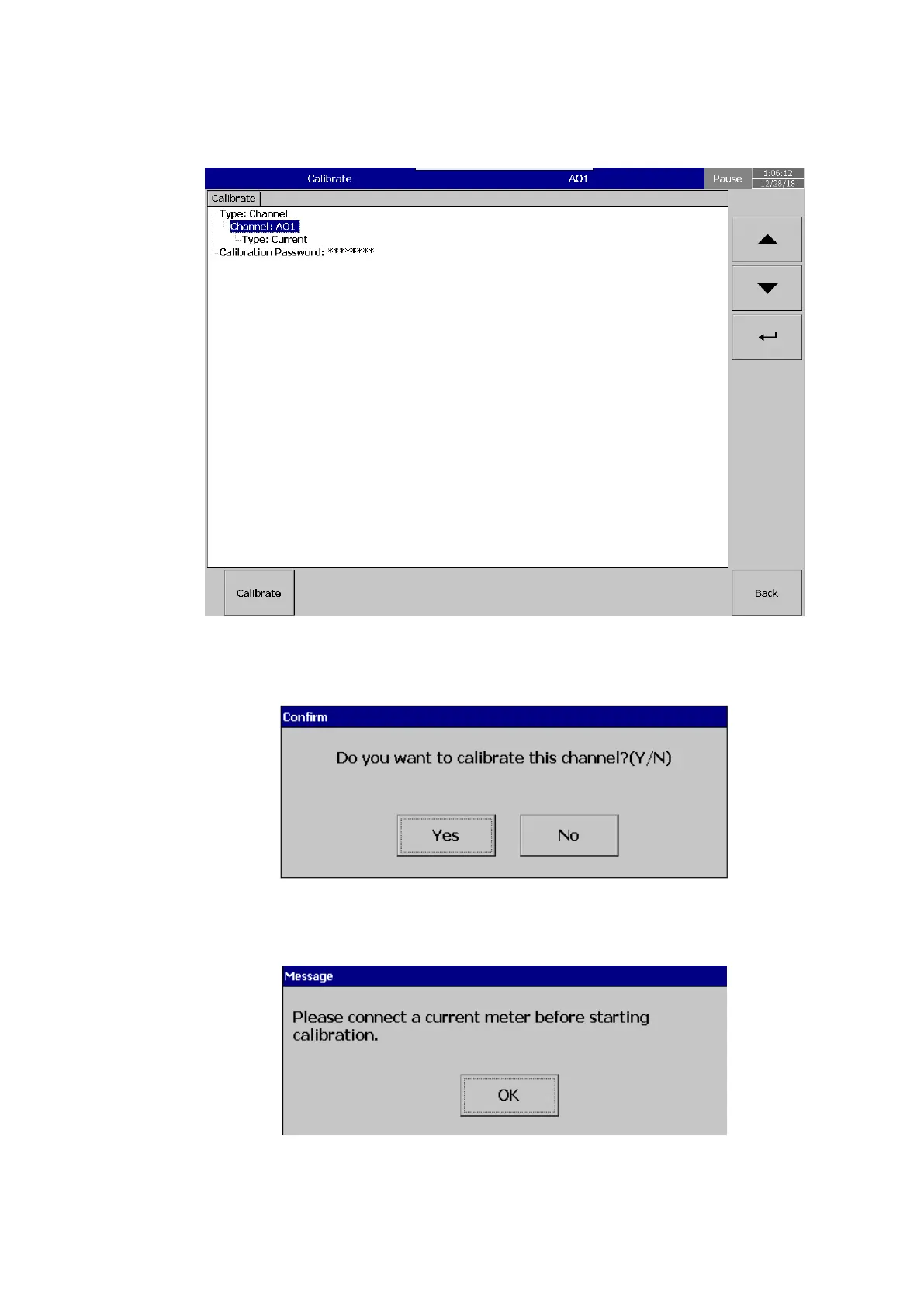

5.15.4 Calibrate an AO with 4 to 20 mA
After Entering the Calibration menu, select the channel, output type then press calibrate key.
The system will prompt for a user conformation to do the calibration of the channel.
Press Yes to do the Calibration on No to exit.
Connect a Current measuring meter before starting calibration.
The system will inform the user to input the low value input to the channel.
