5.9.8 Example for SIO Module as External Channel via PC-E

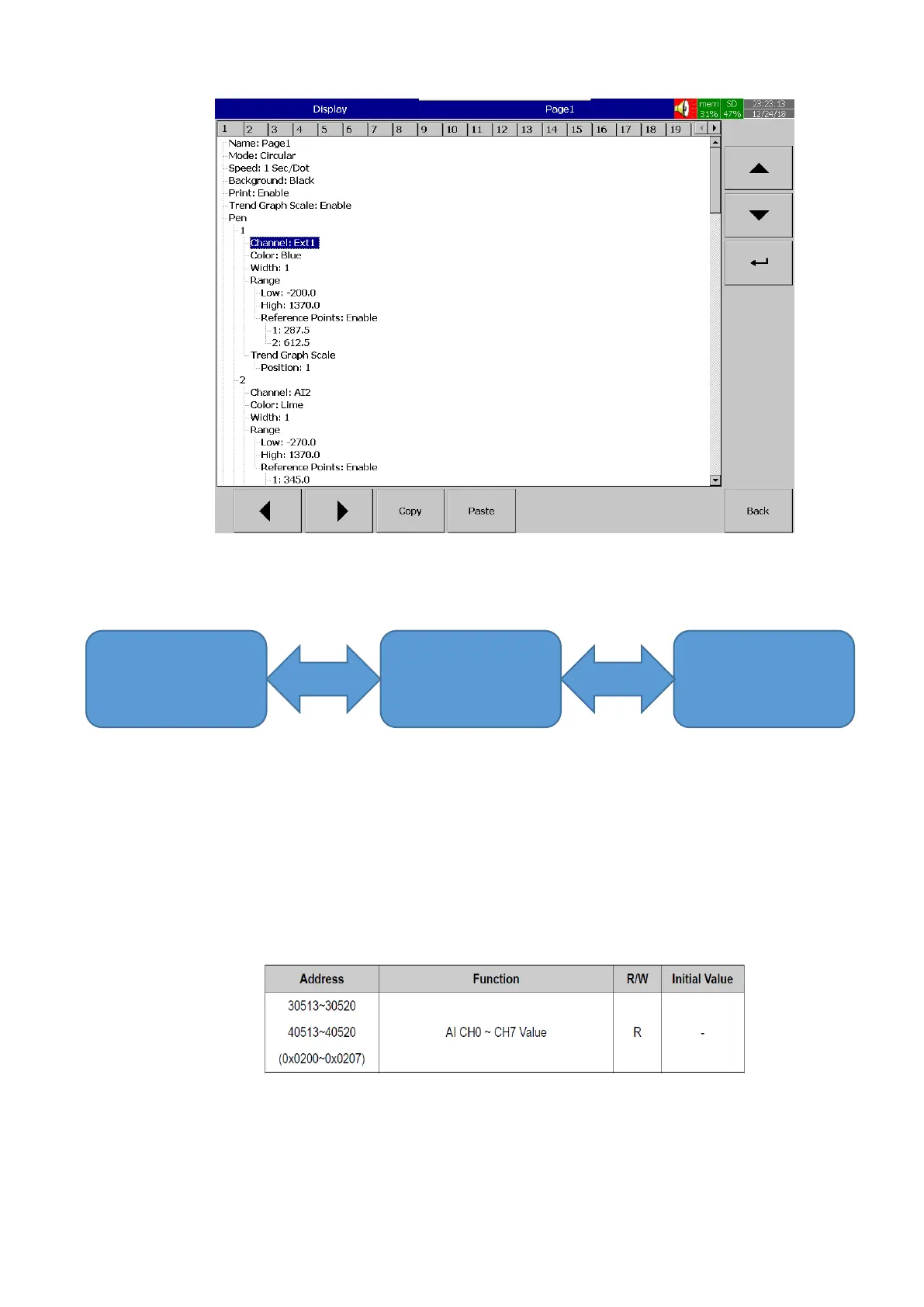

Paperless recorder connected with SIO module with slave address 1 using RS485 to Ethernet
Converter PC-E connected with Ethernet communication.
The communication parameters for the communication are as below.
SIO Module Configuration
Address: 1
Baud Rate: 9600
Parity: None
Data Length: 8
Stop Bit: 1
The below table shows the Modbus mapping of SIO series IO module.
Paperless Recorder
PC-E
Ethernet to RS485
Converter
SIO IO Module
Slave Id=1
Ethernet
RS-485
