Page 185 of 479

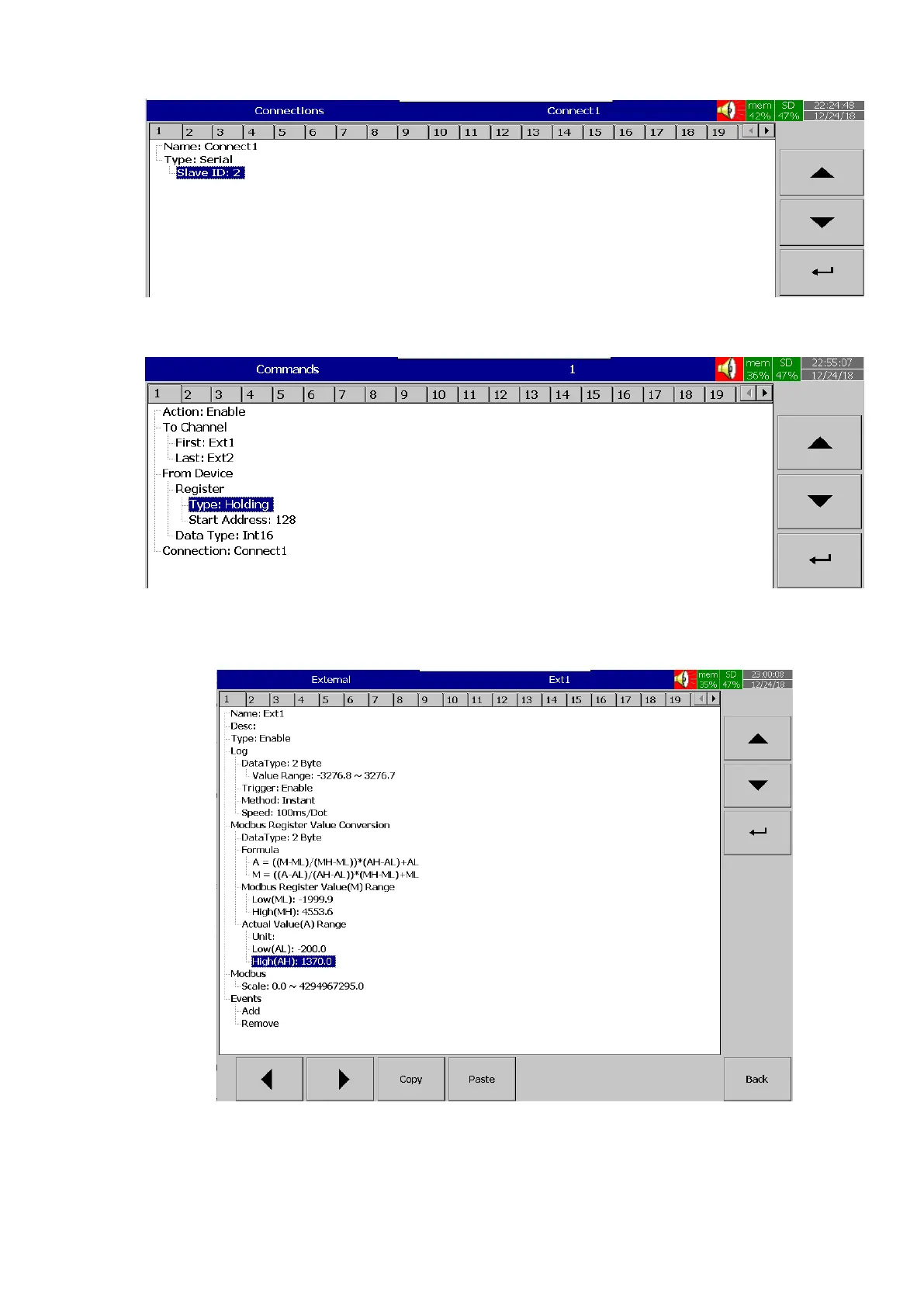

5-23 Connection for Slave ID 2
5-24 Mapping of Controller with External Channels
After the mapping of controller with external channel is successful then all mapped external
channel needs to be configured for displaying the data with proper scaling.
Configure display page to display External channel in display pages
