5.1.2.4 Events
A maximum of 2 events are supported for every digital Input channel. A maximum of two jobs
can be configured for each event.

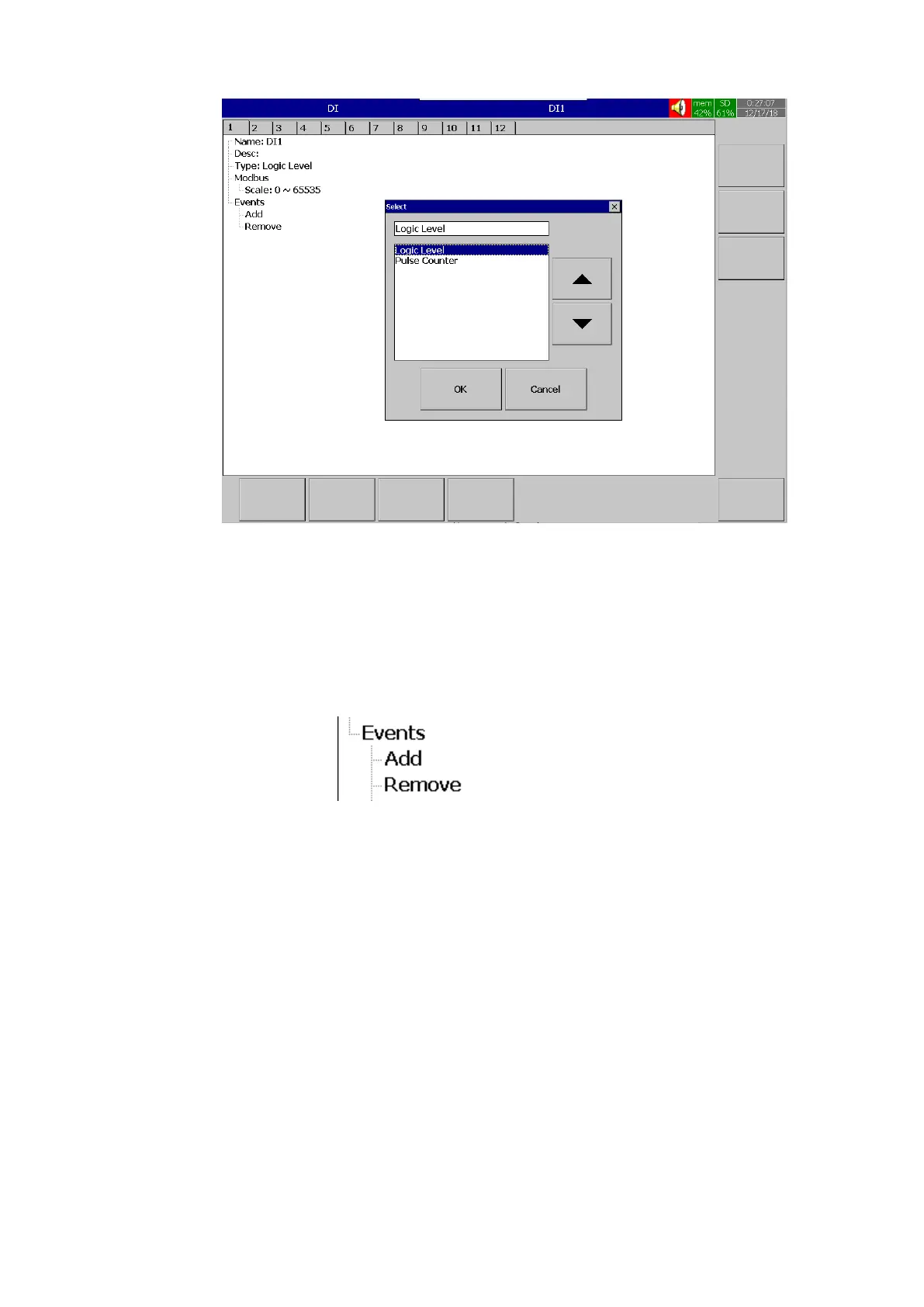

*Note: Events will not appear if Logic Level selected as Pulse Counter
Press “Add” to add new event and Press “Remove” to remove selected event
5.1.2.4.1 Type
Select the event type Low L or High H
5.1.2.4.1.1 Holding time
To avoid the alarm or event been activated too often, the holding time can be defined for the
event trigger set point. In process sometimes SP is reached but it will go down immediately, this might due
to process instability. To avoid these kind of nuisance situations, the holding time can be used to see that
the DI stays at high or low more than the holding time and then only activate the action for that event. The
range of holding time can be set from 1 min to 60 min.
5.1.2.4.2 Job1, Job2
The job is called as a task to be performed when the event is activated. There are two jobs Job1
and Job2 can be added to perform in any event.
To configure a Job, select Job1, the press the Enter key. It will show a list of all the available
jobs. Select the required Job.
