Page 182 of 479

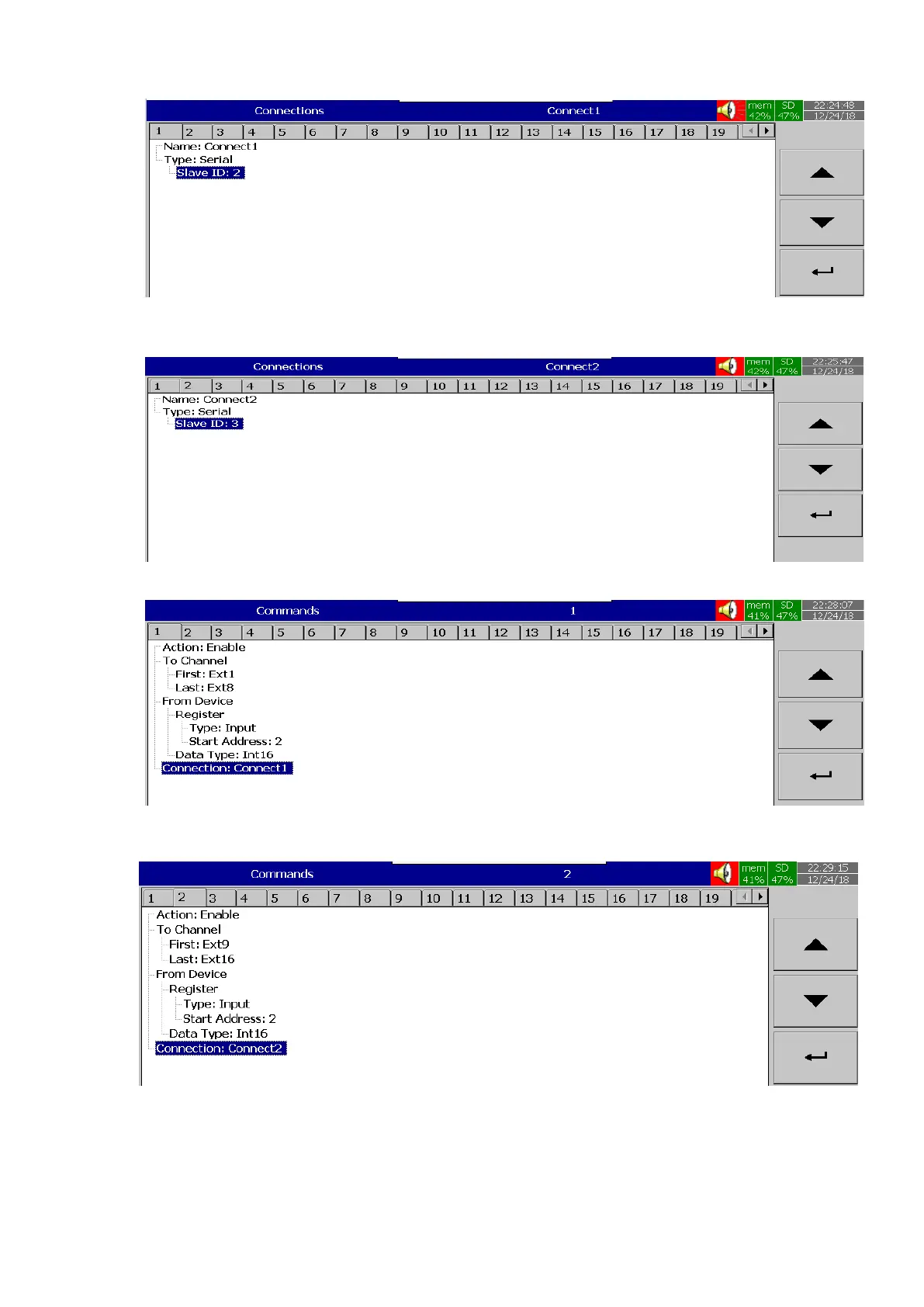

5-19 Connection for Slave ID 2

5-20 Connection for Slave ID 3

5-21 Mapping of IO Module and External Channel for Slave ID2

5-22 Mapping of IO Module and External Channel for Slave ID 3

After the mapping of IO module with external channel is successful then all mapped external

channel needs to be configured for displaying the data with proper scaling.
