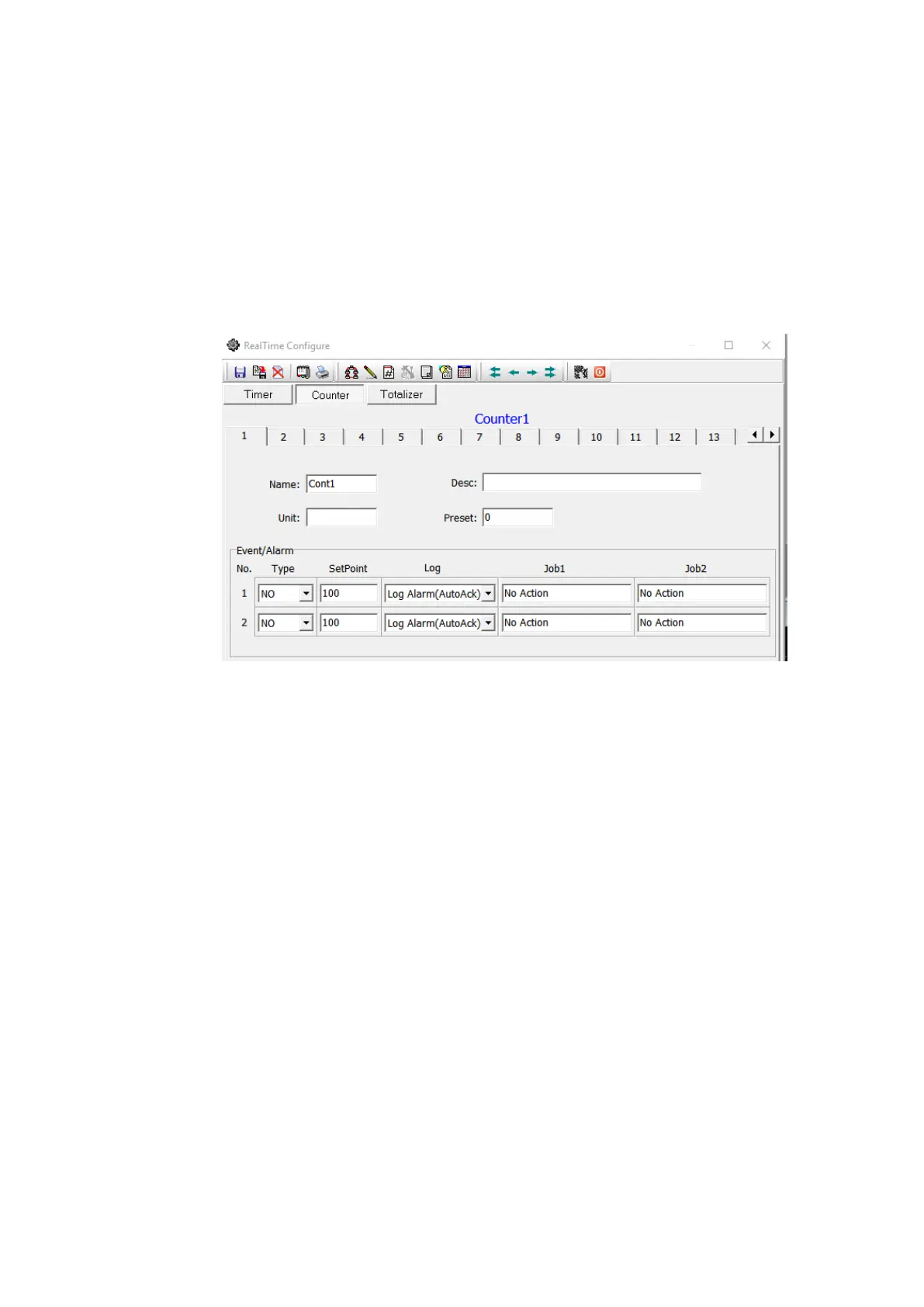

2. Counters
Maximum 50 counters are available.
Name: Defines the name of counter.
Desc: Defines the description for a specific counter on the display.
Unit: Defines the unit of counter
Preset: Defines the preset value for the counter. The counter starts from a preset value.
Event: Defines the type, set point, Job1 or Job2.
Type: Select one of three options: None, Process Hi, Process Low
Set point: Defines the set point of process value to trigger the counter.
Job1, Job2: various jobs as described in jobs for each counter
3. Totalizers
Maximum 50 Totalizers are available.
Name: Defines the name of the totalizer.
Desc: Defines the description for a specific totalizer on the display.
Source: Select a specific analog input or Math input to be used for totalizing.
Action: Disables or enables the totalizer.
Decimal: Defines the decimal point for the totalizer.
Period: Selects second, minute or hour used for the totalizer.
Unit: Defines the unit of totalizing
Preset: Defines the preset value for the totalizer. The totalizer starts from a preset value.
Low Cut: If Source channel has below this setting, then value is skipped from Totalizing
Event: Defines the type, set point, Job1 or Job2.
Type: Select one of three options: None, Process Hi, Process Low
Set point: Defines the set point of process value to trigger the totalizer.
Job1, Job2: various jobs as described in jobs for each totalizer.
