210 Brocade MLXe Series Hardware Installation Guide
53-1003030-01
Replacing fan assemblies
6

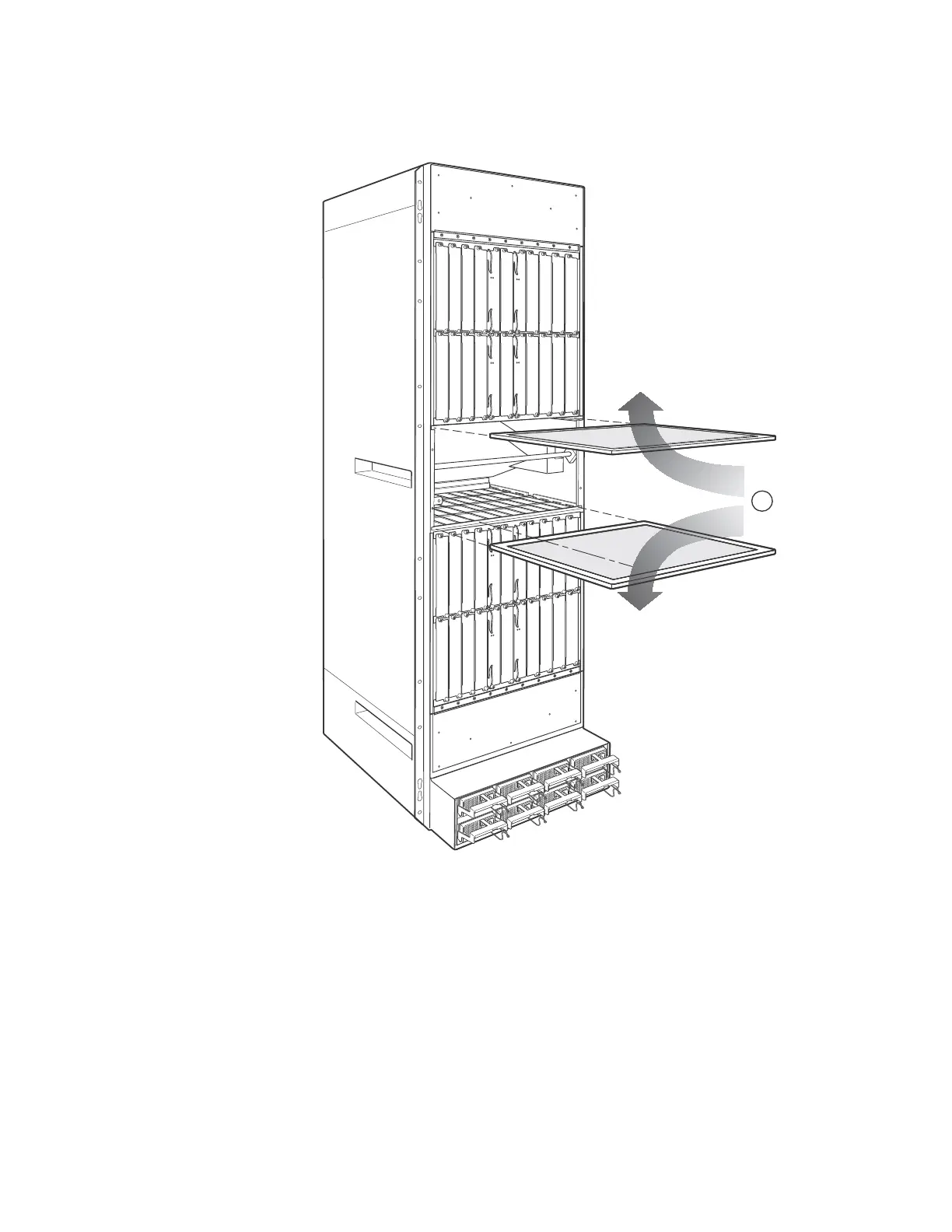

FIGURE 118 Air filter removal and replacement for 32-slot routers
Replacing the air filter in Brocade MLXe 4-slot and 8-slot routers
Follow these steps to replace the air filter in Brocade MLXe 4-slot and 8-slot routers.
1. Loosen the two screws in the front of the filter tray.
2. Pull the filter tray away from the router as shown in Figure 119 or Figure 120.
1 Direction of airflow in device
Pwr
Acti ve
Pwr
Acti ve
Pwr
Acti ve
Pwr
Acti ve
Pwr
Acti ve
Pwr
Acti ve
Pwr
Acti ve
Pwr
Acti ve
1
