20 Brocade MLXe Series Hardware Installation Guide
53-1003030-01
Router modules
1
When installing NI-MLX-10Gx8-M or NI-MLX-10Gx8-D modules, you must first upgrade the software
on all interface modules and management modules to Multi-Service IronWare software R05.0.00 or
later. For more information, refer to the Hardware Installation Notes that shipped with the modules.
NI-MLX-10Gx8-D interface modules do not support MPLS.
NI-MLX-10Gx8-M or NI-MLX-10Gx8-D modules require high-speed switch fabric modules to operate.
You can replace switch fabric modules with high-speed switch fabric modules while the system is
powered on and running. For more information about high-speed switch fabric modules, see
“High-speed switch fabric modules” on page 31.

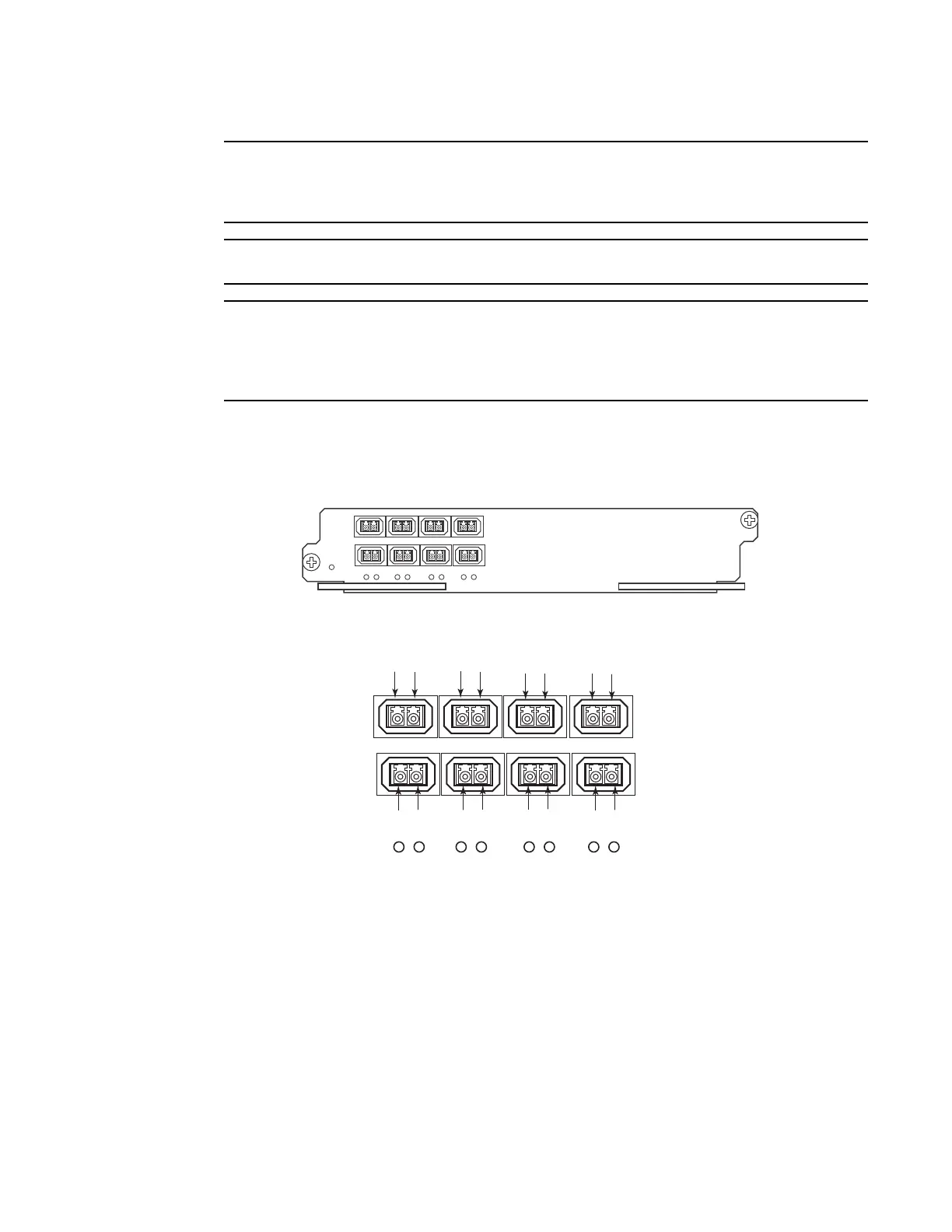

Figure 12 displays the faceplate of the NI-MLX-10Gx8-M and NI-MLX-10Gx8-D modules. Figure 13
shows the RX and TX orientation for the ports, and identifies which LED goes with which port.
FIGURE 12 NI-MLX-10Gx8-M and NI-MLX-10Gx8-D module faceplate
FIGURE 13 Port RX and TX, and LED designations for NI-MLX-10Gx8-M and NI-MLX-10Gx8-D modules
NI-MLX-10Gx8-M and NI-MLX-10Gx8-D modules support the SFP+ optics; they do not support SFP
optics. For a list of supported SFP+ optics, refer to the latest version of the Brocade Optics Family
Data Sheet, available online in the following location:
http://www.brocade.com/downloads/documents/data_sheets/product_data_sheets/optics-famil
y-ds.pdf
NI-MLX-10Gx8-M and NI-MLX-10Gx8-D interface module LEDs
The NI-MLX-10Gx8-M and NI-MLX-10Gx8-D interface module LEDs indicate module and port status,
as described in Table 9.
2 RX TX 4 RX TX 6 RX TX 8 RX TX
3 TX RX 5 TX RX 7 TX RX
LEDs 1 2 3 4 5 6 7 8
