Router modules
1
100/1000 Ethernet ports
The 100/1000 Ethernet interface module contains 20 physical ports, through which you can
connect your router to other network routers at a speed of 100 Mbps or 1 Gbps.
You must insert an SFP-compliant fiber-optic transceiver (provided by Brocade) into a physical port.
SFP-compliant fiber-optic transceivers provide a physical medium-dependent (PMD) fiber interface
that can be used with either the LAN physical layer (PHY) or WAN physical layer (WAN PHY).
For a list of SFP optics supported by Brocade, refer to the latest version of the Brocade Optics
Family Data Sheet, available online in the following location:
http://www.brocade.com/downloads/documents/data_sheets/product_data_sheets/optics-famil
y-ds.pdf
20-port 10/100/1000 Ethernet interface module

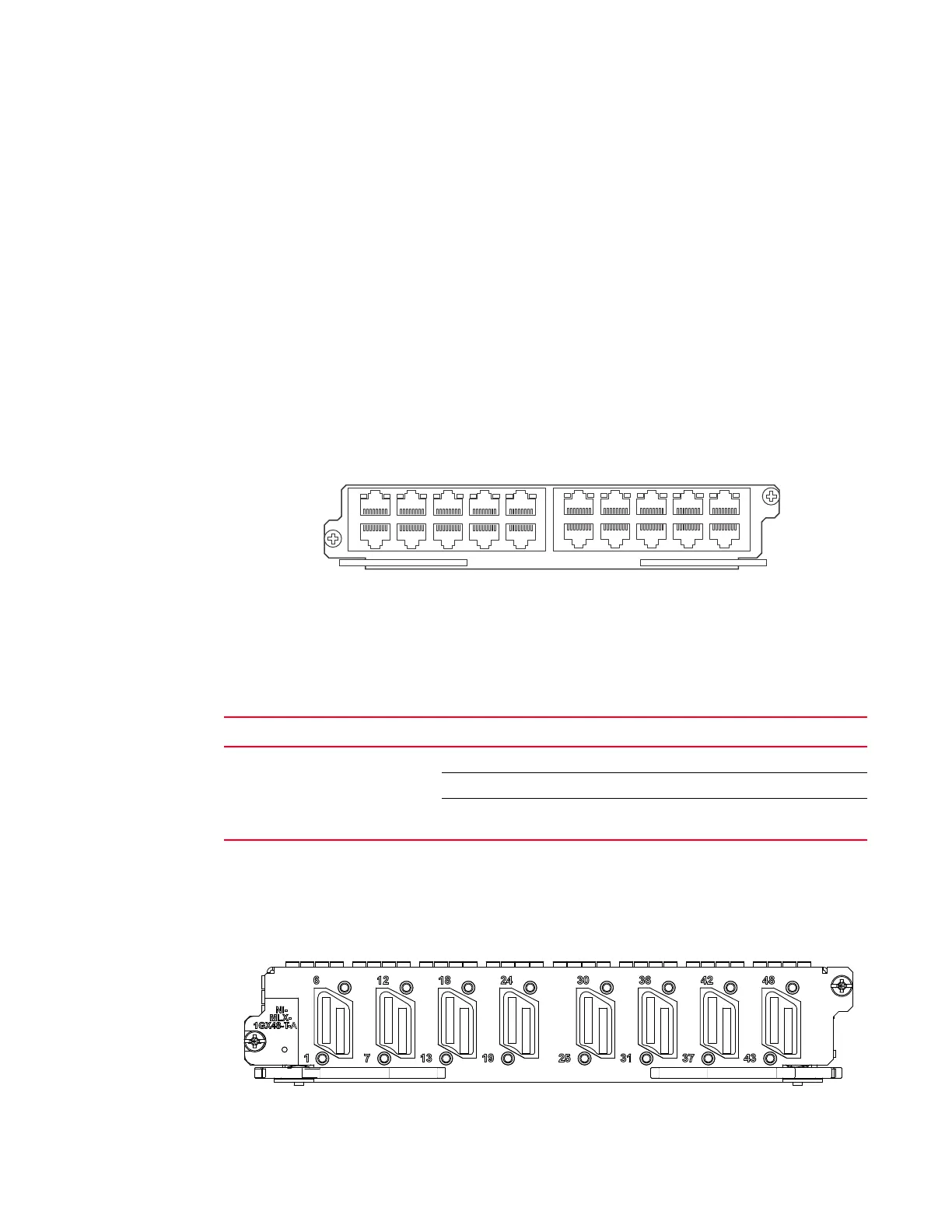

Figure 17 shows the front panel of the 20-port 10/100/1000 Ethernet RJ45 module.
FIGURE 17 20-port 10/100/1000 copper Ethernet interface module front panel
The front panel includes the following features:
• LEDs
• Twenty 10/100/1000 copper Ethernet ports.
Table 13 describes the 20-port 10/100/1000 Ethernet module LEDs.
NI-MLX-1Gx48-T-A interface module
Figure 18 shows the front panel of the NI-MLX-1Gx48-T-A interface module.
FIGURE 18 NI-MLX-1Gx48-T-A module front panel
TABLE 13 20-port 10/100/1000 Ethernet module LEDs
LED Position State Meaning
Link or
Active
Above the ports. The top
port LED is on the left side,
the bottom port LED is on
the right side.
On (solid) A link is established with the remote port (with no traffic).
Blinking The port is transmitting and receiving packets.
Off A link is not established with the remote port and no traffic is
being passed.
