Mounting Brocade MLXe-4, -8, or -16 routers in a 4-post rack or cabinet
2
4. Attach the side plates to the rear of the router, using eight 6-32 flat-head screws. Refer to
Figure 49.

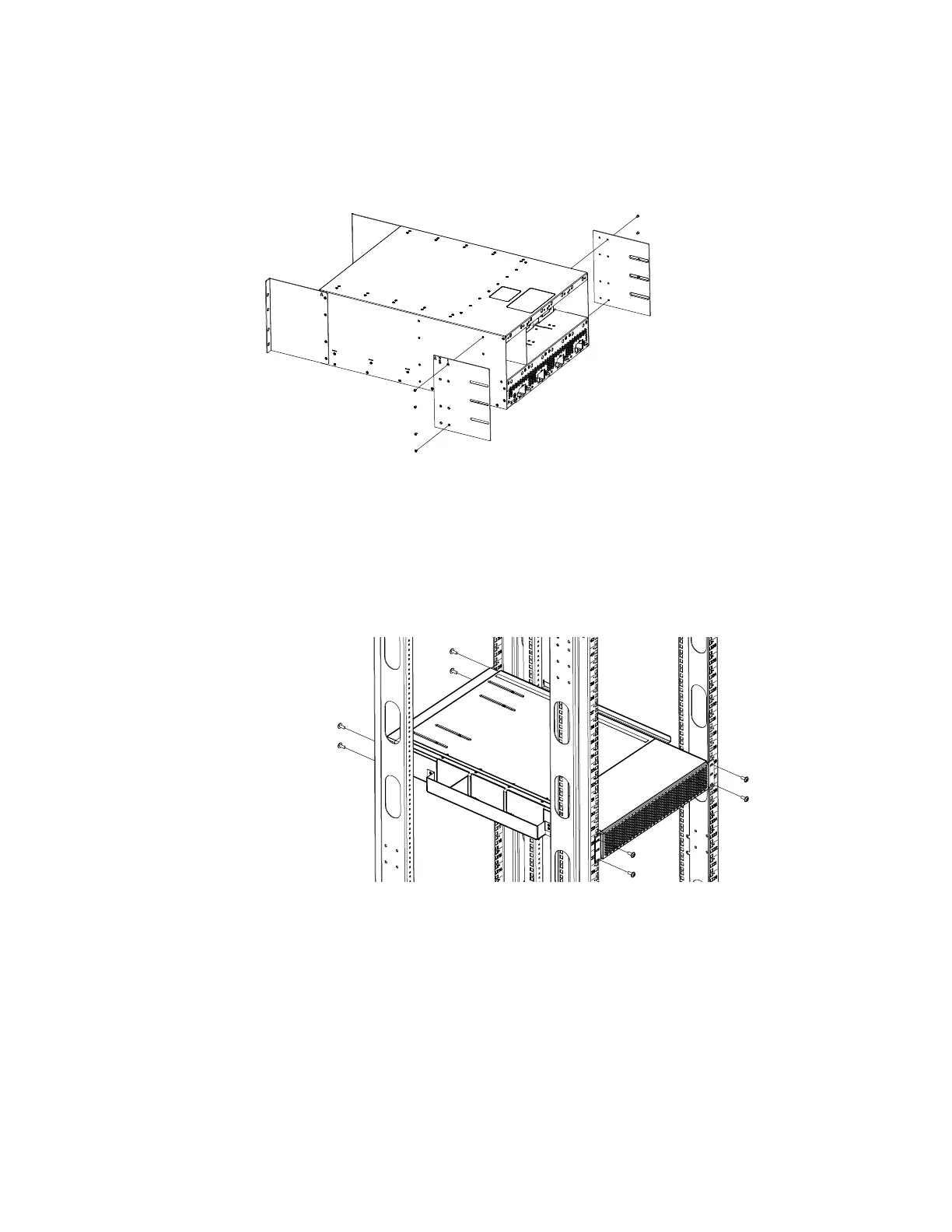

FIGURE 49 Attach side plates to the rear of the router (MLXe-4 shown)
There are two sizes of side plates to accommodate cabinets or racks with depths of 27-28
inches, and depths of 29-31 inches. Be sure to select the side plate that is appropriate for your
cabinet or rack.
5. The mounting shelf adjusts to accommodate racks with depths from 27 to 31 inches, for both
4-slot and 8-slot routers. Slide the adjustable rails to the proper depth for your installation, and
Install the mounting shelf to the rack rails using eight 10-32 screws. Refer to Figure 50.
FIGURE 50 Install the mounting shelf in the rack
A
B
B
A
