Brocade Communications Systems MLXe Series User Manual

Brocade MLXe Series Hardware Installation Guide 83
53-1003030-01
Mounting Brocade MLXe-4, -8, or -16 routers in a 4-post rack or cabinet
2

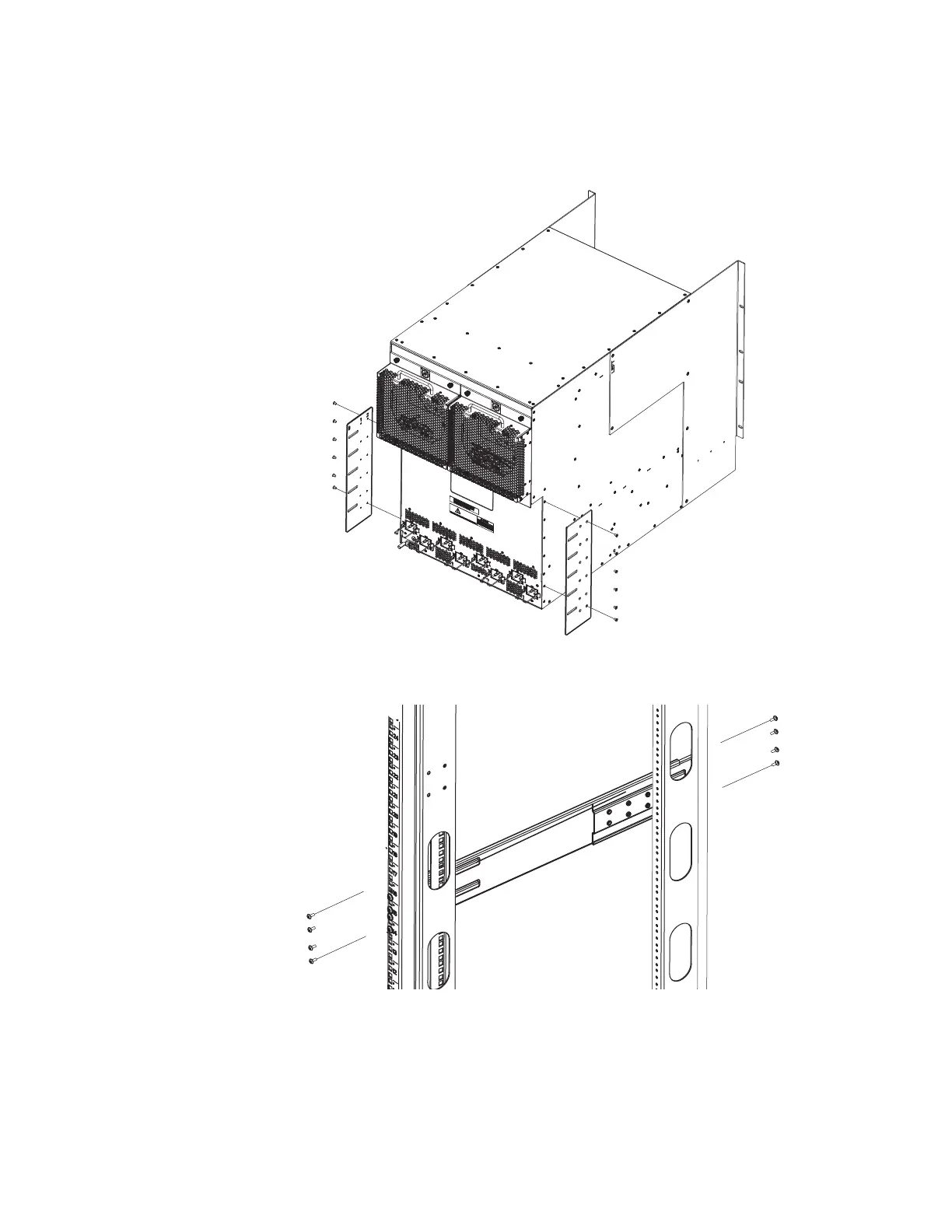

3. Attach the side plates to the router using 8 4-40 flat head screws. Refer to Figure 56.
FIGURE 56 Attach the side plates to the rear sides of the device
4. Attach the telescoping rails to the mounting posts in the cabinet or rack. Refer to Figure 57,
FIGURE 57 Attach telescoping rails to cabinet or rack mounting posts (one rail shown)
