Brocade Communications Systems MLXe Series User Manual

Brocade MLXe Series Hardware Installation Guide 85
53-1003030-01
Mounting Brocade MLXe-4, -8, or -16 routers in a 4-post rack or cabinet
2

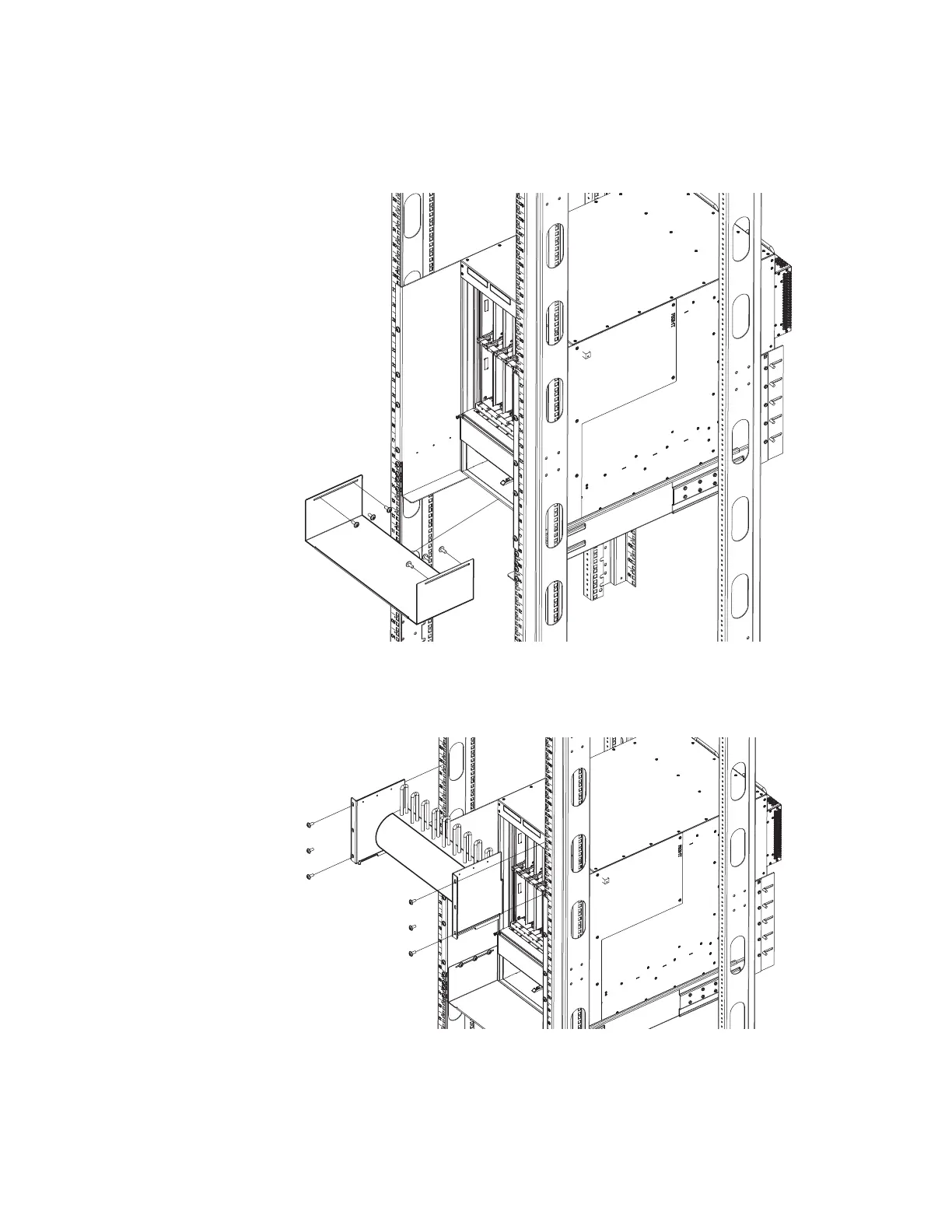

7. Attach the air block bracket to the front of the cabinet. Refer to Figure 60.
FIGURE 60 Install the air block bracket
8. Attach the cable management comb. Refer to Figure 61. For cable management instructions,
refer to “Brocade MLXe-32 cable management” on page 108.
FIGURE 61 Attach the cable management comb
