4 - 5
Adjustment (Main Unit)
Inspection and
Adjustment

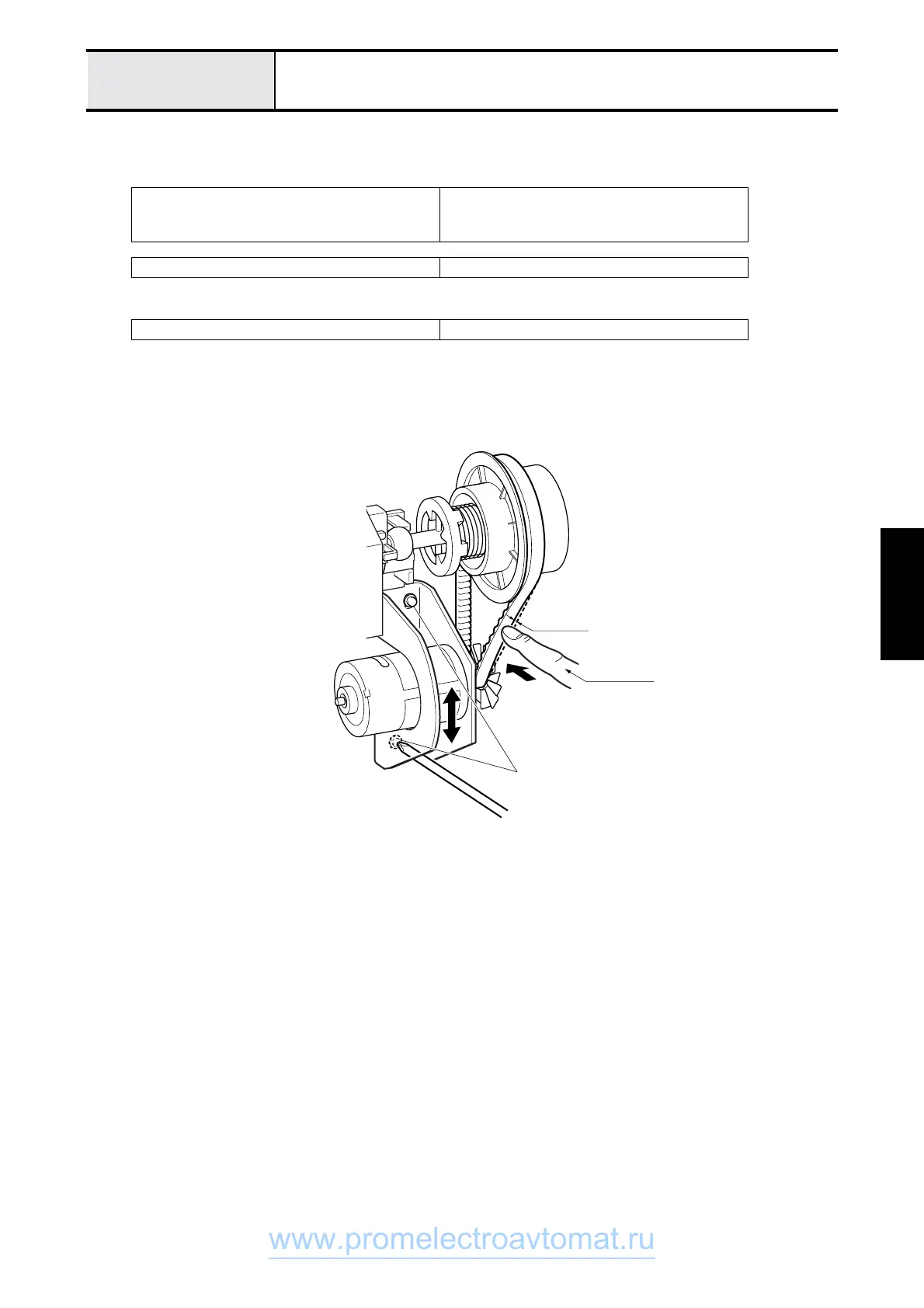

Motor belt tension adjustment
1. Loosen giza tite 5X16 (two locations: securing motor holder).
2. Move the motor holder up and down and adjust the motor belt tension.
3. Fully tighten the giza tites 5X16 (two locations).
Motor belt deflection when a force of
approximately 1 N (100 g) is applied to the
middle of the motor
belt:
3 - 4 mm
XC2277001 Push-pull gauge (3 N)
Giza tite 5X16
torque: 1.18 - 1.57 N-m
3 - 4mm
1N (100g)
giza tite 5 × 16
