Brother CS8000 Series - Upper Shaft Mechanism

3 - 17
Upper shaft mechanism
Main unit

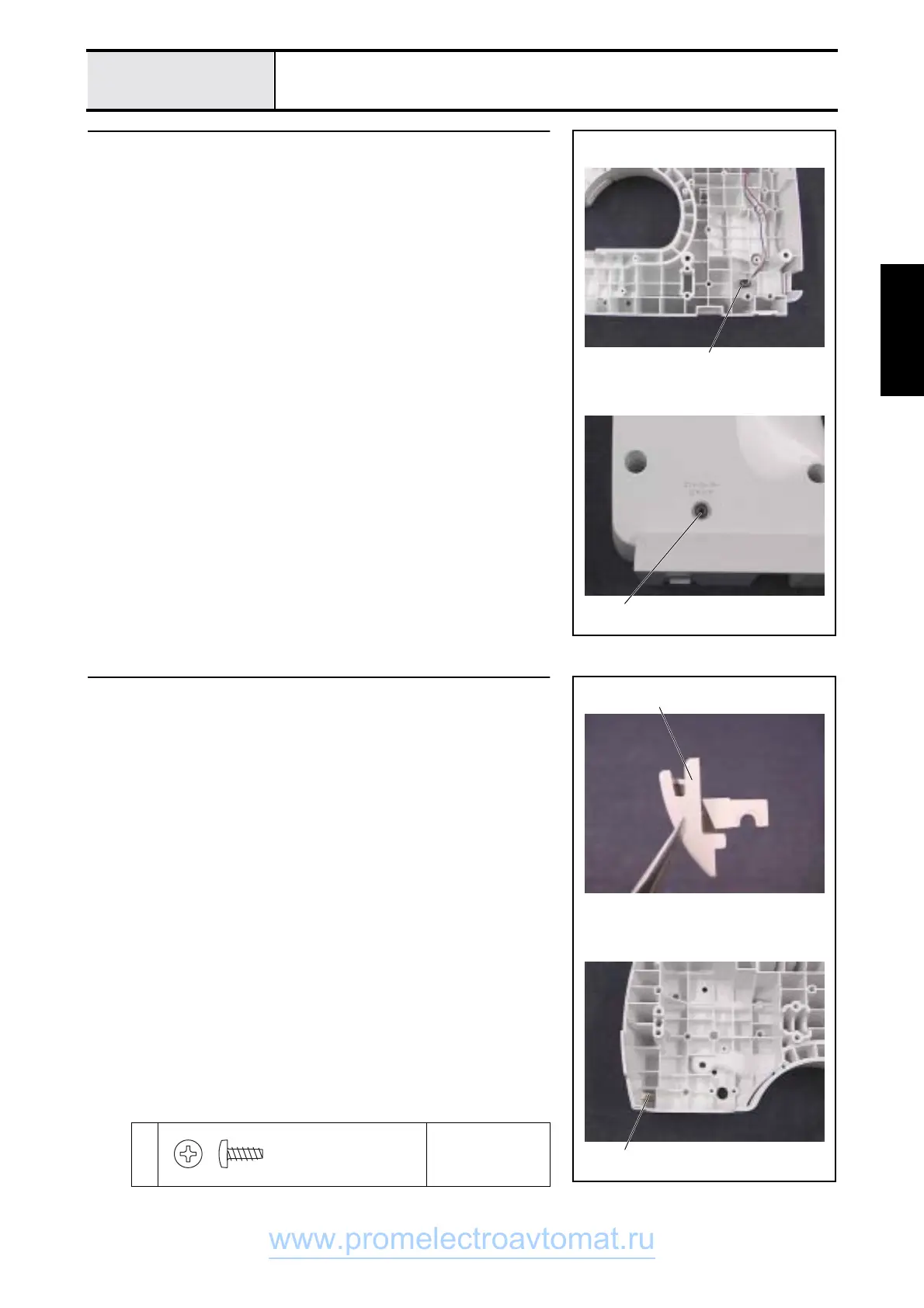

Assembly
1
Foot controller jack assy. attachment
1. Attach the foot controller jack assy. 2 to the arm bed using nut 1.
1
2
2
NT lower thread cutter attachment
1. Attach the NT lower thread cutter 1 to the cutter cover.
2. Attach the cutter cover 1 to the arm bed using screw 1.
1
Torque
0.57 - 0.78 N-m
1
1
Taptite, Bind B
M3X8
Color; Gold
