2 - 8
Front cover
Main unit
1

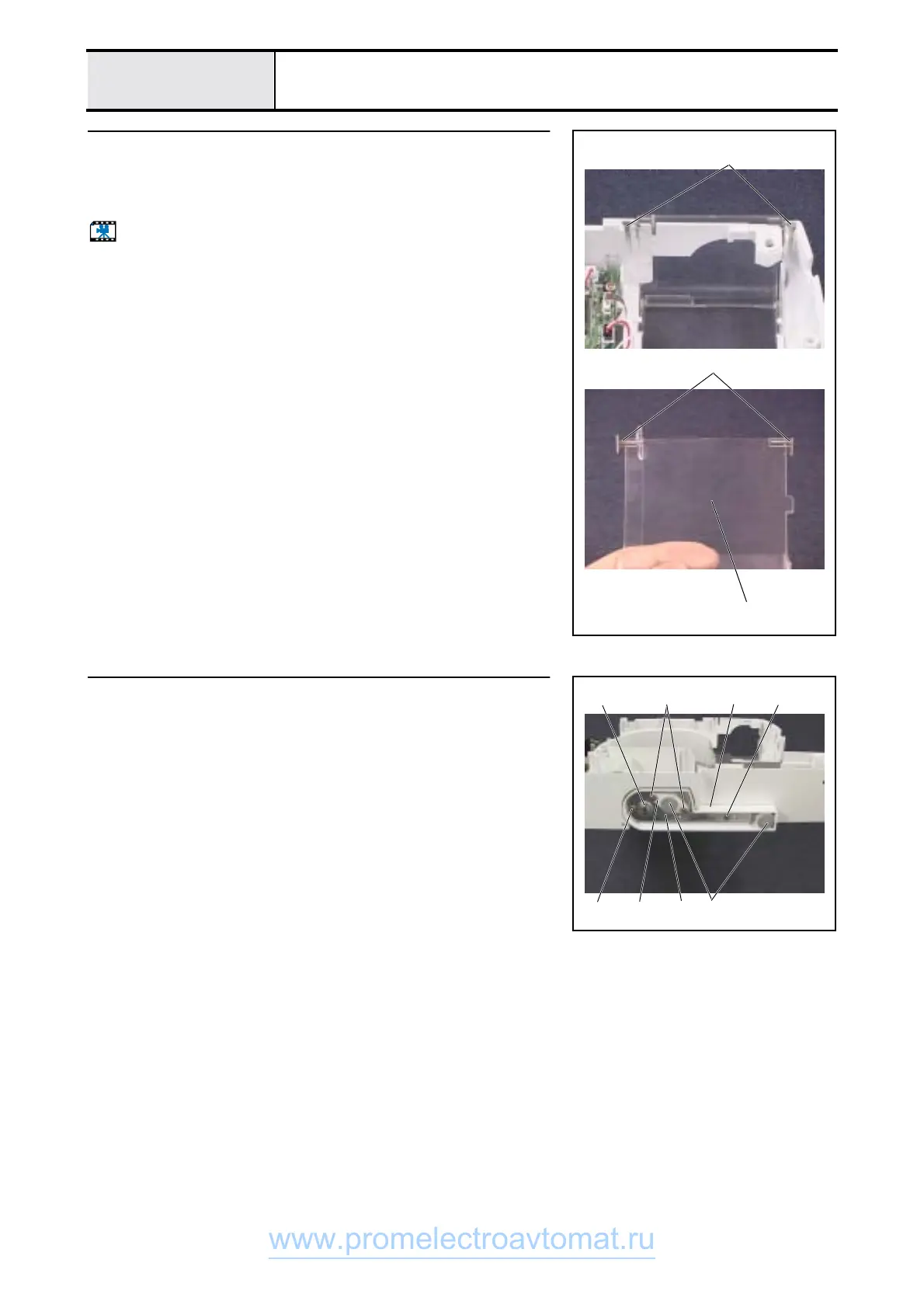

Cassette cover removal
1. Remove the front cover for the cassette.
2. Remove the link hold plates 1 (two).
3. Remove the cassette cover 2 and cover link plates 3 (two).
Start movie clip (CD-ROM version only)
1
3
2
2
Remove base cover A.
1. Remove the screw 1, and remove the base cover A assy.1 and base cover
washer.
2. Remove the base plate rubbers 2 (two).
3. Remove the screws 2 (two), and remove rubber cushion plinth 4.
4. Remove the screws 3 (two), and remove base plate A 5.
1 1 3
3 42
2
5
