Brother CS8000 Series - Main Unit Main Parts

2 - 3
Main parts
Main unit
Disassembly
1

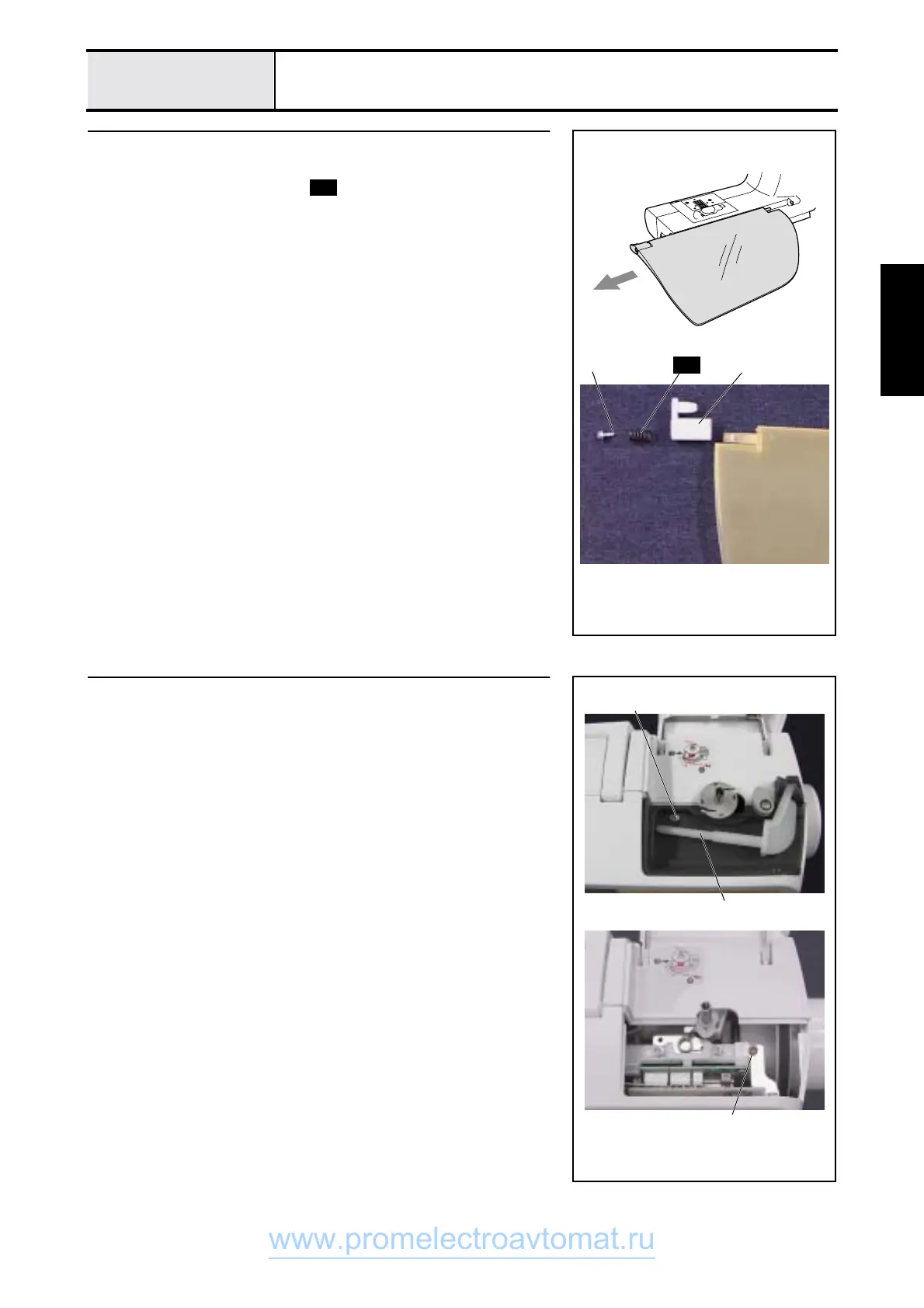

Flap table assy. disassembly
1. Remove the flap table.
2. Remove 1, and remove spring and the table bearing 1 from the flap
table.
11
S26
S26
2
Bobbin winder assy. removal
1. Remove the bobbin base.
2. Remove the screw 1.
3. 1Remove the bobbin winder assy. from the front cover.
4. Remove the screw 2.
1
1
2
