2 - 19

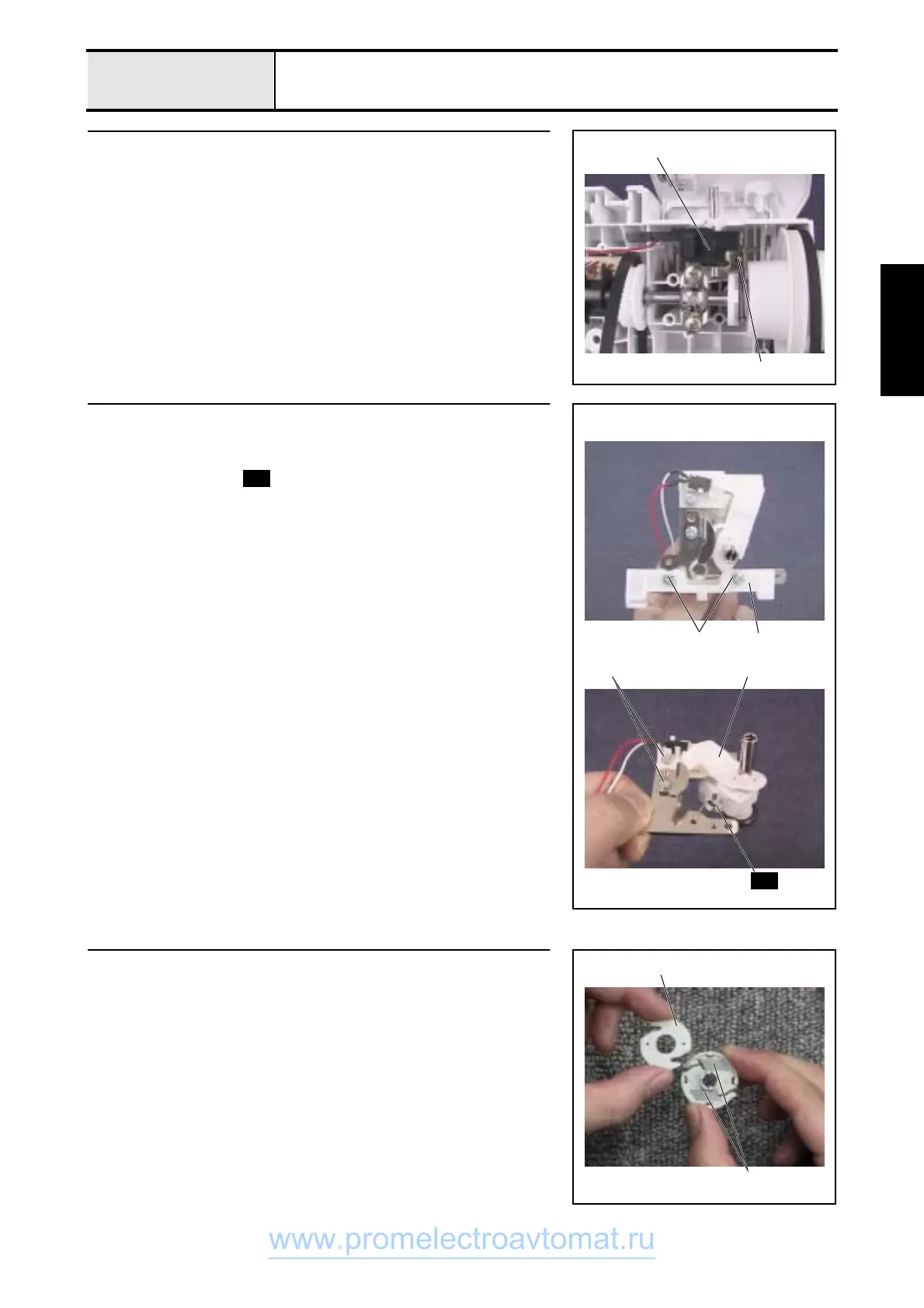

Upper shaft mechanism
Main unit
Disassembly
1
Bobbin winder assy. removal
1. Remove screw 1, and remove the bobbin winder assy. 1 and washer.
1
1
2
Bobbin winder assy. disassembly
1. Remove the bobbin base.
2. Remove screws 1 (two), and remove the Board presser 1.
3. Remove the Spring .
4. Remove the BW shaft holder assy. 2.
5. Remove screws 2 (two), and remove the bobbin winder shaft stopper and
the SW adjust plate.
6. Remove the BW SW-S assy. from the SW adjust plate.
2
1
2
S21
1
S21
3
Bobbin base assy. disassembly
1. Remove the bobbin thread cutter holder 1 from the bobbin base.
2. Remove the NT lower thread cutters 2 (two) from the bobbin base.
2
1
