Brother CS8000 Series User Manual

2 - 20
Upper shaft mechanism
Main unit
4

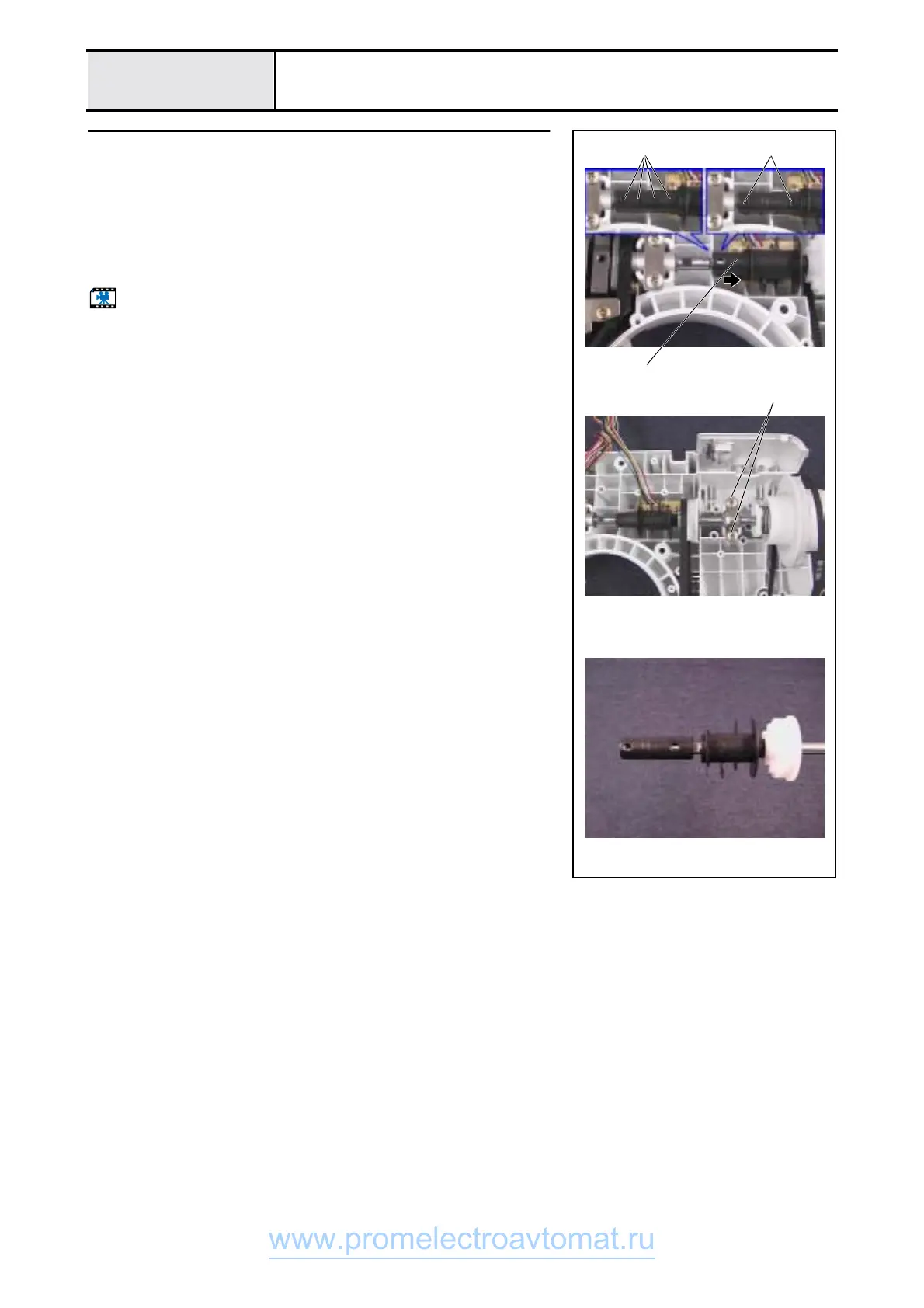

Upper shaft assy. removal
1. Remove screws 1 (set screw, socket (FT) M5X5) (two) and screws 2 (set
screw, socket (CP) M4X4) (four), and move the fixed joint 1 to the right
side.
2. Remove the screws 3 (two), and remove the upper shaft bearing presser.
3. Remove the upper shaft assy., timing belt (motor) and timing belt (rotary
hook drive).
4. Remove the fixed joint from the upper shaft assy.
Start movie clip (CD-ROM version only)
12
1
3
