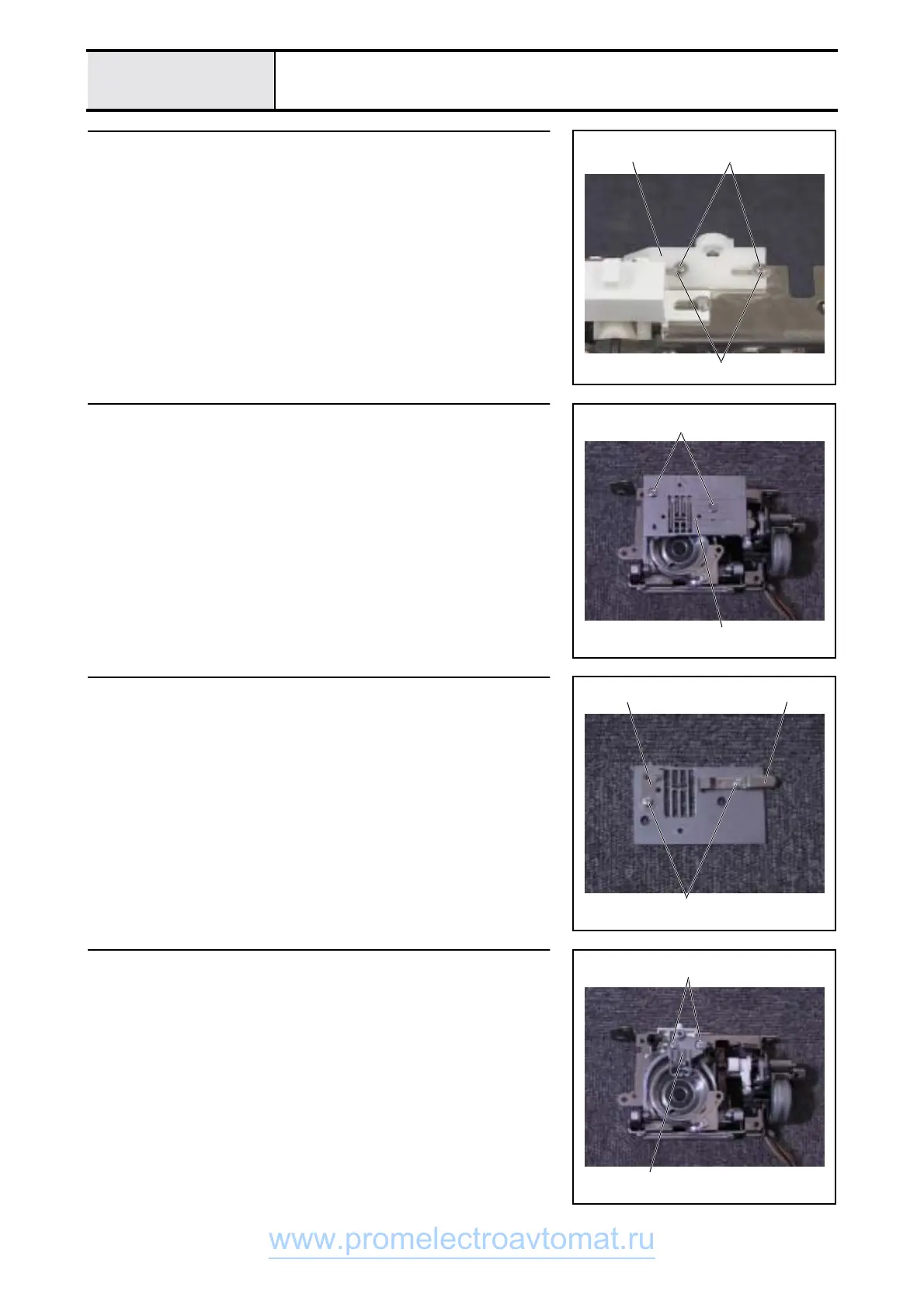

Feed module
Modules
1
Drop lever SE removal
1. Remove retaining rings E2 (two), and remove slide shafts A 1 (two) and
drop lever SE 2.
2. Remove the retaining rings E2 (two) from slide shafts A (two).
12
Retaining ring E2
2
Needle plate A removal
1. Remove screws 1 (two), and remove needle plate A 1.
1
1
3
Needle plate A disassembly
1. Remove screws 1 (two), and remove stopper plate 1 and stopper plate
2.
12
1
4
Feed dog removal
1. Remove screws 1 (two), and remove the feed dog 1.
1
1
