3 - 27

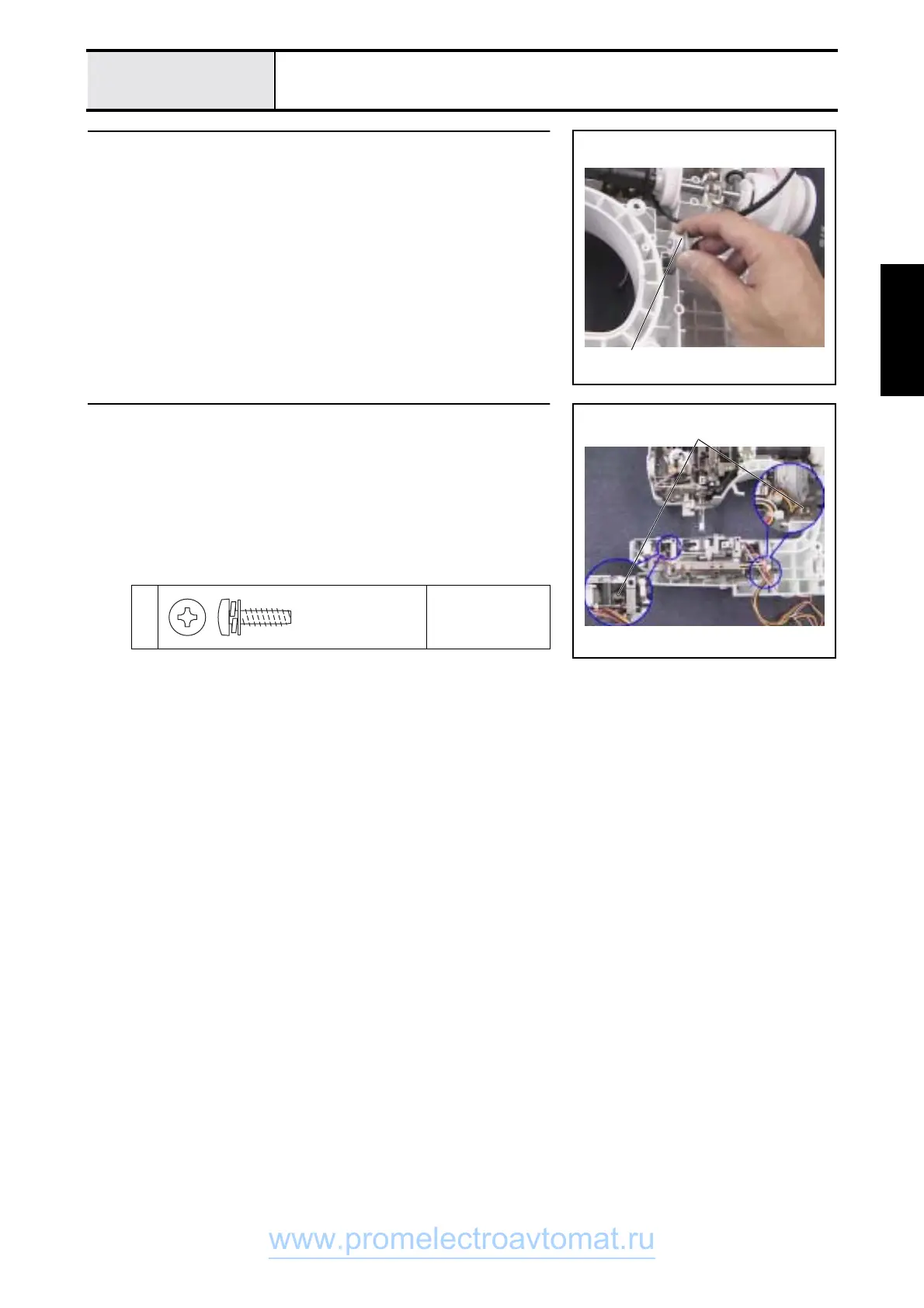

Rotary hook drive mechanism
Main unit
Assembly
1
Tension pulley assy. attachment
1. Attach the tension pulley assy. 1 to the arm bed.
1
2
Feed module attachment
1. Attach the feed module to the arm bed using screws 1 (two).
*Key point
• Hand start screw 1, and fully tighten after 4 - 6 "Needle-
presser module and feed module left-right position alignment."
• After attaching the feed module/thread cutter module, always
perform 3 - 28 "3 Needle interference provisional adjustment
(needle bar, presser back-front position adjustment)Needle
interference adjustment.
1
Torque
Hand start
1
Giza Tite
4X14
Color; Gold
