Brother CS8000 Series - Inner Rotary Hook Bracket Position Adjustment

4 - 21
Adjustment (Modules)
Inspection and
Adjustment

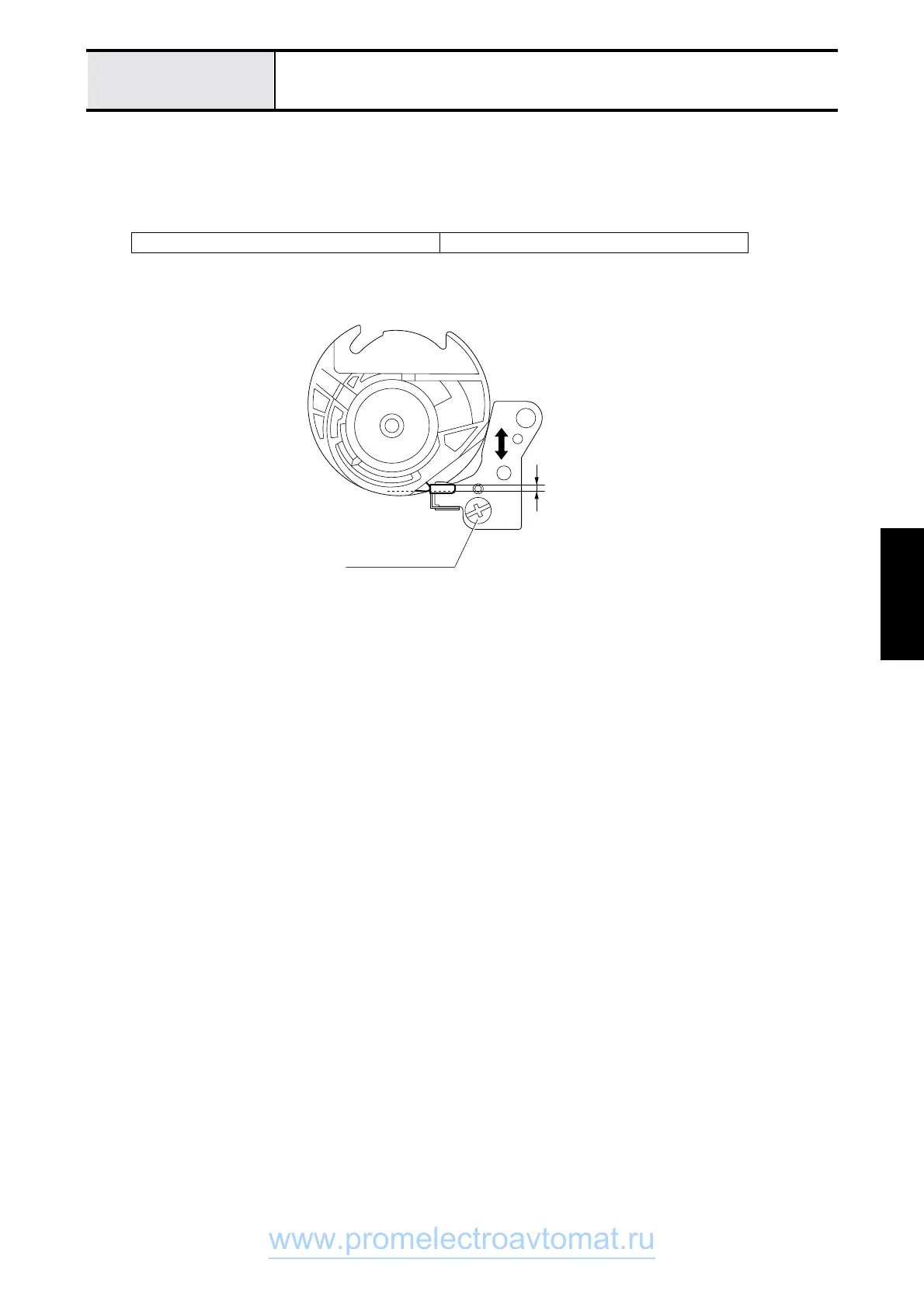

Inner rotary hook bracket position adjustment
1. Set the inner rotary hook in the outer rotary hook.
2. Loosen screw (bind 3X8).
3. Adjust the inner rotary hook bracket assy. attachment position so that contact between the inner rotary bracket
assy. and inner rotary hook is 1.6 – 1.8 mm, and fully tighten screw (bind 3X8).
Giza tite 5X16
torque: 1.18 - 1.57 N-m
Screw, bind 3 × 8
1.6 - 1.8mm
