Brother CS8000 Series User Manual

3 - 65

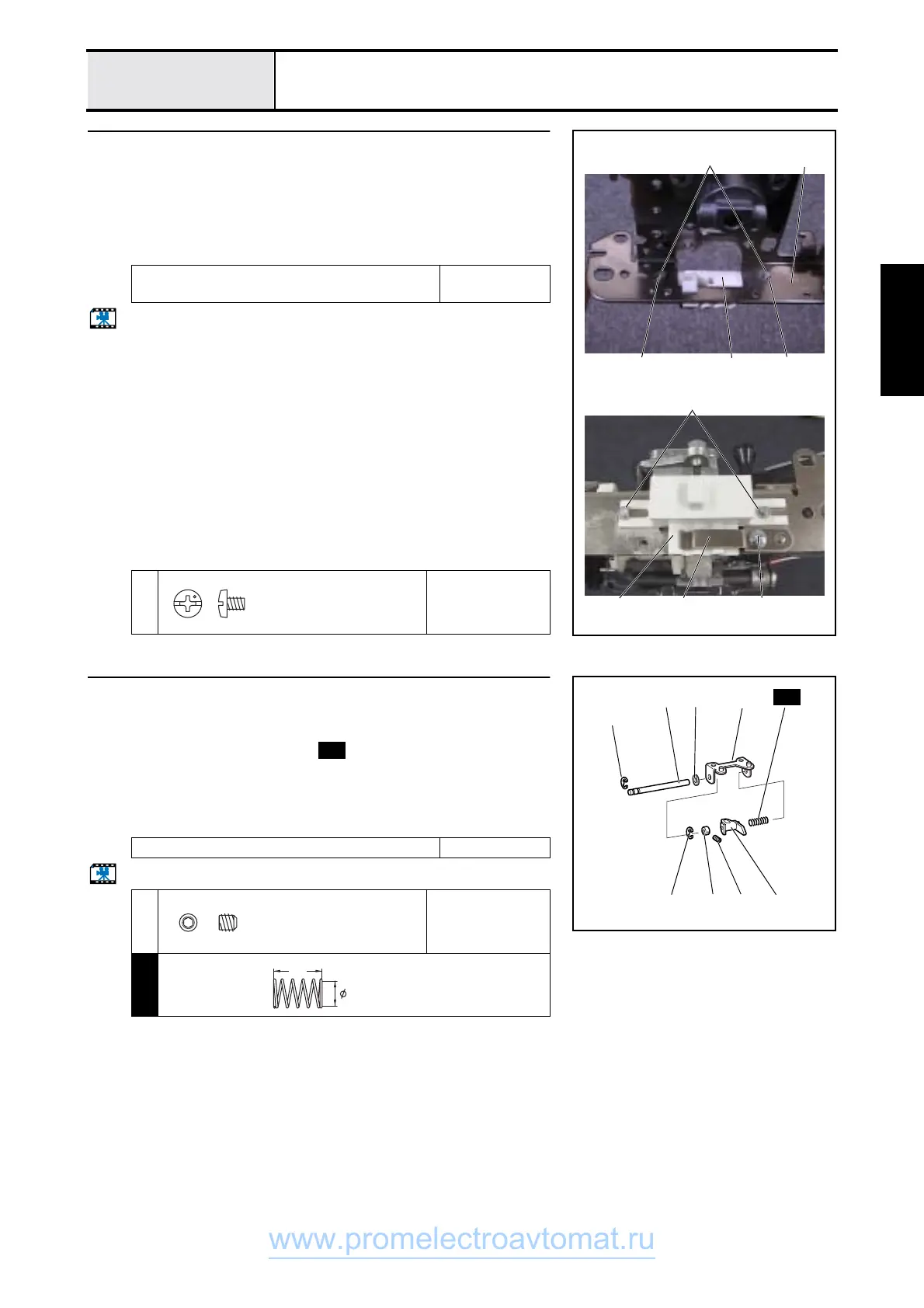

Feed module
Modules
Assembly
1
Drop knob attachment
1. Attach retaining rings E2 (two) to slide shafts B 1.
2. Attach the drop knob 2 and to the slide shaft B assemblies 1 (two) to the
feed base 3, and attach retaining rings E2 (two).
3. Apply a small amount of Molykote EM30L to the drop knob 2.
4. Attach the spring plate 4 using screw 1.
Start movie clip (CD-ROM version only)
Apply Molykote EM30L grease to the sliding
parts of the drop knob and spring plate
Small amount
1
Torque
0.78 – 1.18 N
−
m
1 3
2
Retaining ring E2 Retaining
ring E2
*Inside
*Outside view
2 1
Retaining ring E2
4
Screw, Bind
M3X4
Color; Silver
2
Drop assy. assembly
1. Attach retaining ring E3 to the vertical feed shaft 1.
2. Attach the vertical feed shaft assy. 1, polyester slider 2, set screw collar
3, vertical lever 4 and spring to the vertical supporting plate 5,
and attach retaining ring E3.
3. Hand start screw 1 in the set screw collar 3.
(Fully tighten after 3 - 71 "11. Lower shaft B assy. attachment.")
4. Apply 1 – 2 drops of Sewing Lube to the vertical feed shaft assy. 1.
Start movie clip (CD-ROM version only)
Lubricate the vertical feed shaft with sewing lube. 1 – 2 drops
1
Torque
Hand start
S18
2
3
Retaining
ring E3
Retaining
ring E3
S18
1
1
4
5
S18
Set Screw, Socket (CP
)
M4X4
Color; Black
11
5.7
SPRING
XC2550***
