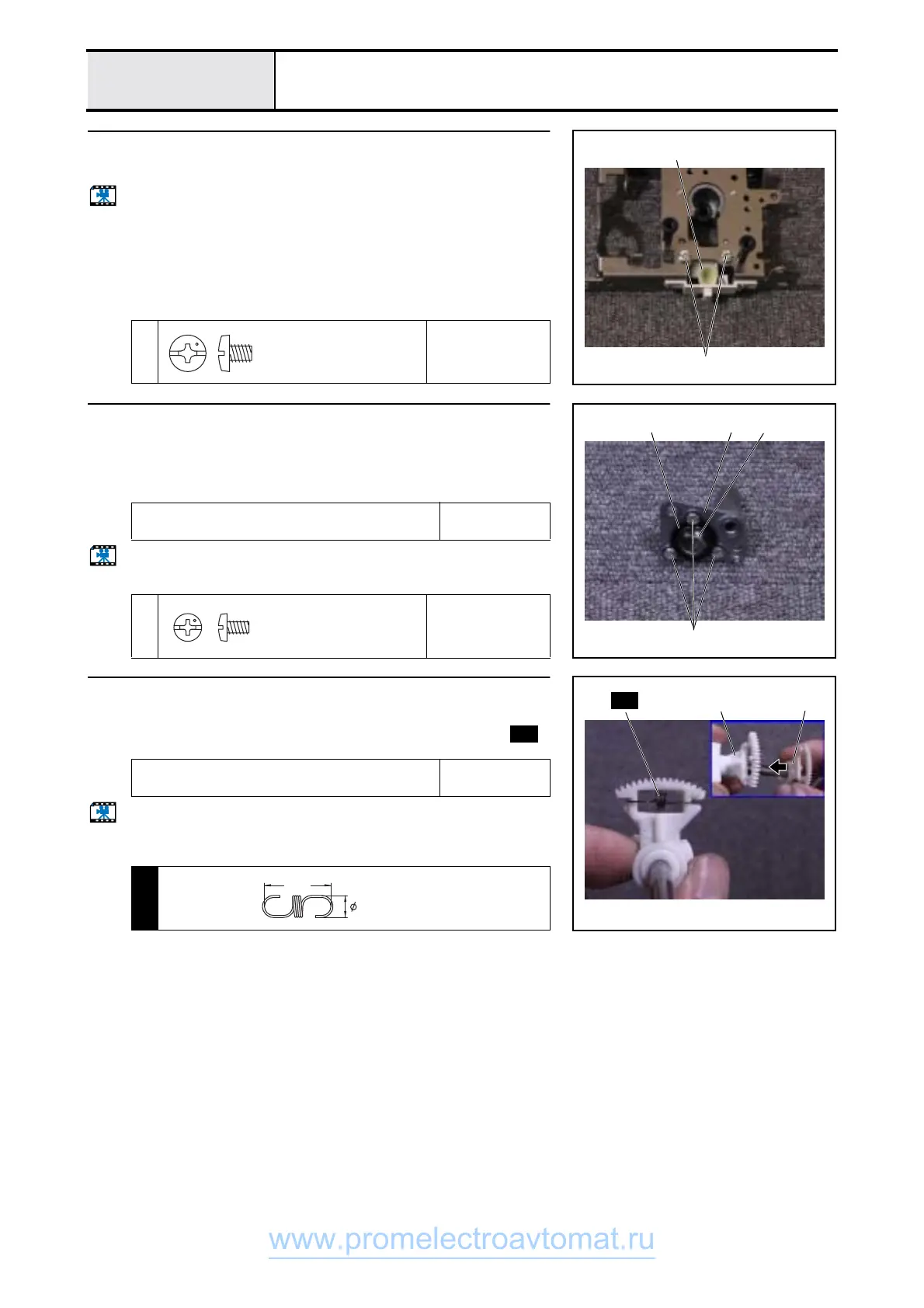

3 - 66
Feed module
Modules
3
Drop assy. attachment
1. Attach the drop assy. 1 using screws 1 (two).
Start movie clip (CD-ROM version only)
1
Torque
1.18 – 1.57 N
−
m
1
1
Screw, Bind
M4X5
Color; Silver
4
Bushing supporter assy. assembly
1. Attach the lower shaft bushing 1 and lower shaft bushing presser B 2 to
the bushing supporter assy. 3 using screw 1.
2. Lubricate the lower shaft bushing 1 with 1 – 2 drops of turbine oil #100.
Start movie clip (CD-ROM version only)
Lubricate the round surface of the lower shaft
bushing with turbine oil #100
1 – 2 drops
1
Torque
0.78 – 1.18 N
−
m
32
1
1
Screw, Bind
M3X5
Color; Silver
5
Feed adjuster assembly
1. Apply a small amount of Epnoc Grease AP to the F gear 1.
2. Align the F gear 1 and the feed adjuster assy. 2 and attach spring .
Start movie clip (CD-ROM version only)
Apply Epnoc Grease AP to the entire operating
surface of the feed adjuster assy. F gear
Small amount
S13
1
S13
2
S13
15.1
5
SPRING
XC2530***
