3 - 67
Feed module
Modules
Assembly
6

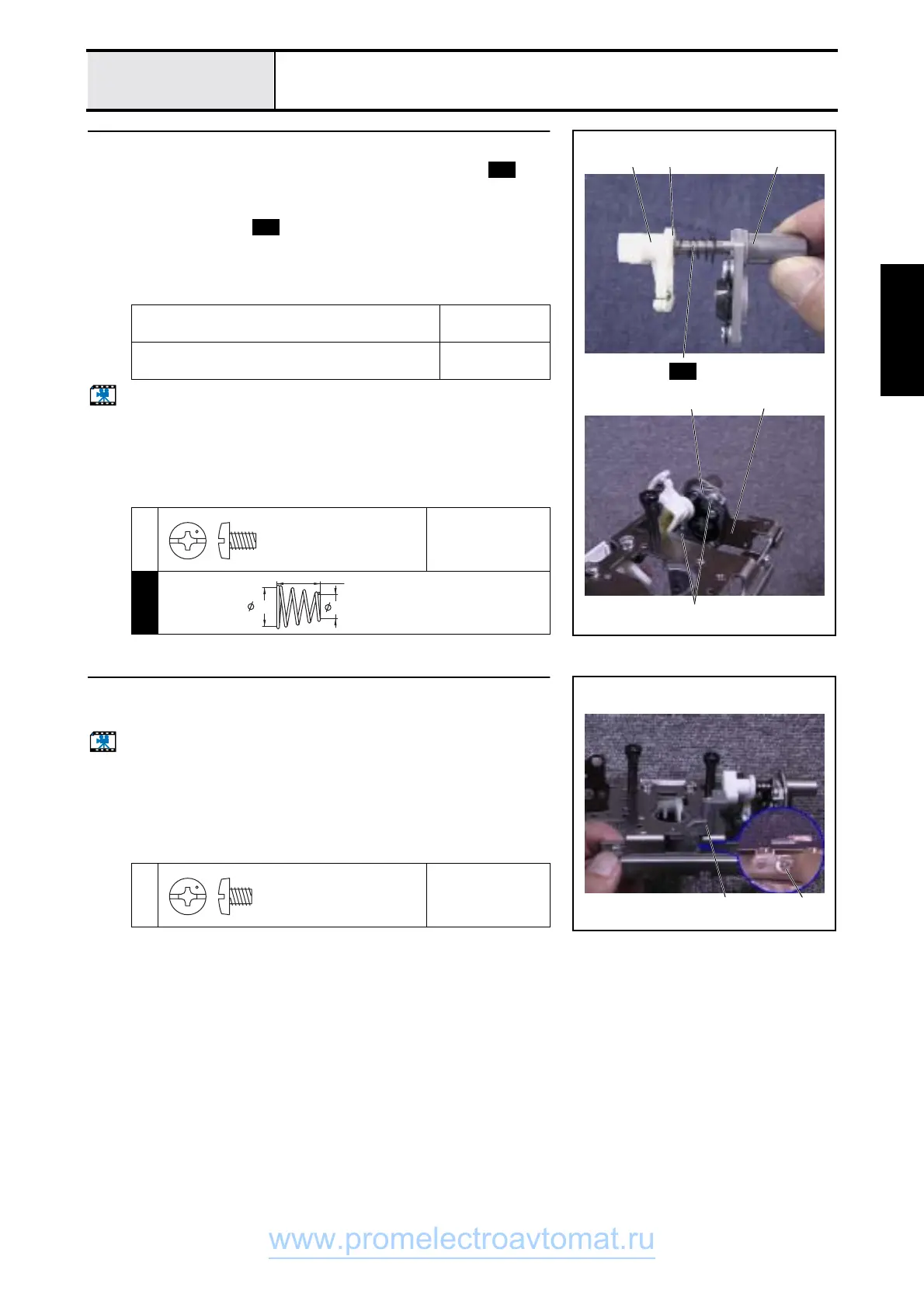

Feed adjuster assy. attachment
1. Attach the feed adjuster assy. 1, polyester slider 2 and spring to the
bushing supporter assy. 3.
*Key point
• Attach spring to the feed adjuster assy. 2 starting with
the side having the smaller spring diameter.
2. Attach the bushing supporter assy. 3 and feed adjuster assy. 2 to the feed
base 4 using screws 1 (two).
Start movie clip (CD-ROM version only)
Lubricate the feed adjuster assembly shaft with
turbine oil #100
1 – 2 drops
Apply Epnoc Grease AP to the entire operating
part of the feed adjuster assy. feed regulator.
Small amount
1
Torque
1.18 – 1.57 N
−
m
S14
3
S14
43
1
1
2
S14
S14
Screw, Bind
M4X6
Color; Silver
SPRING
XC2531***
8.8
9.9
5.5
7
Stopper plate block assy. attachment
1. Attach the stopper plate block assy. 1 using screw 1.
Start movie clip (CD-ROM version only)
1
Torque
1.18 – 1.57 N
−
m
1 1
Screw, Bind
M4X5
Color; Silver
