3 - 68
Feed module
Modules
8

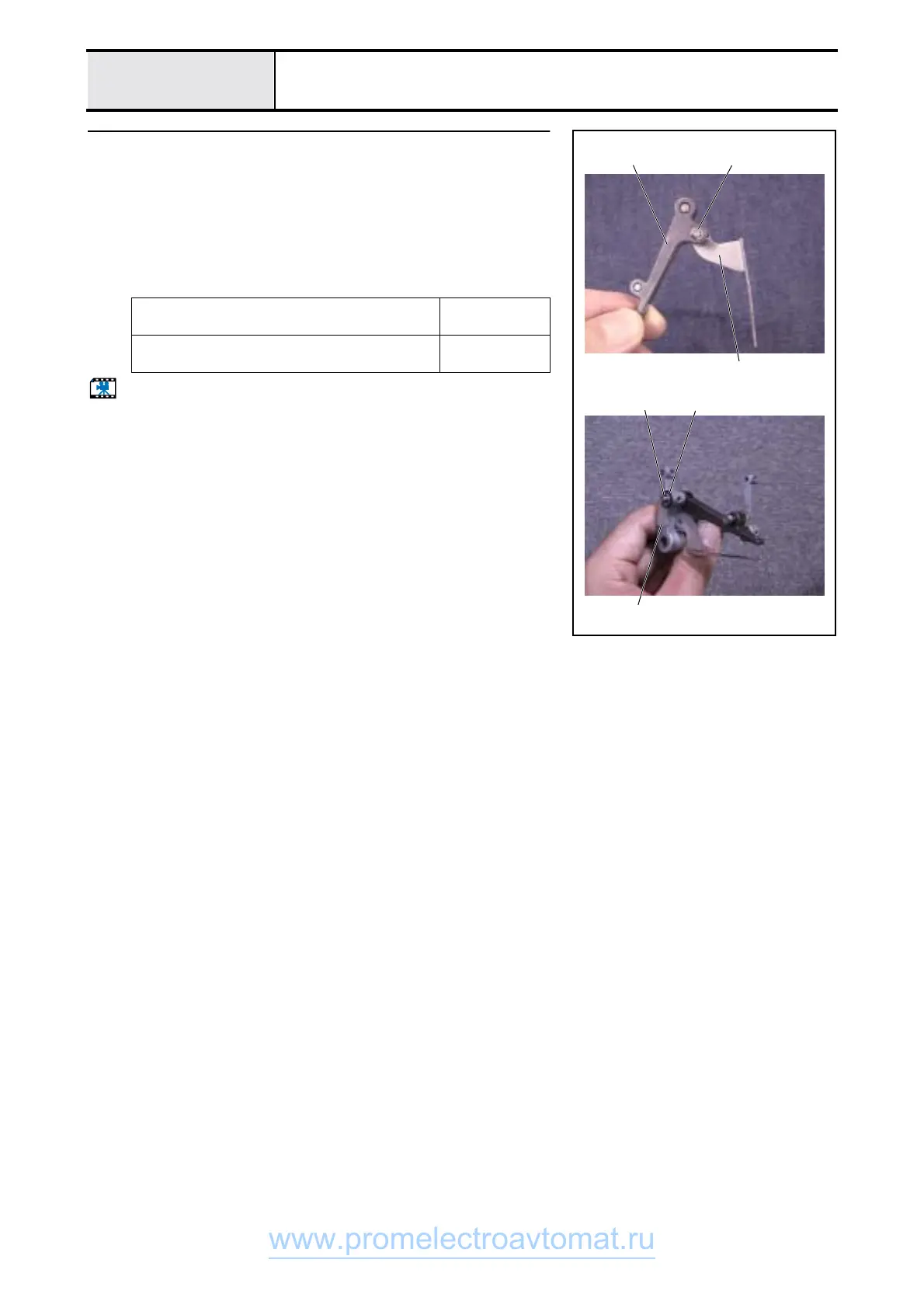

Feed arm assy. assembly
1. Attach the feed arm B assy. 1 to the feed supporting plate assy. 2, and
attach retaining ring E2.
2. Lubricate the feed supporting plate assy. 2 shaft with 1 – 2 drops of
turbine oil #100.
3. Attach the feed arm B assy. 1 and polyester slider 3 to feed arm A 4,
and attach retaining ring E3.
4. Lubricate the feed arm B assy. 1 with 1 – 2 drops of turbine oil #100.
Start movie clip (CD-ROM version only)
Lubricate the feed supporting plate assy. shaft
with turbine oil #100
1 – 2 drops
Lubricate the feed arm B assy. with turbine oil
#100
1 – 2 drops
1
Retaining ring E2
2
4
3
Retaining ring E3
