3 - 69
Feed module
Modules
Assembly
9

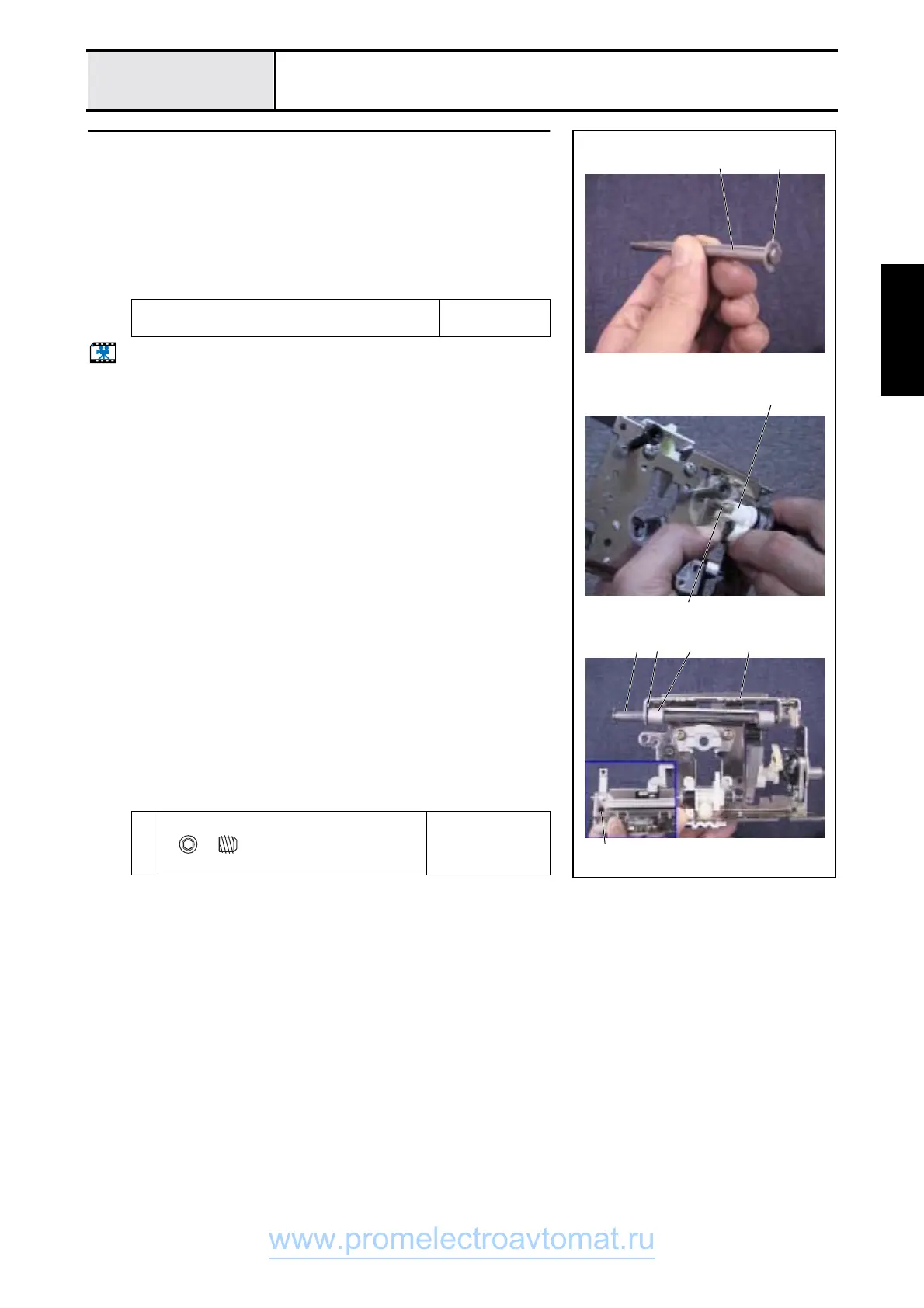

Feed arm assembly attachment
1. Attach retaining ring E5 to the horizontal feed shaft 1.
2. Align the feed arm B assy. feed regulator slide shaft 2 with the square
hole 3 in the feed adjuster assy.
3. Align the feed arm assy. 5 with the feed base 4, and attach the horizontal
feed shaft assembly 1 and polyester slider 6.
4. Install screw 1.
5. Apply 1 – 2 drops of Sewing Lube to the horizontal feed shaft 1.
Start movie clip (CD-ROM version only)
Lubricate the three operating areas of the
horizontal feed shaft with Sewing Lube
1 – 2 drops each
1
Torque
1.18 – 1.57 N
−
m
3
1
2
5
1
Retaining ring E5
46
1
*Bottom
Set Screw, Socket (CP
M4X4
Color; Black
