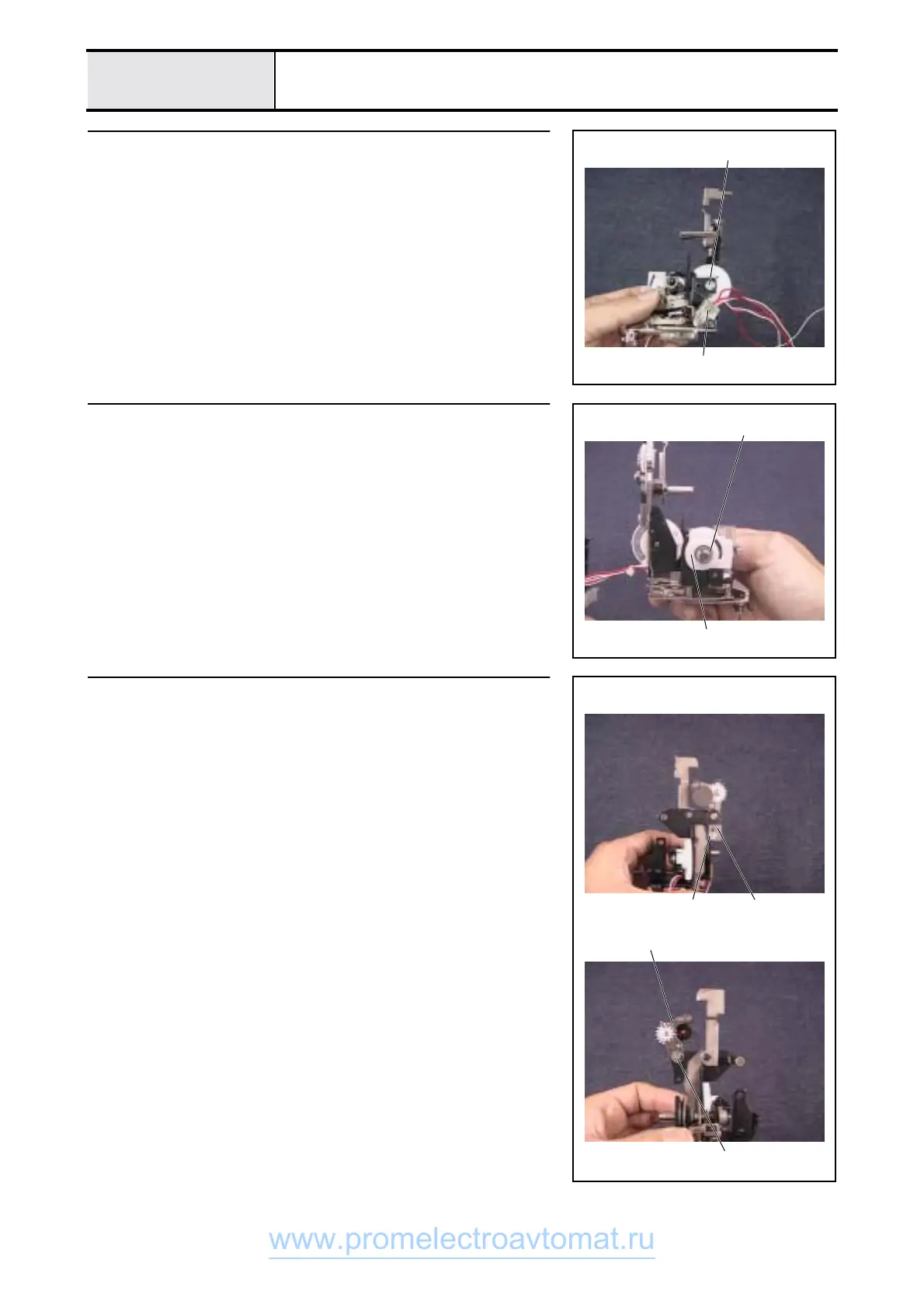

Thread tension mechanism
Main unit
1
LED lamp removal.
1. Remove screw 1, and remove LED lamp holder L 1 and the LED lamp L
assy. 2.
1
,
2
1
2
Thread take up spring removal
1. Remove retaining ring E4, and remove the thread take-up spring cover 1
and thread take-up spring.
1
Retaining ring E4
3
Damper holder assy. removal
1. Remove screw 1, and remove the damper holder spring 1.
2. Remove retaining ring E3, and remove the damper holder assy. 2.
1 1
2
Retaining ring E3
