Brother CS8000 Series - Timing Belt Tension Adjustment

4 - 7
Adjustment (Main Unit)
Inspection and
Adjustment

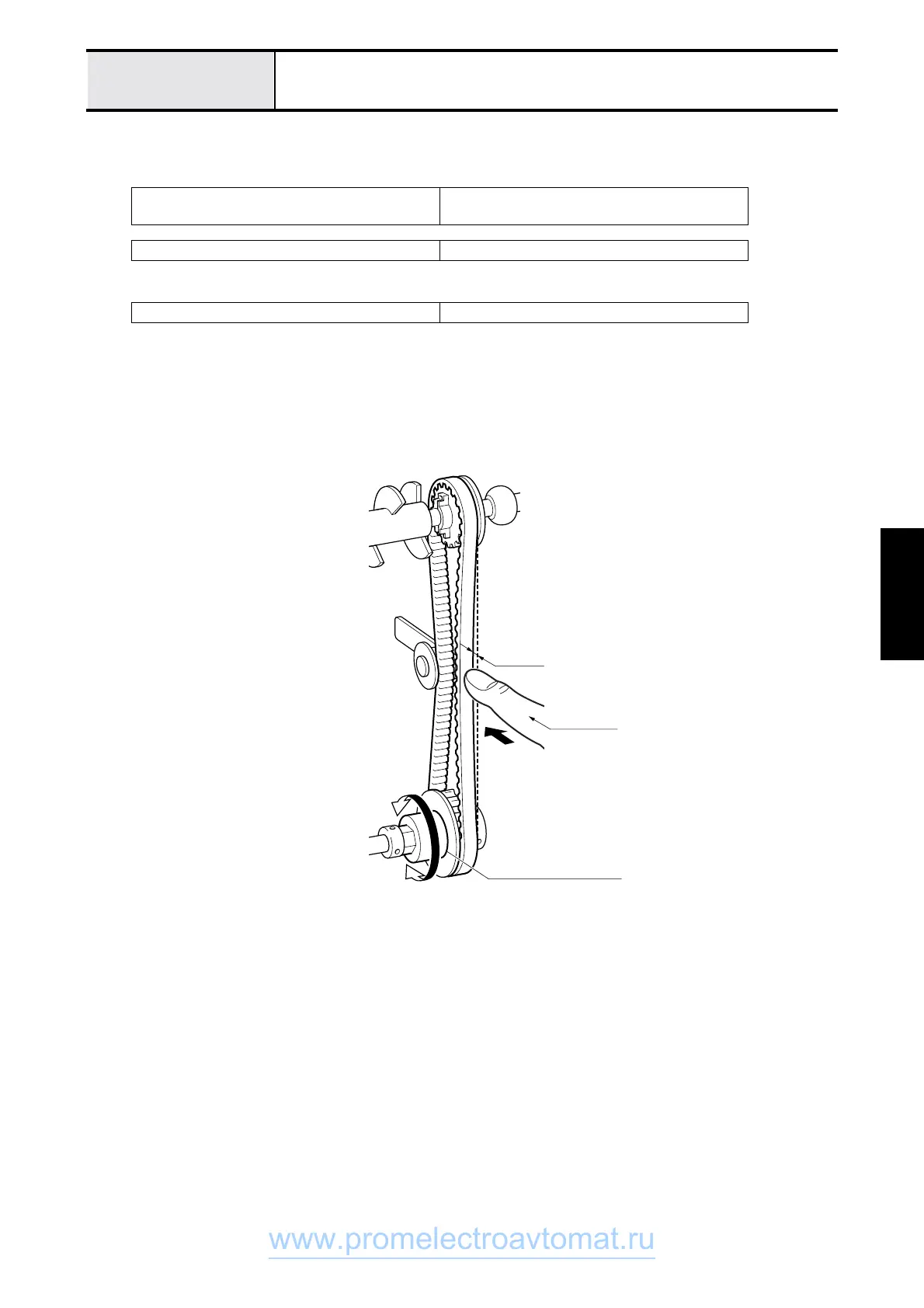

Timing belt tension adjustment
1. Remove giza tites (two), and remove the lower shaft bushing presser.
2. Turn the lower shaft bushing, and adjust the timing belt tension.
3. While holding lower shaft A to the left, attach the lower shaft bushing presser using giza tites 5X16 (two).
Timing belt deflection when a force of 2 N (200 g)
is applied to the center of the timing belt
4 – 5 mm
XC2277001 Push-pull gauge (3 N)
Giza tite 5X16
torque: 1.18 - 1.57 N-m
4 - 5mm
2N (200g)
Lower shaft bushing
