Brother CS8000 Series User Manual

3 - 44

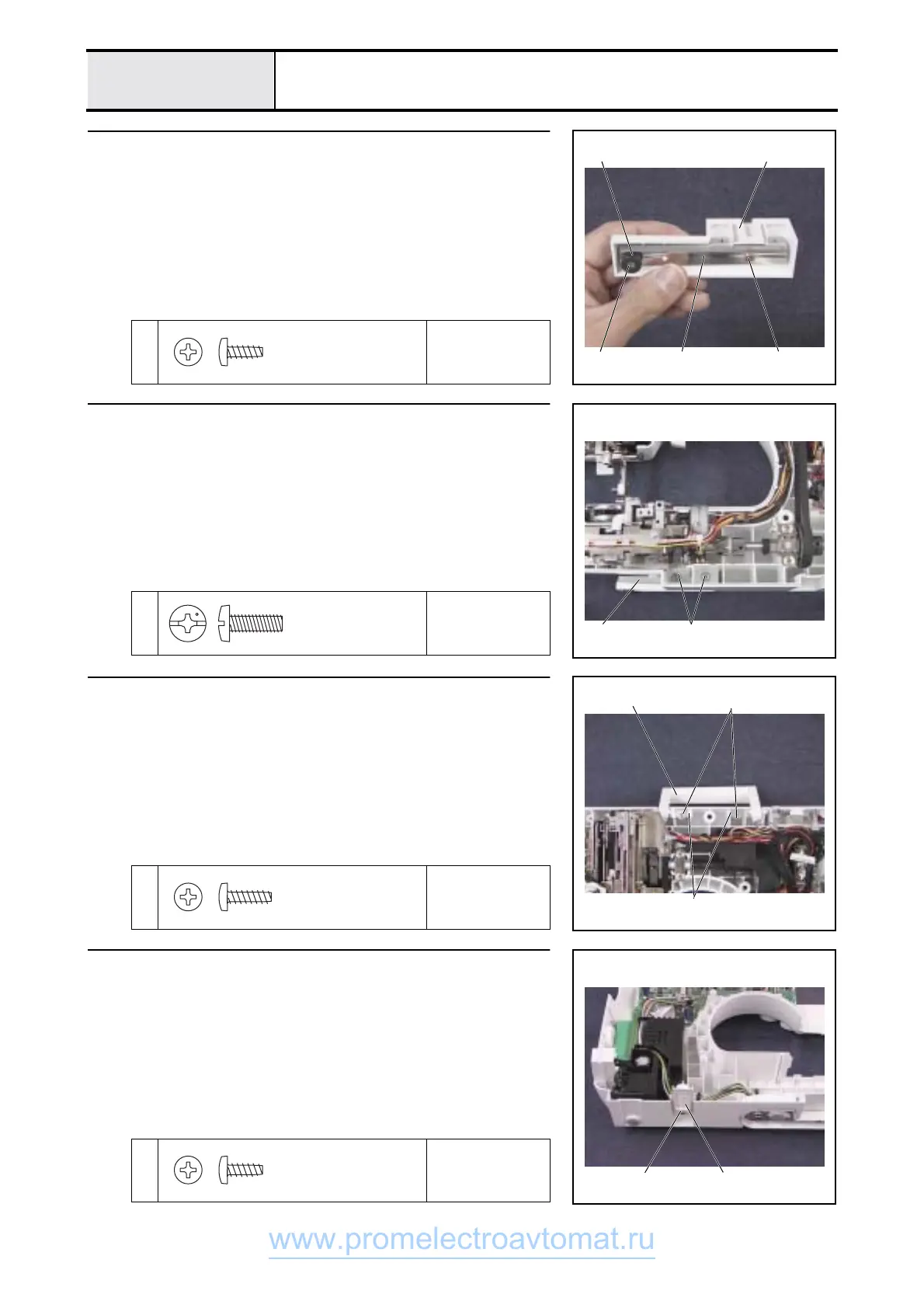

Main parts
Main unit
1
Base cover B assy. assembly
1. Attach the base plate rubber 1 and adjusting screw 2 to base plate B 3.
2. Attach base plate B 3 to base cover B 4 using screw 1.
1
Torque
0.57 - 0.78 N-m
1
3 1
4
2
Taptite, Bind B
M3X8
Color; Gold
2
Base cover B assy. attachment
1. Attach the base cover B assy. 1 to the arm bed using screws 1 (two).
1
Torque
0.78 – 1.18 N-m
11
Screw, Bind
M4X12
Color; Silver
3
Handle attachment
1. Attach the handle fixed plates 1 (two) and handle 2 to the arm bed using
screws 1 (two).
1
Torque
0.57 - 0.78 N-m
1
2
1
Taptite, Bind B
M3X10
Color; Gold
4
Base cover attachment
1. Attach the base cover 1 to the front cover using screw 1.
1
Torque
0.57 - 0.78 N-m
11
Taptite, Bind B
M3X8
Color; Gold
