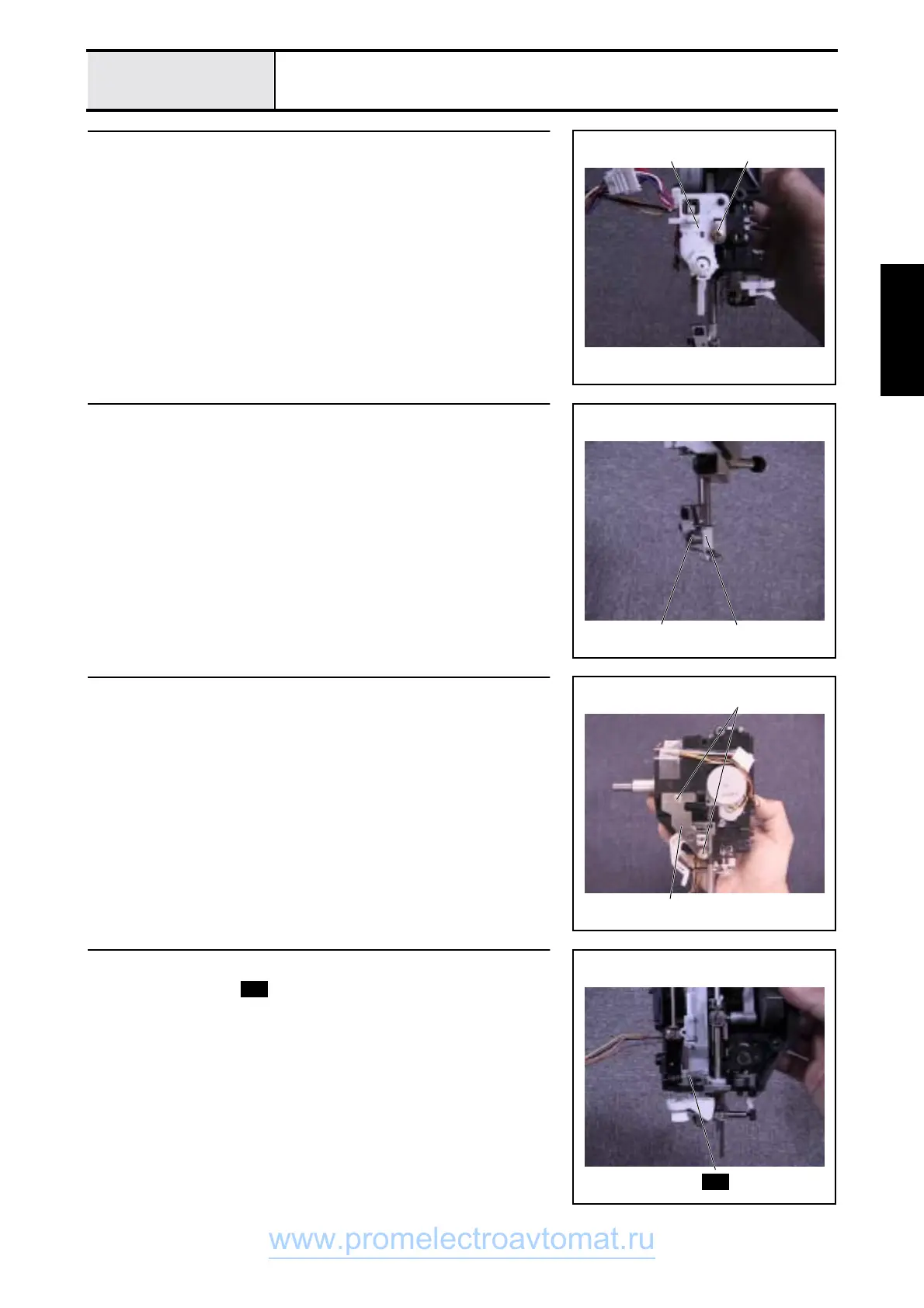

Needle-presser module
Modules
Disassembly
1
BH switch assy. removal
1. Remove screw 1, and detach the BH switch assy. 1.
1 1
2
Presser feed holder assy. removal
1. Remove screw 1, and detach the presser feed holder assy. 1.
11
3
Adjusting plate assy. removal
1. Remove screws 1 (two), and remove the adjusting plate assy. 1.
1
1
4
Spring-Z removal
1. Remove the spring .
S20
