2 - 38

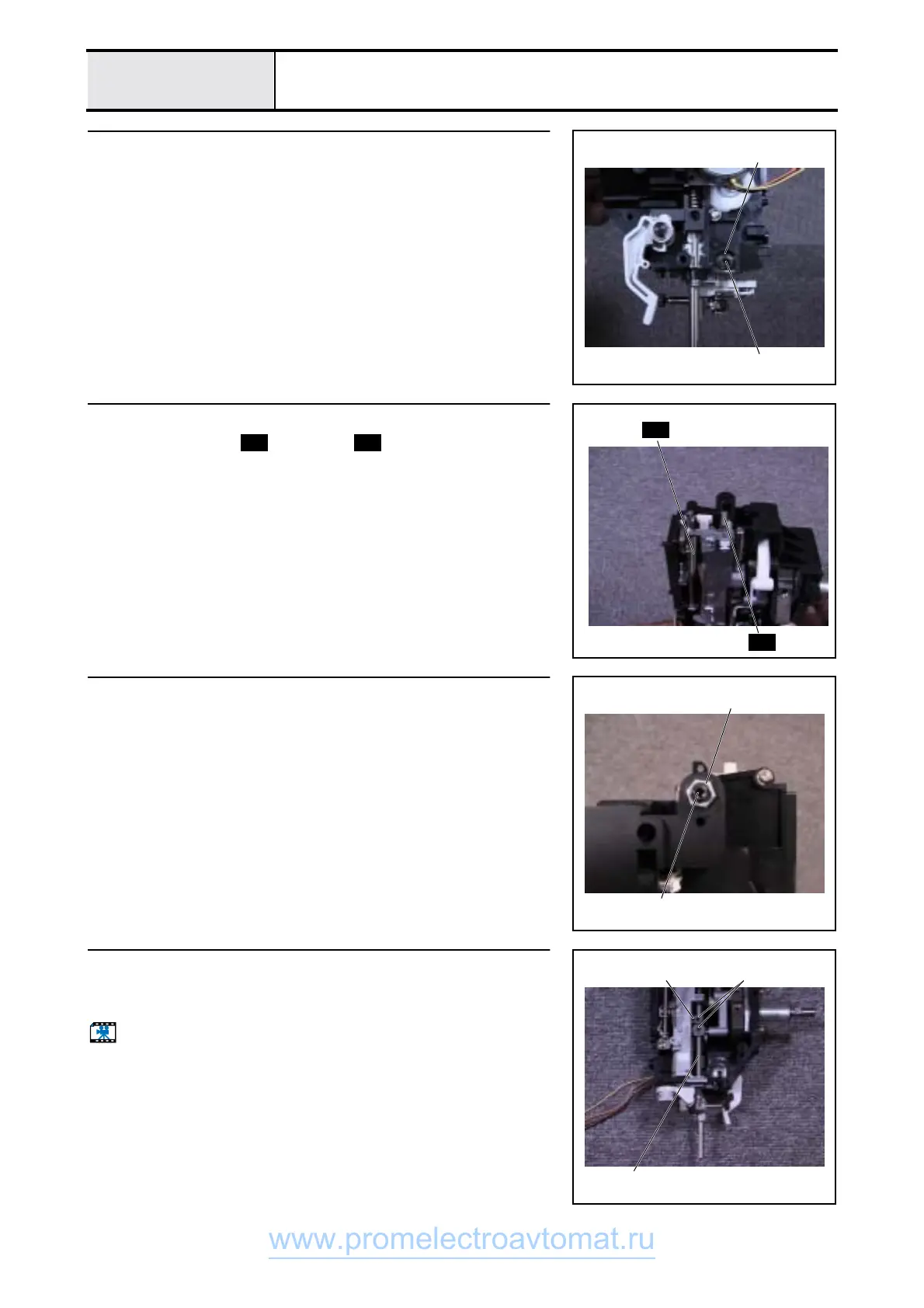

Needle-presser module
Modules
5
Zigzag adjusting nut removal
1. Remove screw 1, and remove the zigzag adjusting nut 1.
1
1
6
Lever A spring and spring removal
1. Remove the spring and the spring .
S09
S10
S09 S10
7
Lock nut removal
1. Remove the lock nut 1 and screw 1.
1
1
8
Needle bar assy. removal
1. Remove screws 1 (two).
2. Remove needle bar 1 and needle thread block 2.
Start movie clip (CD-ROM version only)
2 1
1
