3 - 36
Front cover
Main unit
1

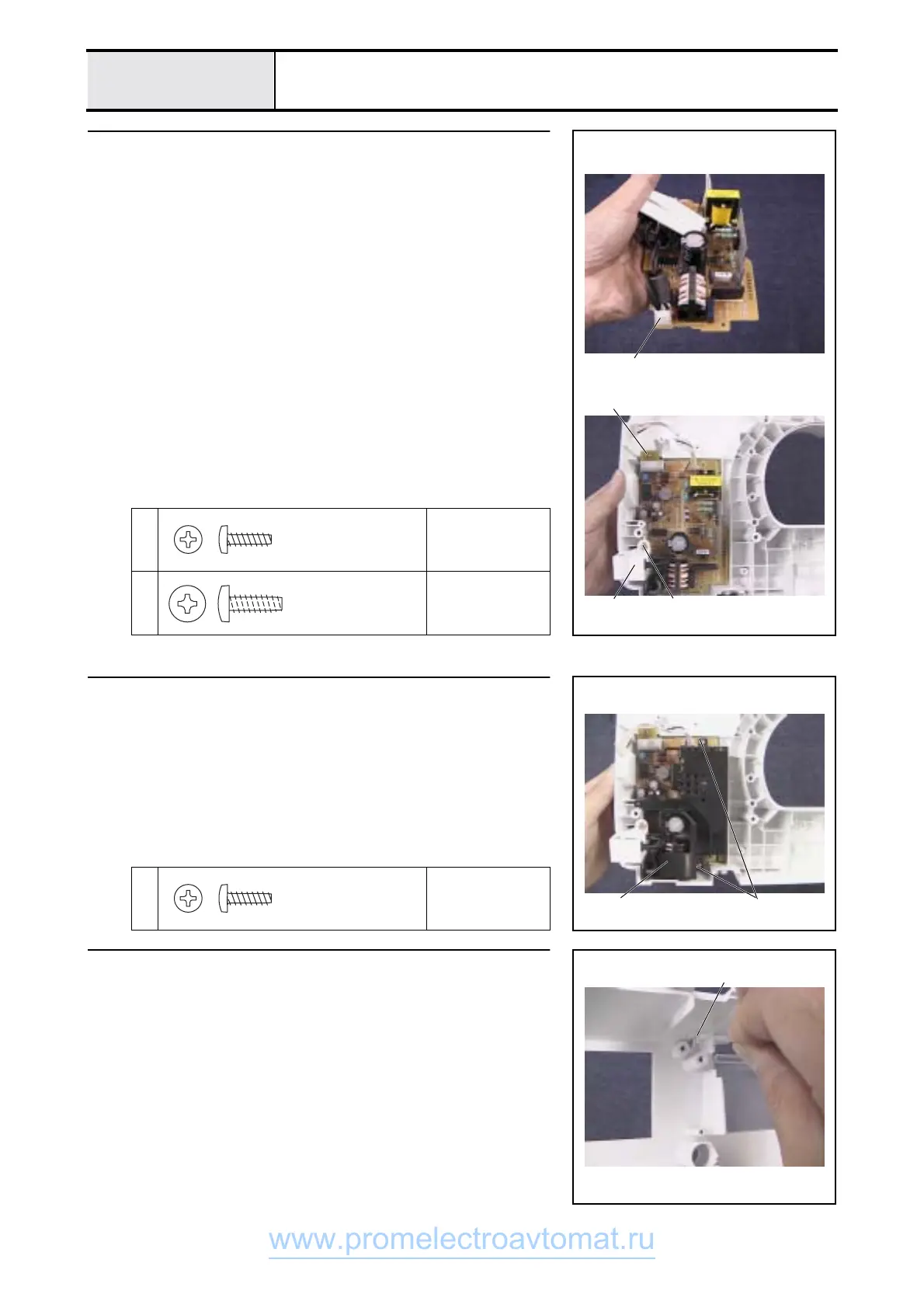

Power PCB assy. attachment
1. Attach the inlet assy. connector 1 to the power PCB assy.
2. Attach the power PCB assy. to the front cover using screw 1.
3. Attach the inlet assy. 2 to the front cover using screw 2.
1
Torque
0.57 - 0.78 N-m
2
Torque
0.78 - 1.18 N-m
1
1
22
Taptite, Bind B
M3X10
Color; Gold
Giza Tite
4X12
Color; Gold
2
Break cover attachment
1. Attach the break cover 1 using screws 1 (two).
1
Torque
0.57 - 0.78 N-m
11
Taptite, Bind B
M3X10
Color; Gold
3
LED cover attachment
1. Attach the LED cover 1 to the front cover.
1
