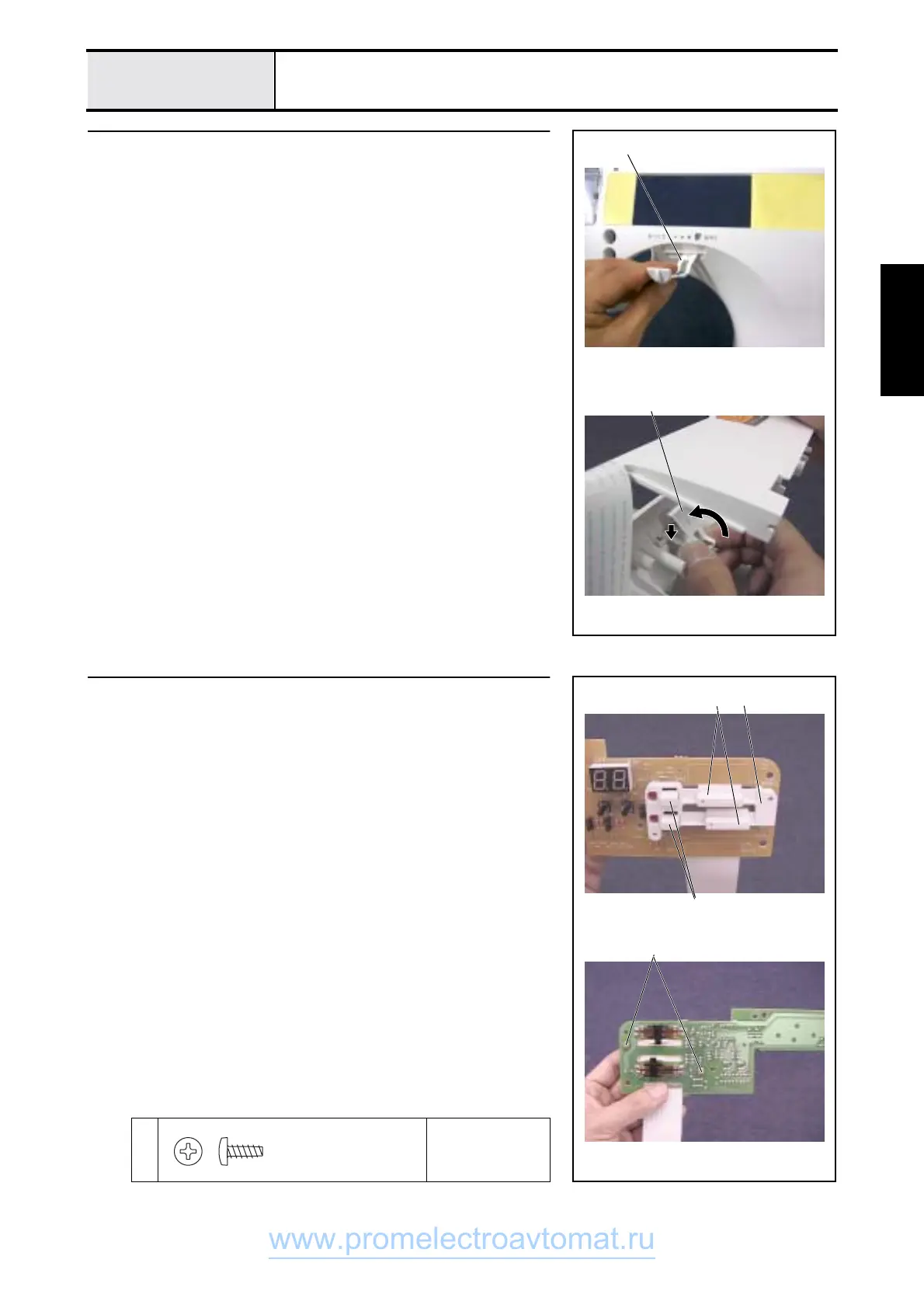

3 - 37
Front cover
Main unit
Assembly
4
SV key top attachment
1. Attach the SV key top 1 to the front cover.
*Key point
Insert the SV key top from the back of the front cover, fold it in
two behind the front cover, and lock the hook.
1
1
5
PCB assy : operation S2. assembly (S2 only)
1. Attach the VR holder 1, SV key tops 2 (two) and SW buttons 3 (two) to
the PCB assy : operation S2. using screws 1 (two).
*Key point
Align the position of the SV key tops with VR1 and VR2 on the
PCB assy : operation S2.
1
Torque
0.57 - 0.78 N-m
1
3
2
1
Taptite, Bind B
M3X8
Color; Gold
