Front cover
Main unit
6
PCB assy : operation S2. attachment (S2 only)

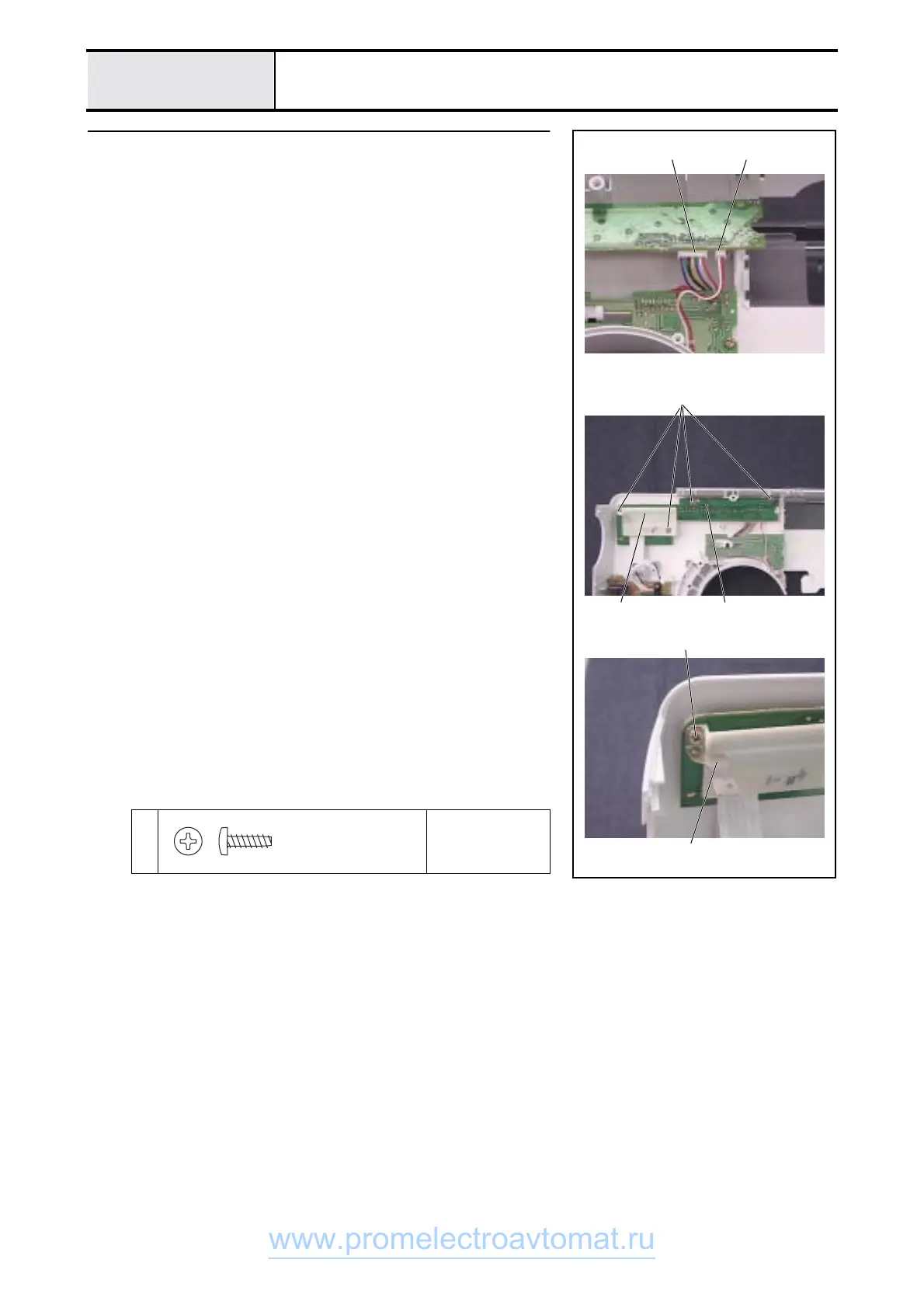

1. Connect the LED PCB-SR assy. connector 1 and the SSVR PCB assy.
connector 2 to the PCB assy : operation S2.
2. Attach the PCB assy : operation S2. 3, Board pressers (two), the PCB
cover 4 and front cover fixed plate 5 to the front cover using screws 1
(four).
1
Torque
0.57 - 0.78 N-m
2
1
1
3
5
4
1
Taptite, Bind B
M3X10
Color; Gold
