Brother CS8000 Series User Manual

2 - 21
Upper shaft mechanism
Main unit
Disassembly
5

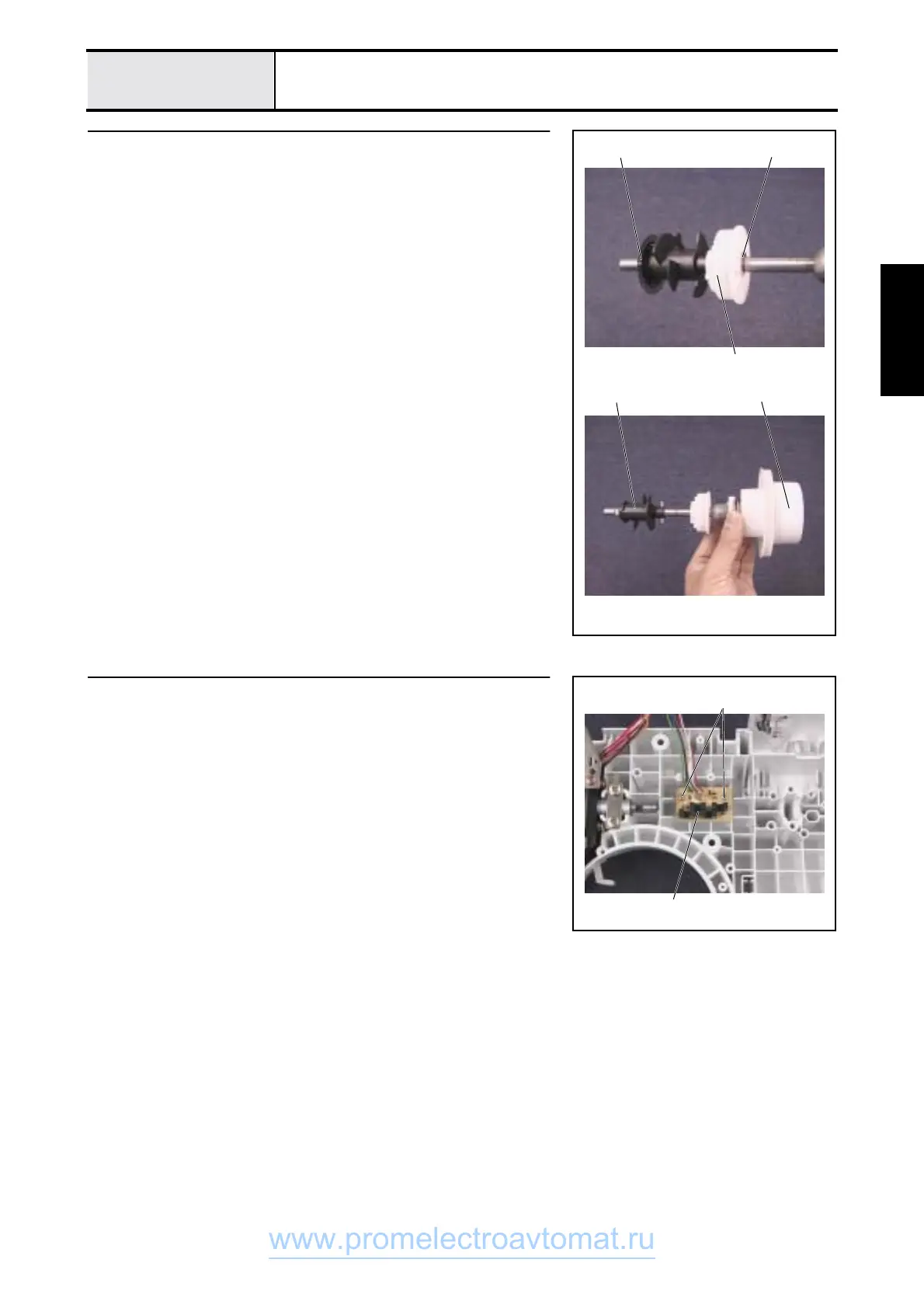

Upper shaft assy. disassembly
1. Remove the speed shutter 1.
2. Remove retaining ring E6, and move the upper shaft pulley 2 to the right
side.
3. Remove the timing shutter 3.
4. Remove the pulley 4.
1
2
Retaining ring E6
34
6
NP PCB assy. removal
1. Remove screws 1 (two), and remove the NP PCB assy. 1.
1
1
