2 - 22
Upper shaft mechanism
Main unit
7

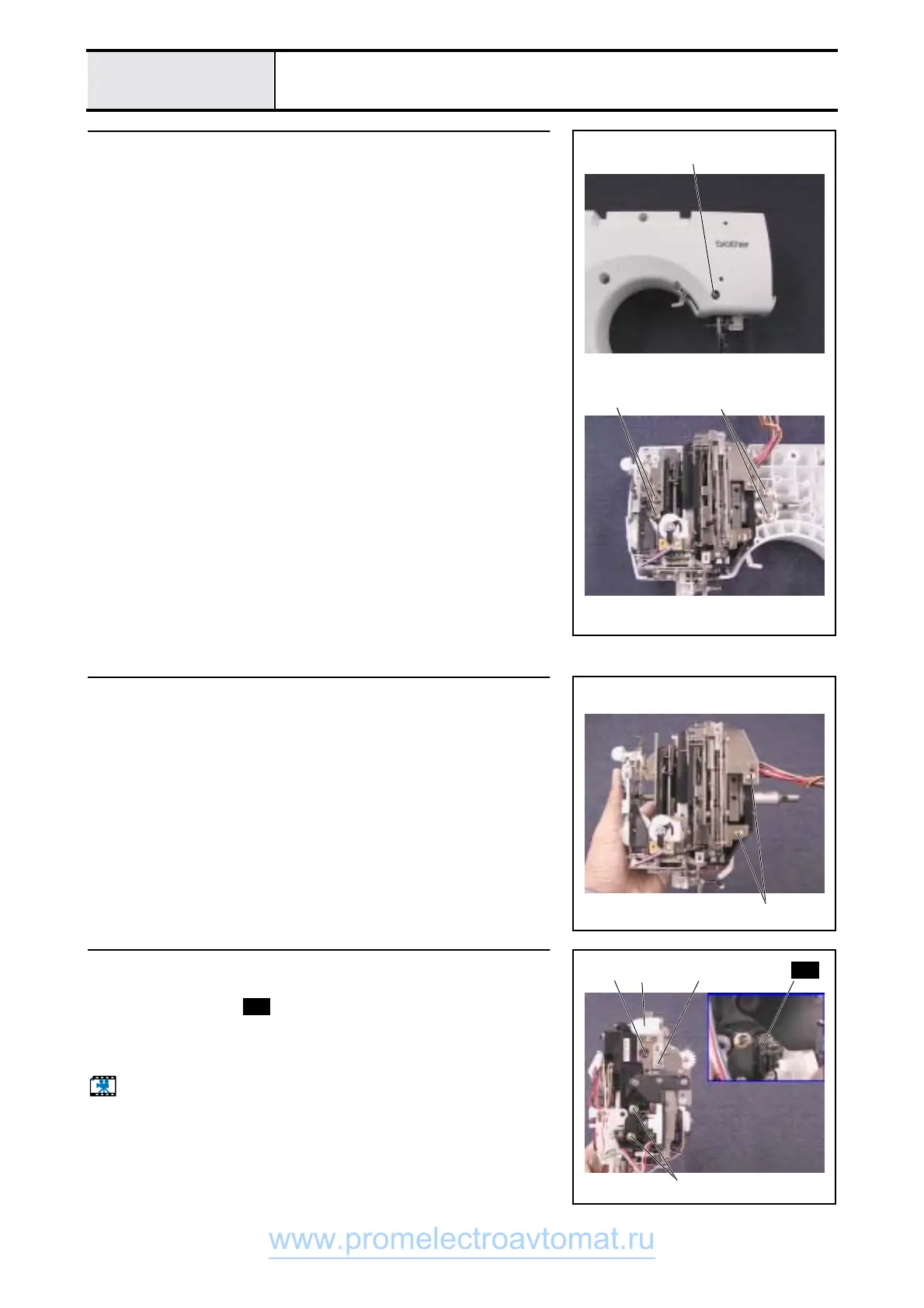

Needle-presser module removal
1. Remove screw 1.
2. Remove screws 2 (four), and remove the presser plate and the upper shaft
bushing presser.
3. Remove the needle-presser module.
1
22
8
Thread hook assy. removal
1. Remove screws 1 (two), and remove the thread hook assy.
1
9
Thread unit removal
1. Remove the cassette release button 1.
2. Remove the Spring .
3. Remove screw 1, and remove the presser plate spring.
4. Remove screw 2, and remove the cassette guide plate.
5. Remove screws 3 (two), and remove the thread unit.
Start movie clip (CD-ROM version only)
21
3
1
Front
S39
S39
