Upper shaft mechanism
Main unit
Disassembly
10

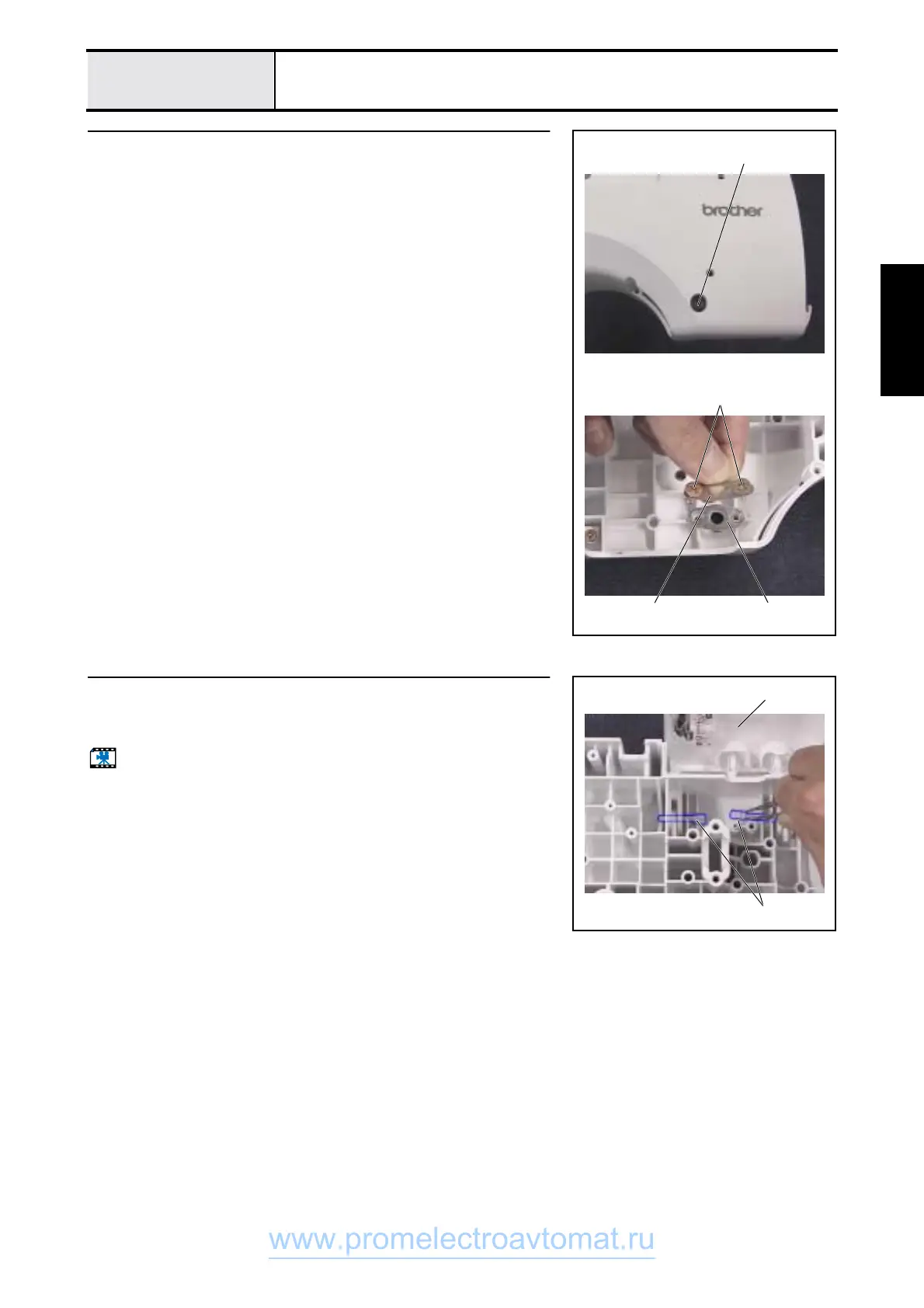

Adjusting plate removal
1. Remove arm cap.
2. Remove the adjusting screw 1.
3. Remove screws 1 (two), and remove the adjusting plate 2 and the plate
spring 3.
1
2
1
3
11
Bobbin winder cover assy. removal
1. Remove the shafts 1 (two) for the bobbin winder cover, and remove the
bobbin winder cover assy. 2.
Start movie clip (CD-ROM version only
1
2
