Front cover
Main unit
Disassembly
3

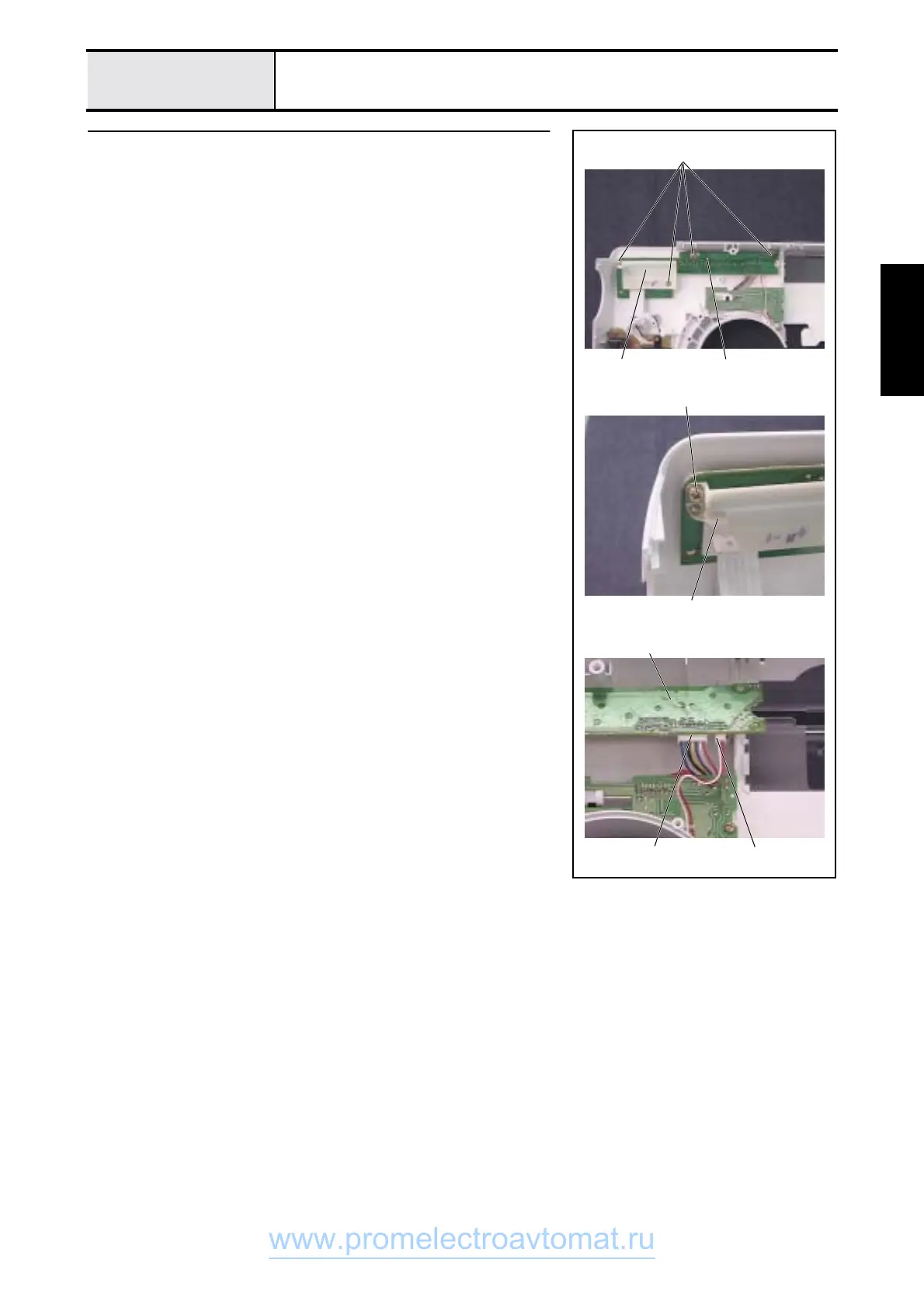

PCB assy : operation S2. removal (S2 only).
1. Remove screws 1 (four), and remove the front cover fixed plate 1, PCB
cover 2, Board pressers (two) and PCB assy : operation S2. 3.
2. Disconnect the LED PCB-SR assy. connector 4 and the SSVR PCB assy.
connector 5 from the PCB assy : operation S2. 3.
1
3
1
2
1
3
5 4
