2 - 11
Front cover
Main unit
Disassembly
5

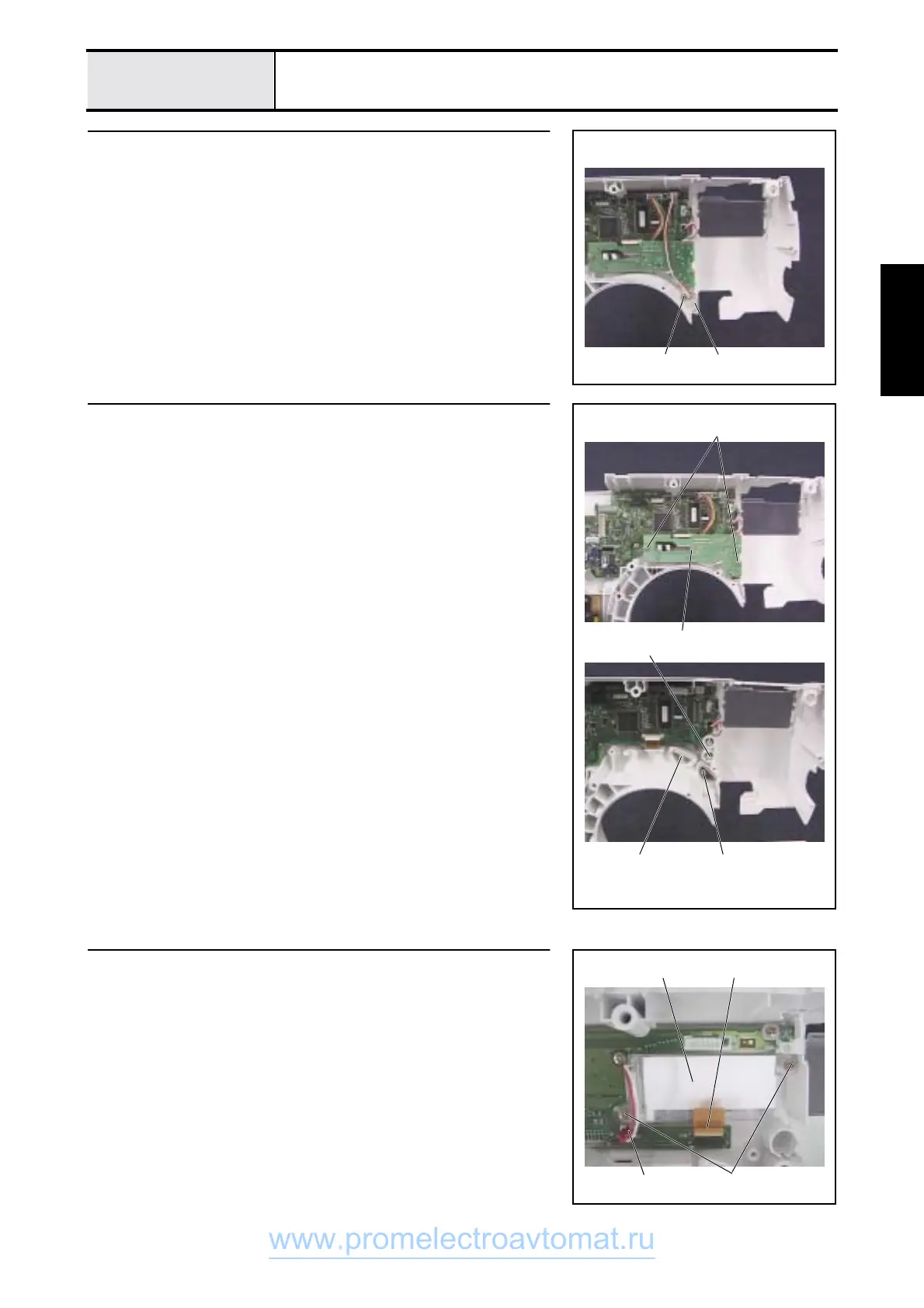

LED PCB-SR assy. removal
1. Remove the screw 1, and remove the LED PCB-SR assy. 1 and lamp
holder 2.
1
,
21
6
SSVR PCB assy. removal
1. Remove the screws 1 (two), and remove the SSVR PCB assy. 1, SS
button 2, backstitching button 3 and NP button 4.
1
1
4
23
7
Single light guide assy S3. assy. removal (S3 only)
1. Disconnect the back light lead wire connector 1 and Single light guide
assy S3. connector 2 from the PCB assy : operation S3.
2. Remove screws 1 (two), and remove the Single light guide assy S3. assy.
3, and PCB hold plate.
1
3
1
2
