2 - 13
Front cover
Main unit
Disassembly
11

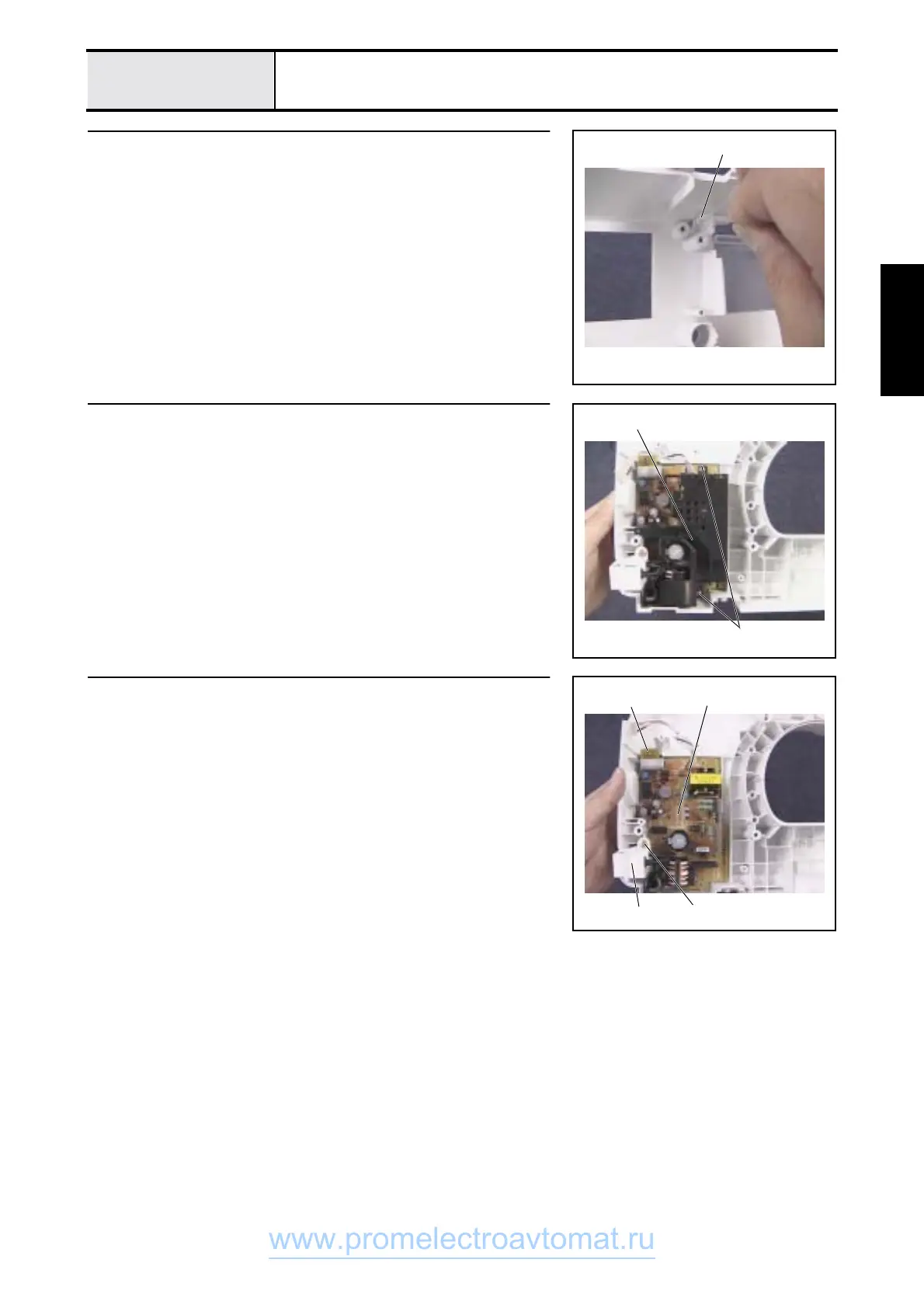

LED cover removal.
1. Remove the LED cover 1 from the front cover.
1
12
Break cover removal
1. Remove the screws 1 (two), and remove the break cover 1.
1
1
13
Power PCB assy. removal
1. Remove the screw 1, and detach the inlet assy. 1 from the front cover.
2. Remove the screw 2, and remove the power PCB assy. 1.
3. Disconnect the inlet assy. connector from the power PCB assy. 2.
2
1
2
1
