2 - 16
Rotary hook drive mechanism
Main unit
2

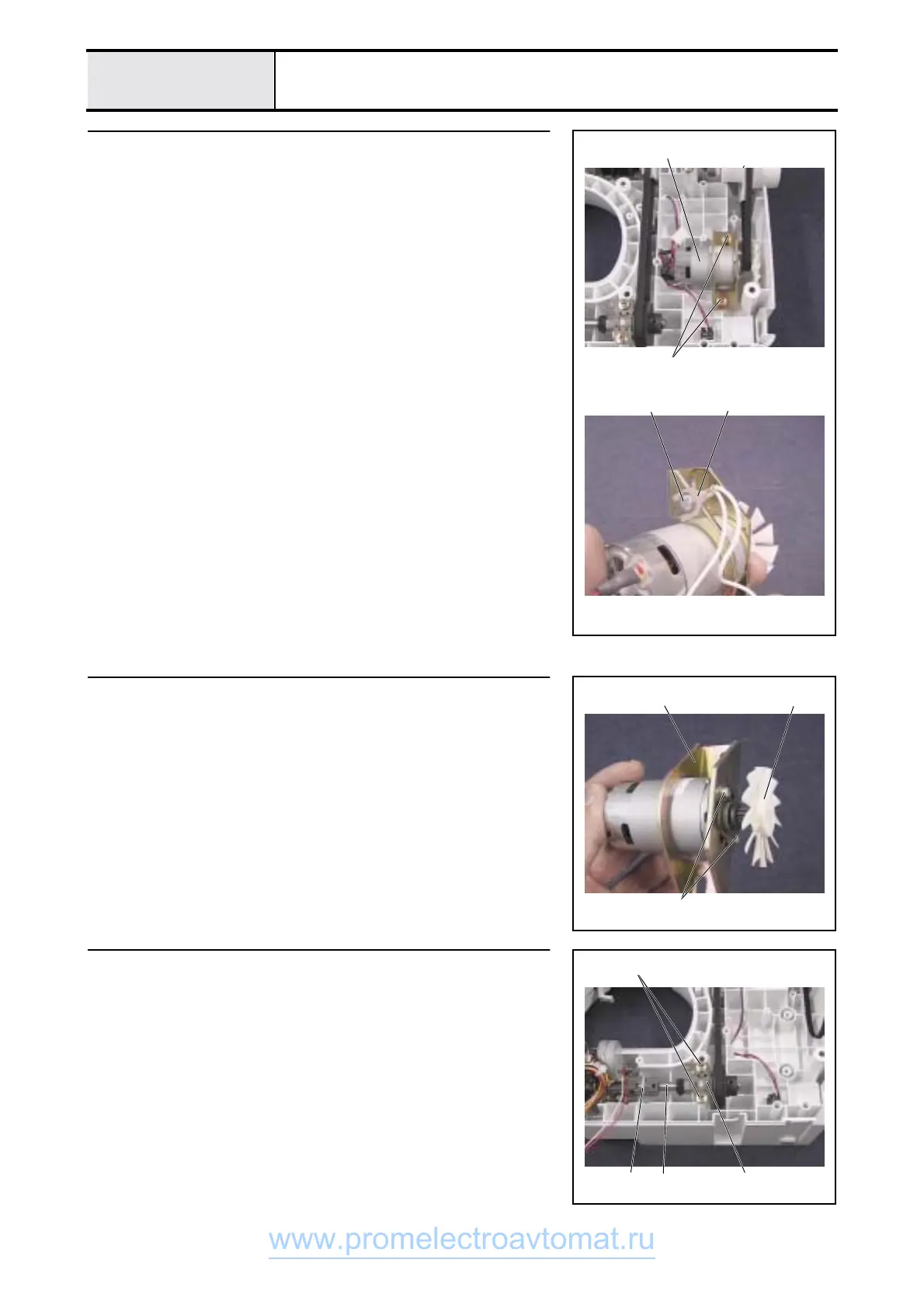

Main motor assembly removal
1. Remove the screws 1 (two), and remove the main motor assy. 1.
2. Remove screw 2, and remove the motor PCB assy. ground wire 2.
1
1
22
3
Main motor assembly disassembly
1. Remove motor fan 1.
2. Remove the screws 1 (two), and remove the main motor from the motor
holder 2.
2
1
1
4
Lower shaft A assy. removal
1. Remove the screws 1 (two), and remove the lower shaft bushing presser
1.
2. Remove the lower shaft A assy. 2 and the disk 3.
3
1
21
