Thread tension mechanism
Main unit
Disassembly
7

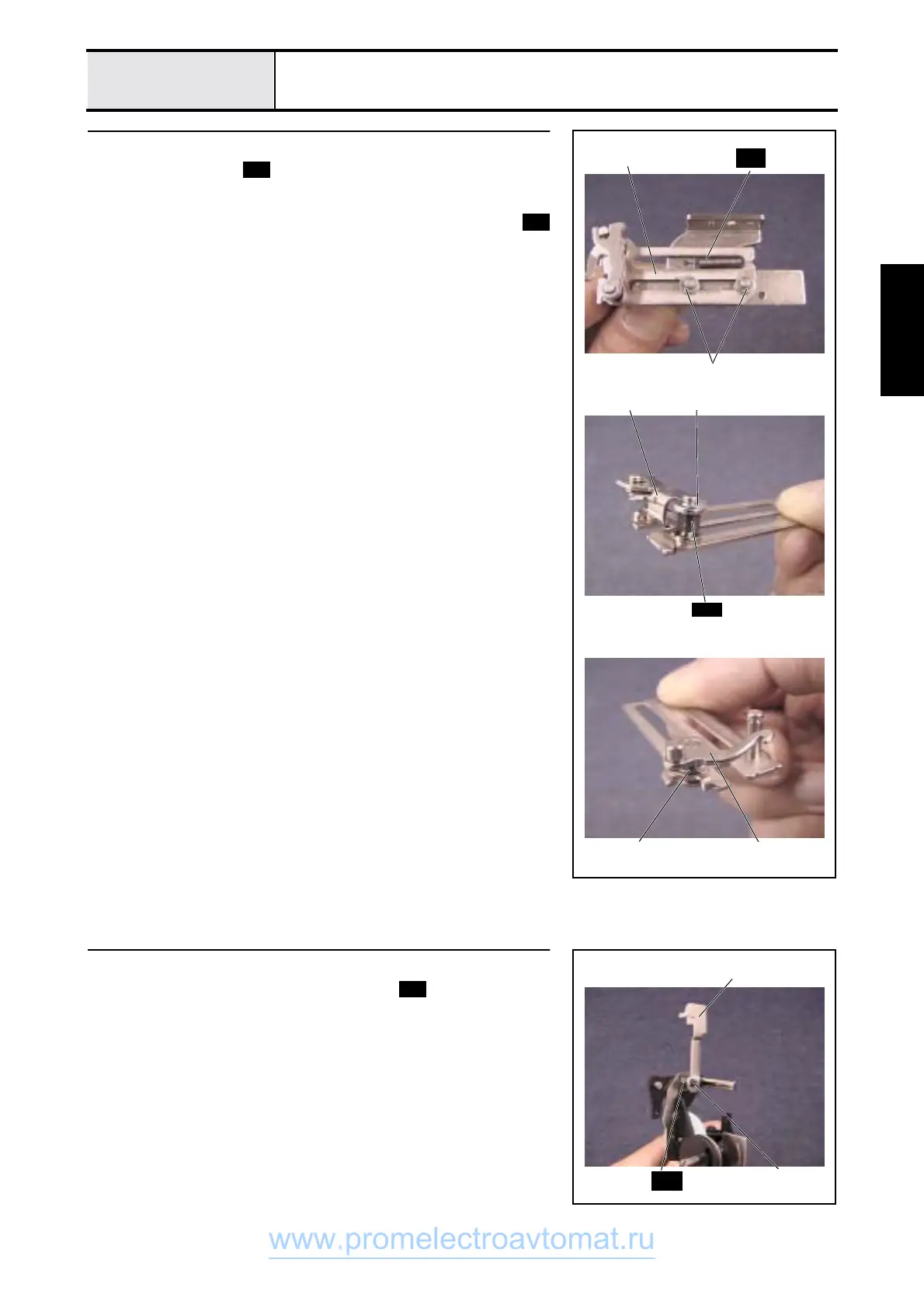

Thread hook assy. disassembly 2
1. Remove the Spring .
2. Remove retaining rings E2 (two), and remove the plain 3.5 washers (two),
slide plate assy. 1 and the plain S3 washers (two).
3. Remove retaining ring E2, and remove thread hook link A 2, spring
and the plain S3 washer.
4. Remove retaining ring E2, and remove the thread hook link B assy. 3 and
plain S3 washer.
1
S31
3
Retaining ring E2
Retaining ring E2
S30
Retaining ring E2
2
S31
S30
8
Cassette hold plate removal
1. Remove retaining ring E3, and remove spring and the cassette hold
plate 1.
S35
1
Retaining ring E3
S35
